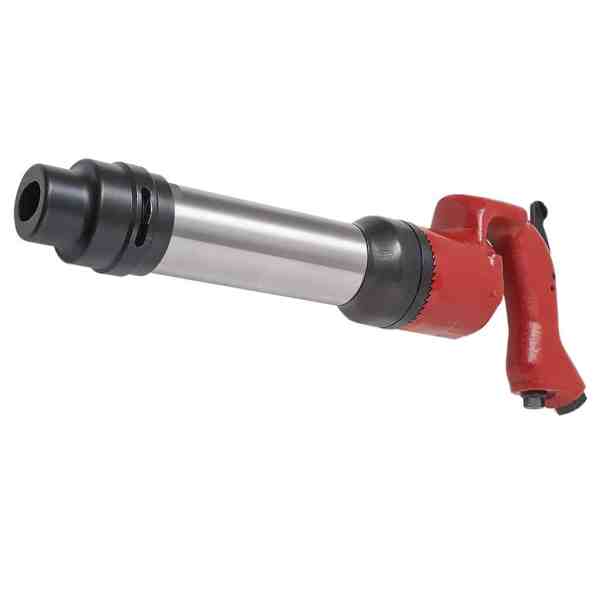

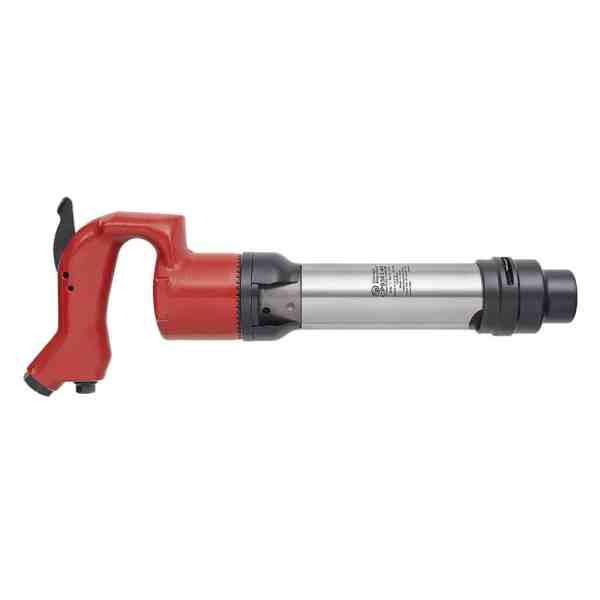

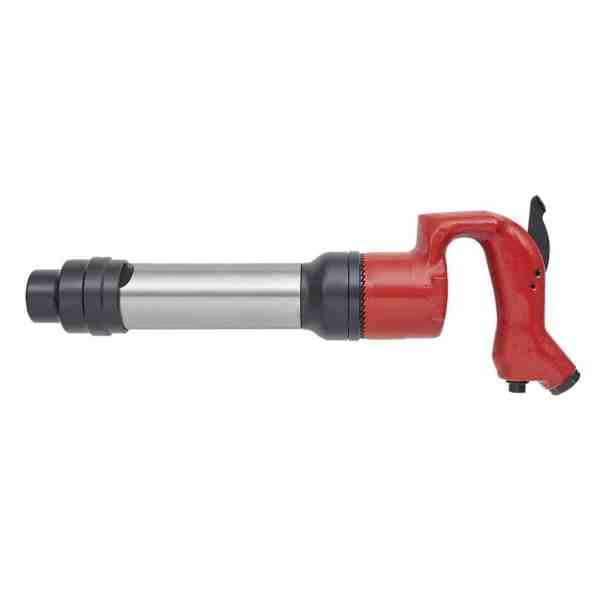

Chicago Pneumatic CP9363-4R CHIPPING HAMMER
Chicago Pneumatic CP9363-4R CHIPPING HAMMER
Chicago Pneumatic CP9363-4R CHIPPING HAMMER - Image 2
Chicago Pneumatic CP9363-4R CHIPPING HAMMER - Image 3
Chicago Pneumatic CP9363-4R CHIPPING HAMMER - Image 4

Chicago Pneumatic CP9363-4R CHIPPING HAMMER

Original price was: $1,034.03.Current price is: $713.48.

CP9363-4R – Durable and robust

SKU: 6151612090 Categories: , , Brand:

Description

CP9363-4R

Durable and robust

Benefits

  • Durability in demanding applications
  • Secure grip for maximum safety
  • Easy chisel replacement

    • Features

  • Robust and ergonomic gooseneck grip
  • Orientable steel exhaust deflector
  • Easy chisel replacement system
  • Thick steel safety lever
  • Heat treated durable cylinder
  • Not for CE Markets

    •
    Model CP9363-4R
    Part number 6151612090
    Length 470 mm 18.5″
    Length 18.5″ 470 mm
    Net weight 8,4  18,4
    Net weight 18,4  8,4
    Actual air consumption 33 cfm
    Actual air consumption 15.7 l/s 33 cfm
    Air inlet thread size 3/8 “
    Min. hose size 10 mm 3/8″
    Min. hose size 3/8″ 10 mm
    Sound Power 115,1
    Vibration ISO ISO-28927-9
    Vibration 16,2 m/s²
    Vibration uncertainty (K) 3,3 m/s²
    Blows per minute 1600
    Bore 1 1/8″ 29 mm
    Bore 29 mm 1 1/8″
    Stroke 4″ 102 mm
    Stroke 102 mm 4″
    Chisel rivet set shank .680″ 17,2 mm
    Chisel rivet set shank 17,2  .680
    Sound DBA pressure 104,1
    Shank Round
    Butt diameter 17.272 mm 0.68″
    Butt diameter 0.68″ 17.272 mm
