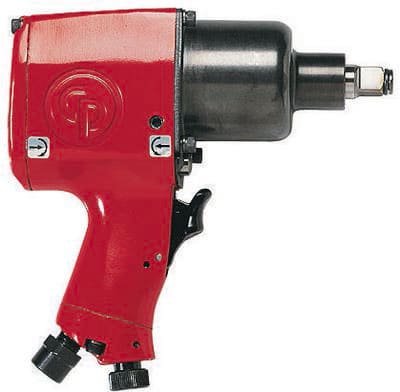

Chicago Pneumatic CP9541 IMPACT WRENCH 1/2"
Chicago Pneumatic CP9541 IMPACT WRENCH 1/2"

Chicago Pneumatic CP9541 IMPACT WRENCH 1/2″

Original price was: $461.01.Current price is: $318.10.

CP9541 – The industrial grade of the “Classic”

SKU: 6151909541 Categories: , Brand:

Description

CP9541

The industrial grade of the “Classic”

Benefits

  • Industrial Maintenance and Production
  • Low vibration and noise level increase operator comfort
  • Reliable pin clutch in oil bath and durable clutch housing

    • Features

  • 1/2″ impact wrench with ring socket retainer
  • Fast and reliable DYNA-PACT (Pin clutch) with oil bath
  • Aluminum body and steel clutch housing
  • Torque regulator at the handle
  • Steel Trigger for harsh environment

    •
    Model CP9541
    Part number 6151909541
    Length 168 mm 6.6″
    Length 6.6″ 168 mm
    Net weight 2.5 kg 5 1/2 lb
    Net weight 5 1/2 lb 2 1/2 kg
    Side to center 30 mm 1.18″
    Side to center 1.18″ 30 mm
    Actual air consumption 13 cfm
    Actual air consumption 6.13 l/s 13 cfm
    Air inlet thread size 1/4 “
    Sound pressure 89 db(A)
    Sound Power 100 db(A)
    Vibration ISO ISO-28927-2
    Vibration 5.5 m/s²
    Vibration uncertainty (K) 2.5 m/s²
    Handle type Pistol
    Square drive 1/2″
    Working Torque Range (fwd) 34 – 434 Nm 25 – 320
    Working Torque Range (fwd) 25 – 320 ft.lbs 34 – 434
    Maximum Torque (reverse) 610 Nm 450 ft.lbs
    Maximum Torque (reverse) 450 ft.lbs 610 Nm
    Free speed 8900 rpm
    Blows per minute 1100
    Power/weight ratio 244 Nm/kg 81.8 ft.lb/lb
    Power/weight ratio 81.8 ft.lb/lb 244 Nm/kg
    Socket retainer Friction ring
    Clutch type Pin clutch
    European Standards EN ISO 11148-6:2013
