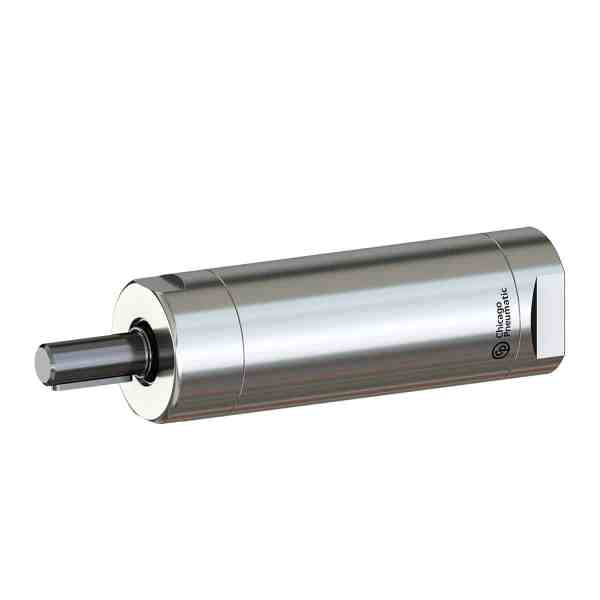

Chicago Pneumatic M39-520-KSL ATEX Part 2051478844
Chicago Pneumatic M39-520-KSL ATEX Part 2051478844

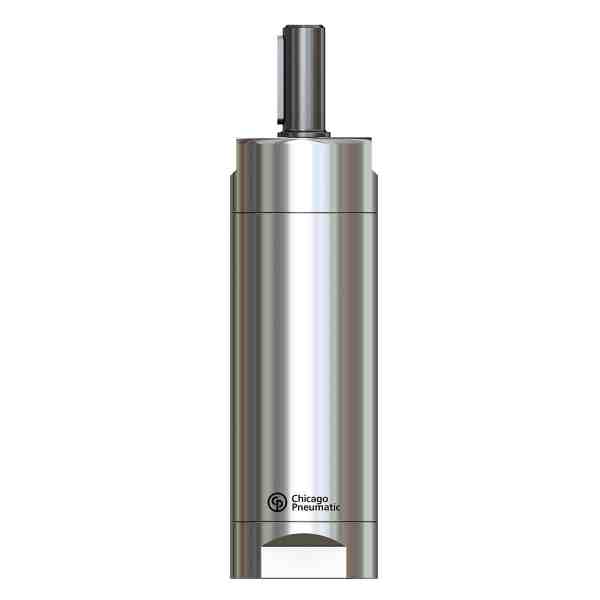

Chicago Pneumatic M39-520-KSL ATEX Part 2051478844 - Image 2
Chicago Pneumatic M39-520-KSL ATEX Part 2051478844 - Image 3

Chicago Pneumatic M39-520-KSL ATEX Part 2051478844

$2,020.63

M39-520-Ksl-Atex – Stainless Vane Motor, Atex Certified And Lubrication Free

SKU: 2051478844 Categories: , Brand:

Description

Benefits

  • Air motors’ heavy-duty characteristics enhance a sustainable use
  • The Air Motors range proposes versatile solutions in any kind of industrial environment
  • Chicago Pneumatic Air motors range offers long lasting efficiency
  • Air motors are totally suitable for food and Chemical industries due to specific features

    • Features

  • Low friction design of vane and blade,
  • Lubrication free design
  • A Design to sustain stall torque loading indefinitely
  • A Light and compact planetary gears system
  • A long and slim design
  • A range of accessories proposed to facilitate customized assembly.
  • ATEX certification for zone 2
  • A specific low air consumption design
  • a strong starting torque for mobility during operation
  • A Stainless body (chemical resistance),
  • Limited retention areas
  • A Double viton nose seals to prevent contamination risk,
  • A Silicon-free composition.

    •
    Model M39-520-KSL-ATEX
    Part number 2051478844
    Back head coaxial no
    RotationDirection Clockwise
    Net weight 1.2 kg 2.65 lb
    Net weight 2.65 lb 1.2 kg
    Air inlet thread size 1/4 “
    Free speed 520 rpm
    IP Rating IP66/IP68/IP69
    European Directives 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2014/34/EU
    European Standards DIN EN 4414:2010, DIN EN 1127-1:2011, DIN EN 80079-36:2016, DIN EN 80079-37:2016, DIN EN ISO 12100:2010
    ATEX code II 2GD h T6 IIC T85°C
    ATEX certificate number 9836 4610 00
    Air inlet thread type BSP
    Air flow at max. capacity 8.1 l/s 17.2 cfm
    ATEX yes
    Front nut threaded no
    Lubrication free yes
    Max. Output Power 0.51 hp
    Max. Output Power 0.38 kW 0.51 hp
    Output spindle 0.472″ 12 mm
    Output spindle 12 mm 0.472″
    Stainless steel yes
    Stall torque 21 ft.lbs 28 Nm
    Stall torque 28 Nm 21 ft.lbs
    Torque at max. power 10.5 ft.lbs 14.2 Nm
    Torque at max. power 14.2 Nm 10.5 ft.lbs
    Mini starting torque 19.2 ft.lbs 26 Nm
    Mini starting torque 26 Nm 19.2 ft.lbs
    Air flow at max. capacity 17.2 cfm
    Spindle type Keyed shaft
    Shaft loading code c
    Reversible no
