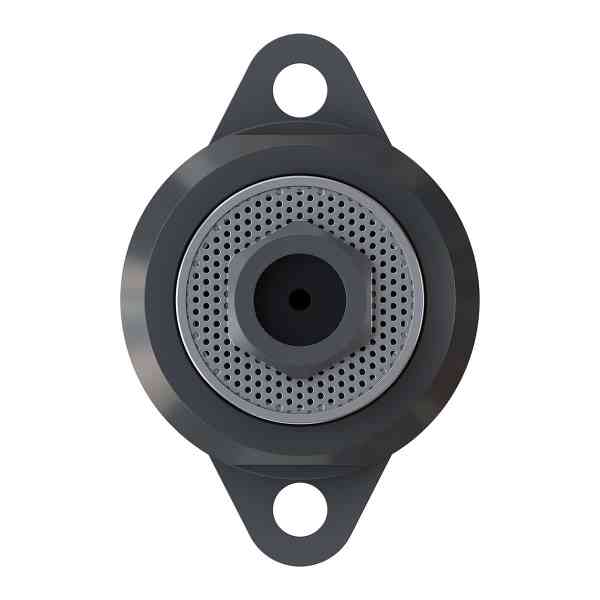

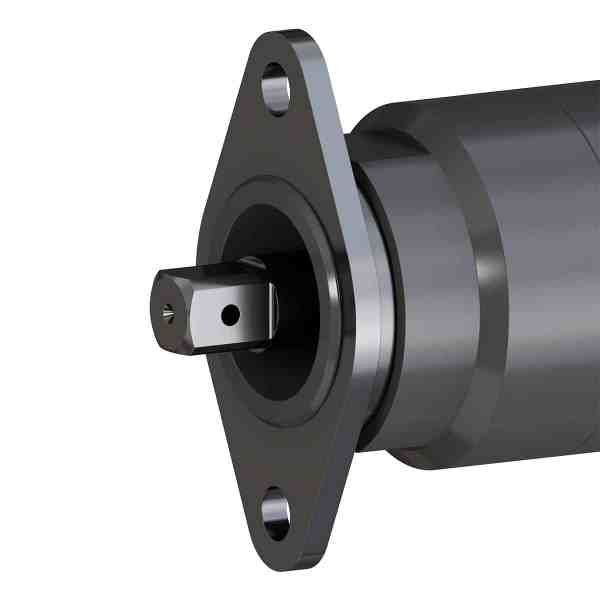

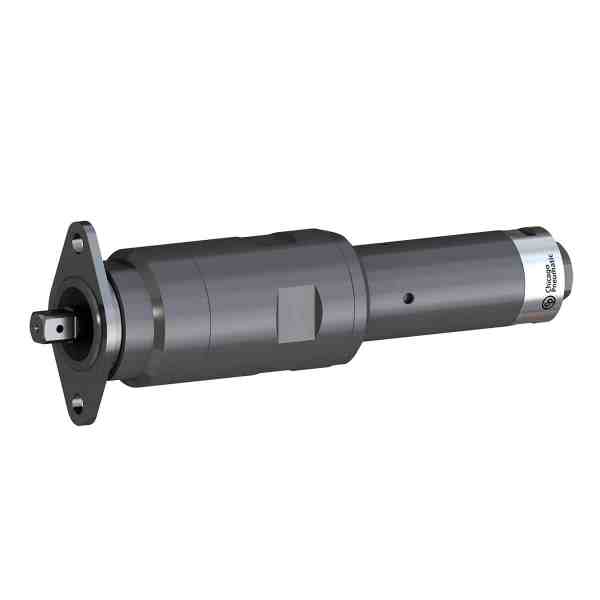

Chicago Pneumatic M3901-70-SQ Part 2051481604
Chicago Pneumatic M3901-70-SQ Part 2051481604
Chicago Pneumatic M3901-70-SQ Part 2051481604 - Image 2
Chicago Pneumatic M3901-70-SQ Part 2051481604 - Image 3
Chicago Pneumatic M3901-70-SQ Part 2051481604 - Image 4

Chicago Pneumatic M3901-70-SQ Part 2051481604

$3,470.31

M3901-70-Sq – Low Speed Squarre Drive Vane Motor

SKU: 2051481604 Categories: , Brand:

Description

Benefits

  • Air motors’ heavy-duty characteristics enhance a sustainable use
  • The Air Motors range proposes versatile solutions in any kind of industrial environment
  • Chicago Pneumatic Air motors range offers long lasting efficiency

    • Features

  • Low friction design of vane and blade,
  • Lubrication free design
  • A Design to sustain stall torque loading indefinitely
  • A Light and compact planetary gears system
  • A long and slim design
  • A range of accessories proposed to facilitate customized assembly.
  • ATEX certification for zone 2
  • A specific low air consumption design
  • a strong starting torque for mobility during operation

    •
    Model M3901-70-SQ
    Part number 2051481604
    Back head coaxial yes
    RotationDirection Clockwise
    Net weight 2.6 kg 5.8 lb
    Net weight 5.8 lb 2.6 kg
    Air inlet thread size 1/4 “
    Free speed 70 rpm
    IP Rating IP66
    European Directives 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7)
    European Standards DIN EN 4414:2010, DIN EN ISO 12100:2010
    Air inlet thread type BSP
    Air flow at max. capacity 8.1 l/s 17.1 cfm
    Front nut threaded yes
    Max. Output Power 1/2 hp
    Max. Output Power 0.37 kW 1/2 hp
    Output spindle 1/2″ 12.7 mm
    Output spindle 12.7 mm 1/2″
    Stainless steel no
    Stall torque 162 ft.lbs 220 Nm
    Stall torque 220 Nm 162 ft.lbs
    Torque at max. power 81 ft.lbs 110 Nm
    Torque at max. power 110 Nm 81 ft.lbs
    Mini starting torque 148 ft.lbs 200 Nm
    Mini starting torque 200 Nm 148 ft.lbs
    Air flow at max. capacity 17.1 cfm
    Spindle type Square
    Shaft loading code c
    Reversible no
