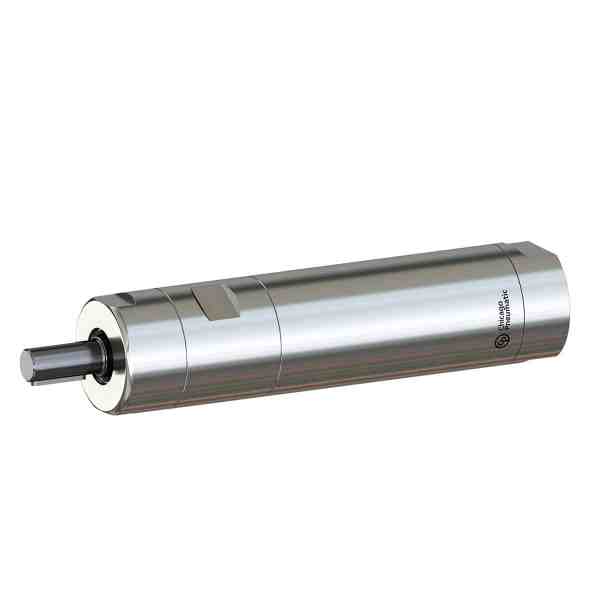

Chicago Pneumatic MR25-480-KSL ATEX Part 2051478554
Chicago Pneumatic MR25-480-KSL ATEX Part 2051478554

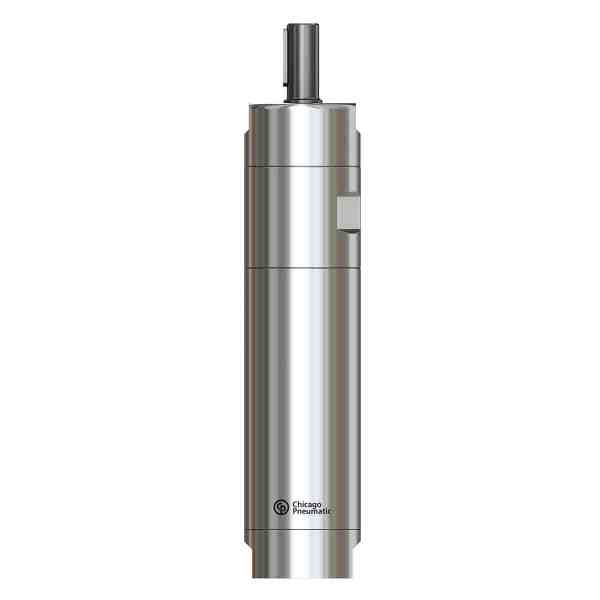

Chicago Pneumatic MR25-480-KSL ATEX Part 2051478554 - Image 2

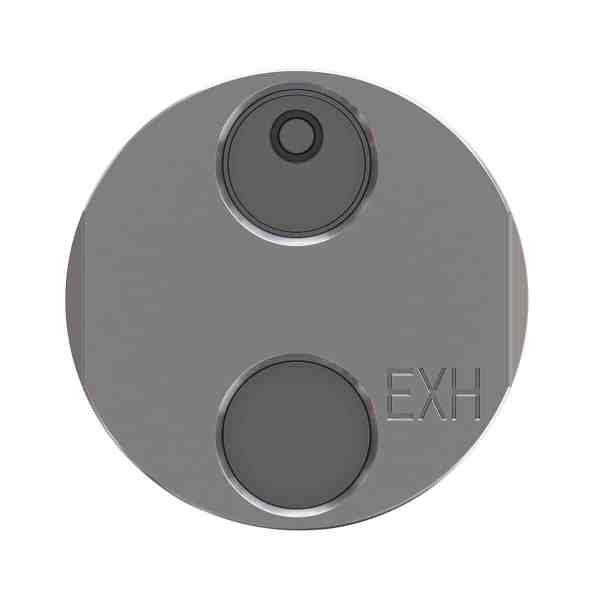

Chicago Pneumatic MR25-480-KSL ATEX Part 2051478554 - Image 3

Chicago Pneumatic MR25-480-KSL ATEX Part 2051478554

$2,166.21

Mr25-480-Ksl-Atex – Stainless Reversible Vane Motor, Atex Certified And Lubrication Free

SKU: 2051478554 Categories: , Brand:

Description

Benefits

  • Air motors’ heavy-duty characteristics enhance a sustainable use
  • The Air Motors range proposes versatile solutions in any kind of industrial environment
  • Chicago Pneumatic Air motors range offers long lasting efficiency
  • Air motors are totally suitable for food and Chemical industries due to specific features

    • Features

  • Low friction design of vane and blade,
  • Lubrication free design
  • A Design to sustain stall torque loading indefinitely
  • A Light and compact planetary gears system
  • A long and slim design
  • A range of accessories proposed to facilitate customized assembly.
  • ATEX certification for zone 2
  • A specific low air consumption design
  • a strong starting torque for mobility during operation
  • A Stainless body (chemical resistance),
  • Limited retention areas
  • A Double viton nose seals to prevent contamination risk,
  • A Silicon-free composition.

    •
    Model MR25-480-KSL-ATEX
    Part number 2051478554
    Back head coaxial no
    RotationDirection Clockwise;Anticlockwise
    Net weight 0.83 kg 1.83 lb
    Net weight 1.83 lb 0.83 kg
    Air inlet thread size 1/8 “
    Free speed 480 rpm
    IP Rating IP66/IP68/IP69
    European Directives 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2014/34/EU
    European Standards DIN EN 4414:2010, DIN EN 1127-1:2011, DIN EN 80079-36:2016, DIN EN 80079-37:2016, DIN EN ISO 12100:2010
    ATEX certificate number 9836 4610 00
    Air inlet thread type BSP
    Air flow at max. capacity 5 l/s 10.6 cfm
    ATEX yes
    Front nut threaded no
    Lubrication free yes
    Max. Output Power 0.21 hp
    Max. Output Power 0.16 kW 0.21 hp
    Output spindle 0.394″ 10 mm
    Output spindle 10 mm 0.394″
    Stainless steel yes
    Stall torque 9.3 ft.lbs 12.6 Nm
    Stall torque 12.6 Nm 9.3 ft.lbs
    Torque at max. power 4.6 ft.lbs 6.3 Nm
    Torque at max. power 6.3 Nm 4.6 ft.lbs
    Mini starting torque 6.3 ft.lbs 8.5 Nm
    Mini starting torque 8.5 Nm 6.3 ft.lbs
    Air flow at max. capacity 10.6 cfm
    Spindle type Keyed shaft
    Shaft loading code b
    Reversible yes
