Chicago Pneumatic MR39-3800-KL ATEX Part 2051478724
Original price was: $1,481.25.$1,069.79Current price is: $1,069.79.

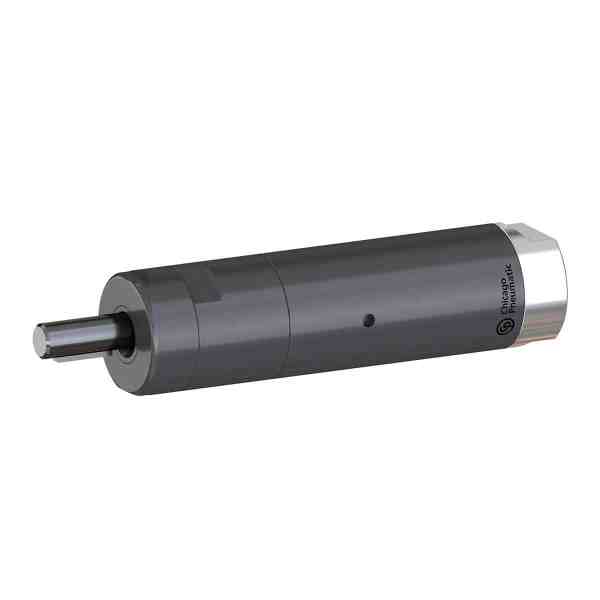

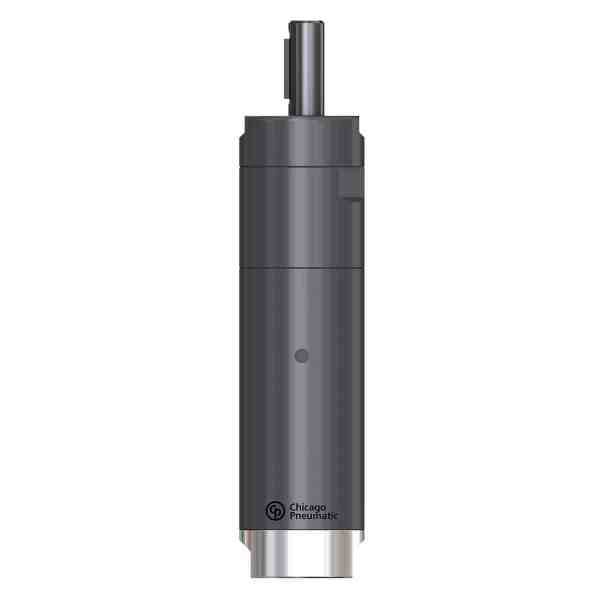

Mr39-3800-Kl-Atex – Standard Reversible Vane Motor, Atex Certified And Lubrication Free
- Description
- Additional information
Description
Benefits
Features
Model | MR39-3800-KL-ATEX | |
Part number | 2051478724 | |
Back head coaxial | no | |
Net weight | 0.75 kg | 1.65 lb |
Air inlet thread size | 1/4 “ | |
Free speed | 3800 rpm | |
IP Rating | IP66 | |
European Directives | 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2014/34/EU | |
European Standards | DIN EN 4414:2010, DIN EN 1127-1:2011, DIN EN 80079-36:2016, DIN EN 80079-37:2016, DIN EN ISO 12100:2010 | |
ATEX certificate number | 9836 4610 00 | |
Air inlet thread type | BSP | |
Air flow at max. capacity | 7.9 l/s | 16.7 cfm |
ATEX | yes | |
Front nut threaded | no | |
Lubrication free | yes | |
Max. Output Power | 0.25 kW | 0.34 hp |
Output spindle | 12 mm | 0.472″ |
Stainless steel | no | |
Stall torque | 2.4 Nm | 1.8 ft.lbs |
Torque at max. power | 1.2 Nm | 0.89 ft.lbs |
Mini starting torque | 1.6 Nm | 1.2 ft.lbs |
Spindle type | Keyed shaft | |
Shaft loading code | c | |
Reversible | yes |
