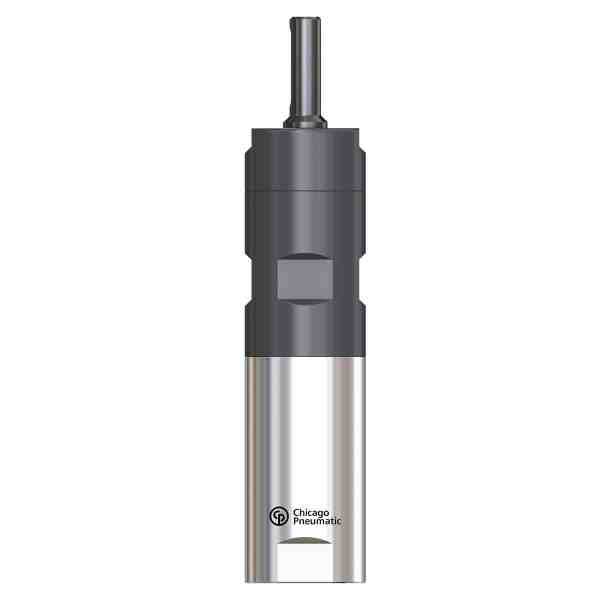

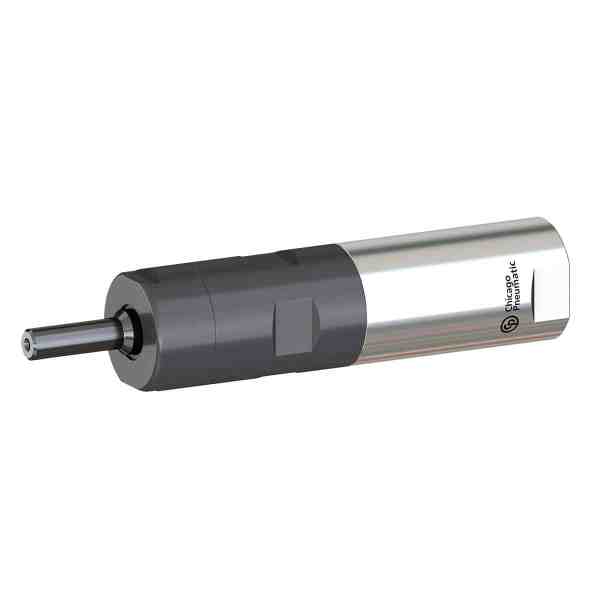

Chicago Pneumatic MR8401-230-K ATEX Part 2051481574
Chicago Pneumatic MR8401-230-K ATEX Part 2051481574
Chicago Pneumatic MR8401-230-K ATEX Part 2051481574 - Image 2
Chicago Pneumatic MR8401-230-K ATEX Part 2051481574 - Image 3

Chicago Pneumatic MR8401-230-K ATEX Part 2051481574

$4,294.79

Mr8401-230-K-Atex – Standard Reversible Vane Motor, Atex Certified

SKU: 2051481574 Categories: , Brand:

Description

Benefits

  • Air motors’ heavy-duty characteristics enhance a sustainable use
  • The Air Motors range proposes versatile solutions in any kind of industrial environment
  • Chicago Pneumatic Air motors range offers long lasting efficiency

    • Features

  • Low friction design of vane and blade,
  • A Design to sustain stall torque loading indefinitely
  • A Light and compact planetary gears system
  • A long and slim design
  • A range of accessories proposed to facilitate customized assembly.
  • ATEX certification for zone 2
  • A specific low air consumption design
  • a strong starting torque for mobility during operation

    •
    Model MR8401-230-K-ATEX
    Part number 2051481574
    Back head coaxial no
    Net weight 2.7 kg 6 lb
    Net weight 6 lb 2.7 kg
    Air inlet thread size 1/4 “
    Free speed 230 rpm
    IP Rating IP66
    European Directives 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2014/34/EU
    European Standards DIN EN 4414:2010, DIN EN 1127-1:2011, DIN EN 80079-36:2016, DIN EN 80079-37:2016, DIN EN ISO 12100:2010
    ATEX certificate number 9836 4610 00
    Air inlet thread type BSP
    Air flow at max. capacity 14 l/s 30 cfm
    ATEX yes
    Front nut threaded no
    Lubrication free no
    Max. Output Power 0.8 hp
    Max. Output Power 0.6 kW 0.8 hp
    Output spindle 0.394″ 10 mm
    Output spindle 10 mm 0.394″
    Stainless steel no
    Stall torque 67 ft.lbs 91 Nm
    Stall torque 91 Nm 67 ft.lbs
    Torque at max. power 34 ft.lbs 46 Nm
    Torque at max. power 46 Nm 34 ft.lbs
    Mini starting torque 45 ft.lbs 61 Nm
    Mini starting torque 61 Nm 45 ft.lbs
    Air flow at max. capacity 30 cfm
    Spindle type Keyed shaft
    Shaft loading code g
    Reversible yes
