Coxreels Compact Low Pressure Spring Rewind Hose Reel: 3/8″ I.D., 20′ hose capacity, with high visibility safety hose, 300 PSI Model LG-LP-320-HV
$258.00
Compact Low Pressure Spring Rewind Hose Reel: 3/8″ I.D., 20′ hose capacity, with high visibility safety hose, 300 PSI
- Description
- Additional information
Description
FEATURES
COXREELS® HV “High Visibility” Safety Hose Series powers up the safety of your reel. The HV Hose will add awareness and visibility to your hose creating the safest environment possible. To maximize your safety to the highest level, add EZ-Coil controlled retraction to your Coxreels.

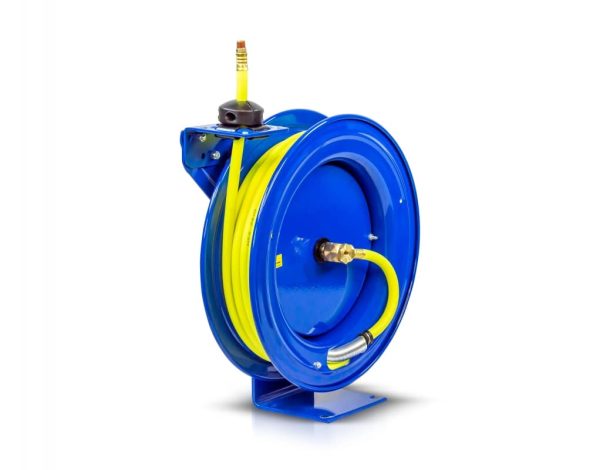

Model Shown: P-LP-350-HV. Please refer to Overall Dimensions and Drum Width for the different reel sizes available.
SIGNATURE FEATURES
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer’s limited warranty.
- Made in the U.S.A. – Sold & Supported Worldwide.
- SWIVEL – Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- HI-VIS SAFETY HOSE – Hybrid bright yellow hose with a white glossy stripe available Hybrid hoses (PVC + Rubber blend) offer similar performance to rubber with the weight of PVC, combining positive features of both hose types. Increased hose flexibility and better low temperature behavior while maintaining strength and toughness. With enhanced kink resistance and reduced coil memory, they lay flat for a reduced trip hazard potential. Less sticky jacket surface than PVC for better stacking performance and an improved non-marring quality.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, sturdy permanently lubricated precision bearings, and versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
| P-LP-325-HV | 3/8″ | 5/8″ | 25′ | Yes | 300 | 28 | 6.5″(W) 14.88″(H) 13.50″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| P-LP-350-HV | 3/8″ | 5/8″ | 50′ | Yes | 300 | 43 | 6.75″(W) 18.63″(H) 17.33″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| P-LP-425-HV | 1/2″ | 13/16″ | 25′ | Yes | 300 | 44 | 7″(W) 18.63″(H) 17.33″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| P-LP-450-HV | 1/2″ | 13/16″ | 50′ | Yes | 300 | 48 | 7″(W) 18.63″(H) 17.33″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
Additional information
| Weight | 11 lbs |
|---|---|
| Brand | |
| Length | 20 ft |
| ID - Inside Diameter | 3/8 in |
