Coxreels DEF Heavy Duty Spring Rewind Hose Reel, 1/2″ I.D., 50′ DEF hose, low pressure, 300 PSI Model SHL-N-450-BBX
$508.00
DEF Heavy Duty Spring Rewind Hose Reel, 1/2″ I.D., 50′ DEF hose, low pressure, 300 PSI
- Description
- Additional information
Description
FEATURES
COXREELS® DEF Series are equipped with a stainless steel external full-flow swivel and chemical resistant Viton® seals to provide a safe, reliable Diesel Exhaust Fluid (DEF) dispensing solution. The swivel is easy to access for simple seal maintenance and fast DEF dispenser hose installation. Coxreels® heavy-duty single pedestal (SH Series) is outfitted with Coxreels’ original Super Hub™ dual axle support systems to increase stability and reduce vibration during operation, making these reels the perfect DEF handling solutions for either stationary or rugged mobile applications.

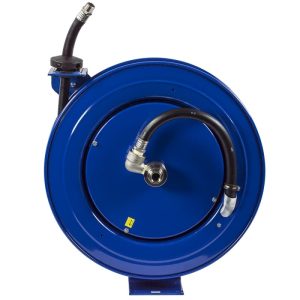

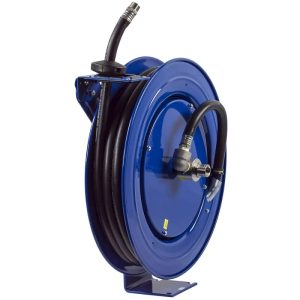

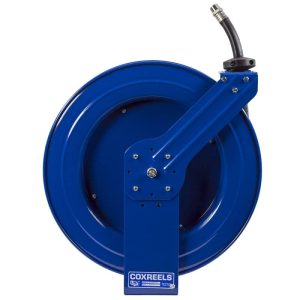

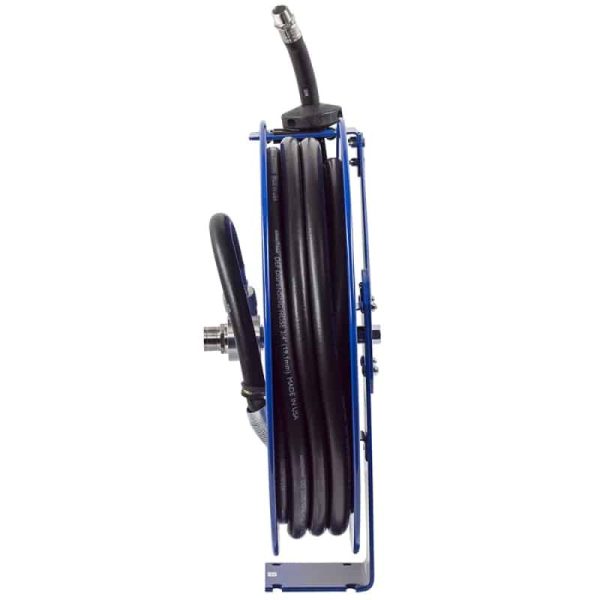

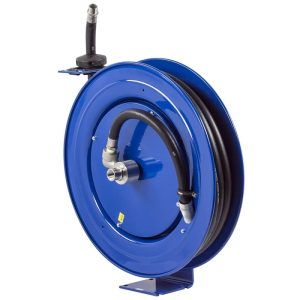

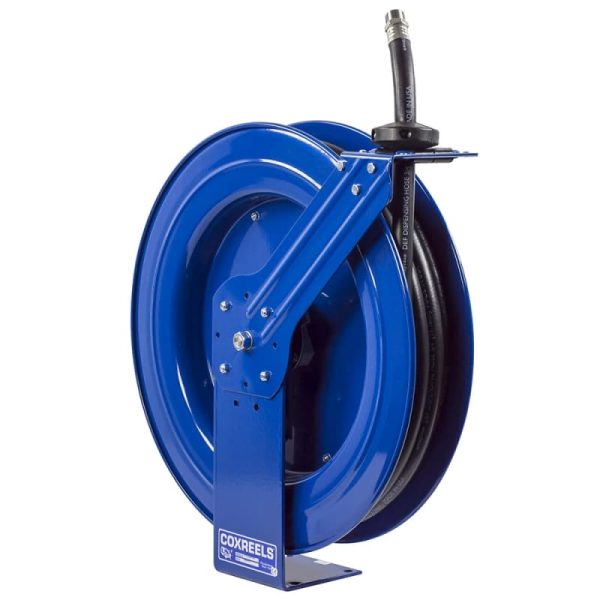

Model Shown: SH-N-525-DF-BBX. Please refer to Overall Dimensions for the different reel sizes available.
SIGNATURE FEATURES
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
- SWIVEL – Non-corrosive stainless steel 90º full-flow NPT swivel for Diesel Exhaust Fluid (DEF) dispensing applications.
- CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™dual axle support system.
- MULTI-POSITION GUIDE ARM – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, DEF dispensing hose, and sturdy permanently lubricated precision bearings.
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
| SH-N-525-DF-BBX | 3/4″ | 1 1/8″ | 25′ | Yes | 300 | 57 | 9.38″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SH-N-550-DF-BBX | 3/4″ | 1 1/8″ | 50′ | Yes | 300 | 76 | 9.88″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-450-BBX | 1/2″ | 7/8″ | 50′ | No | 300 | 46 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-525-DF-BBX | 3/4″ | 1 1/8″ | 25′ | No | 300 | 45 | 9.38″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| SHL-N-550-DF-BBX | 3/4″ | 1 1/8″ | 50′ | No | 300 | 56 | 9.88″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
