Coxreels Hand Crank Hose Reel: 1/2″ I.D., 75′ hose capacity, less hose, 4000 PSI Model 112-4-75
$254.00
Hand Crank Hose Reel: 1/2″ I.D., 75′ hose capacity, less hose, 4000 PSI
- Description
- Additional information
Description
FEATURES
Coxreels® 100 Series hand crank hose reels are lightweight, compact, versatile reels that perform at working pressures up to 4,000 PSI. Save time and effort while increasing the safety of your work environment. The sturdy “U” shaped frame and all steel construction this one tough little reel. All listed models are supplied less hose. Stainless steel models are available.

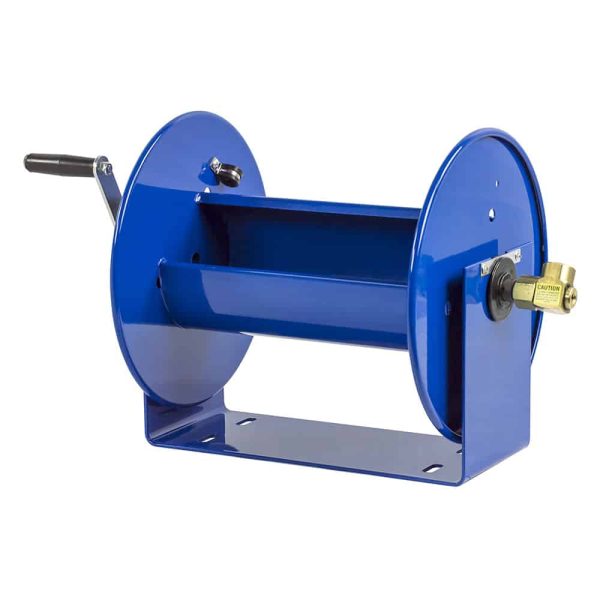

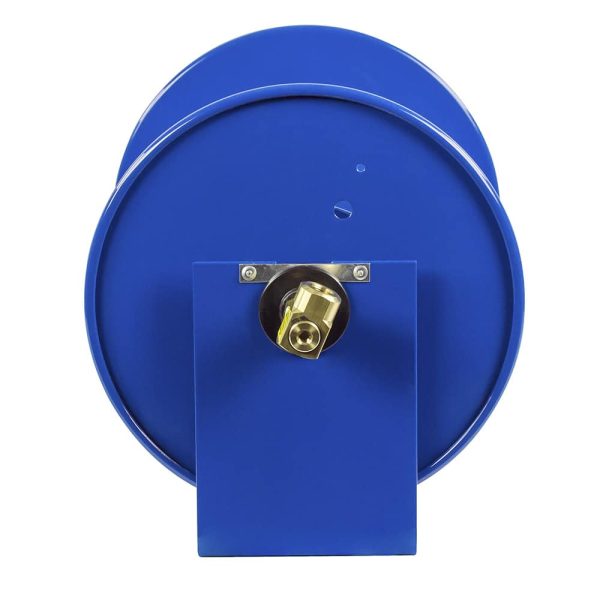

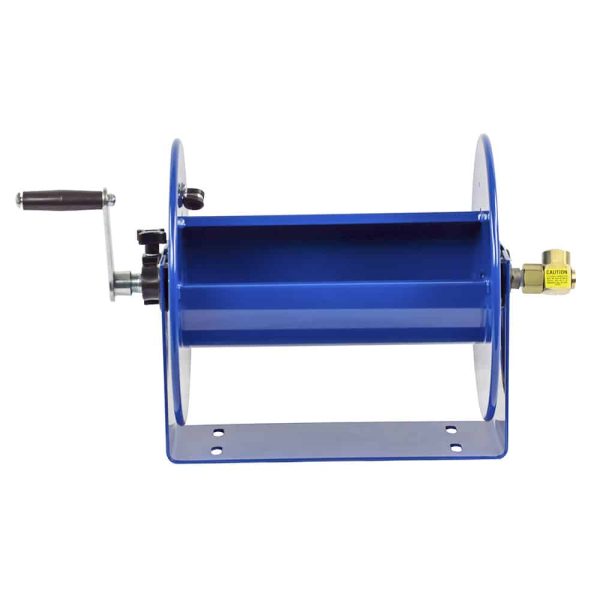

Model Shown: 112-3-150. Please refer to Overall Dimensions and Drum Width for the different reel sizes available.
SIGNATURE FEATURES
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer’s limited warranty.
- Made in the U.S.A. – Sold & Supported Worldwide.
- SWIVEL – Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- “U” SHAPED FRAME DESIGNÂ – Solid one piece heavy gauge all steel “U” shaped frame. Professional grade, compact, lightweight and simple design.
- CNC SPUN DISCSÂ – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- ADJUSTABLE TENSION BRAKEÂ – Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- STEEL CONSTRUCTIONÂ – High quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
- OTHER FEATURES INCLUDEÂ – long lasting, chip resistant and rust inhibiting CPC powder coat finish, and direct hand crank for easy mechanical retraction.
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
| 112-3-100 | 3/8″ | 5/8″ | 100′ | No | 4000 | 19 | 18.25″(W) 13″(H) 12″(L) | 5.5″(M) 3″(N) | 9.5″(X) 6″(Y) |
| 112-3-150 | 3/8″ | 5/8″ | 150′ | No | 4000 | 21 | 22.75″(W) 13″(H) 12″(L) | 10″(M) 3″(N) | 14″(X) 6″(Y) |
| 112-3-50 | 3/8″ | 5/8″ | 50′ | No | 4000 | 15 | 14.5″(W) 13″(H) 12″(L) | 4″(M) 3″(N) | 6″(X) 6″(Y) |
| 112-4-75 | 1/2″ | 7/8″ | 75′ | No | 4000 | 21 | 22.75″(W) 13″(H) 12″(L) | 10″(M) 3″(N) | 14″(X) 6″(Y) |
| 117-3-250 | 3/8″ | 5/8″ | 250′ | No | 4000 | 30 | 18.25″(W) 18″(H) 17″(L) | 5.5″(M) 3″(N) | 9.5″(X) 6″(Y) |
| 117-3-400 | 3/8″ | 5/8″ | 400′ | No | 4000 | 33 | 22.75″(W) 18″(H) 17″(L) | 10″(M) 3″(N) | 14″(X) 6″(Y) |
| 117-3-550 | 3/8″ | 5/8″ | 550′ | No | 4000 | 35 | 28.25″(W) 18″(H) 17″(L) | 5.5″(M) 3″(N) | 19.5″(X) 6″(Y) |
| 117-4-225 | 1/2″ | 7/8″ | 225′ | No | 4000 | 31 | 22.75″(W) 18″(H) 17″(L) | 10″(M) 3″(N) | 14″(X) 6″(Y) |
| 117-4-350 | 1/2″ | 7/8″ | 350′ | No | 4000 | 37 | 28.25″(W) 18″(H) 17″(L) | 5.5″(M) 3″(N) | 19.5″(X) 6″(Y) |
| 117-5-100 | 3/4″ | 1 1/4″ | 100′ | No | 4000 | 35 | 23.25″(W) 18″(H) 17″(L) | 10″(M) 3″(N) | 14″(X) 6″(Y) |
