Coxreels Heavy Duty Spring Rewind Hose Reel for fuel: 3/4″ I.D., 25′ Fueling Hose, 300 PSI Model SHF-N-525
$723.00
Heavy Duty Spring Rewind Hose Reel for fuel: 3/4″ I.D., 25′ Fueling Hose, 300 PSI
- Description
- Additional information
Description
FEATURES
COXREELS® Fuel Dispensing Reels are designed to handle various non-aromatic fuel applications including diesel, kerosene, fuel oil and heating oil. Coxreels® professional fuel dispensing heavy-duty single pedestal (SH Series) reels are an essential component found in utility, ground support, and bulk liquid handling transport services mounted on fuel storage & dispensing systems, fuel/lube trucks, aircraft refuelers, and tank trucks. The convenient uncoiling systems with the added hose control allow the operator to efficiently handle fuel transfers.

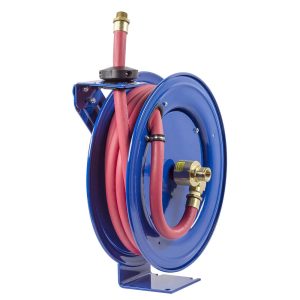

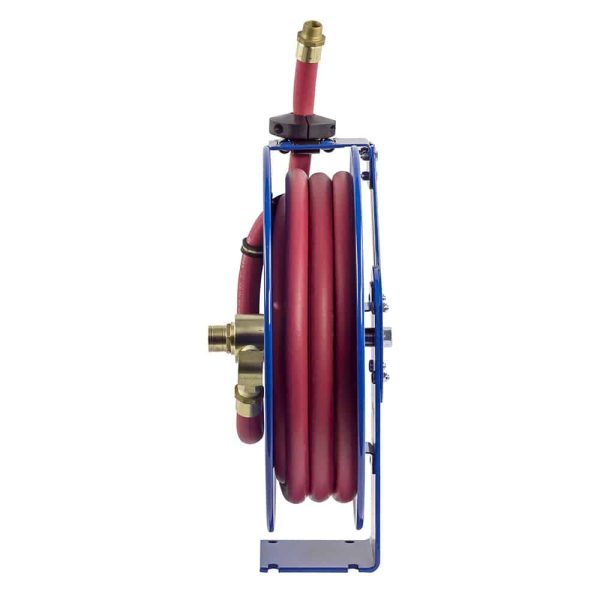

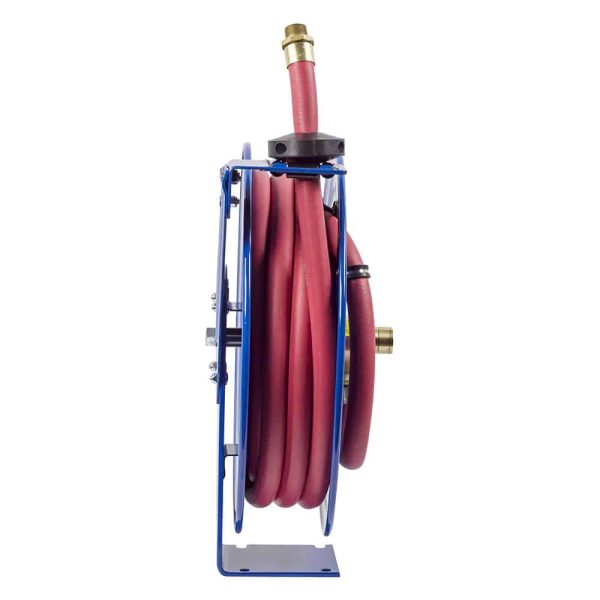

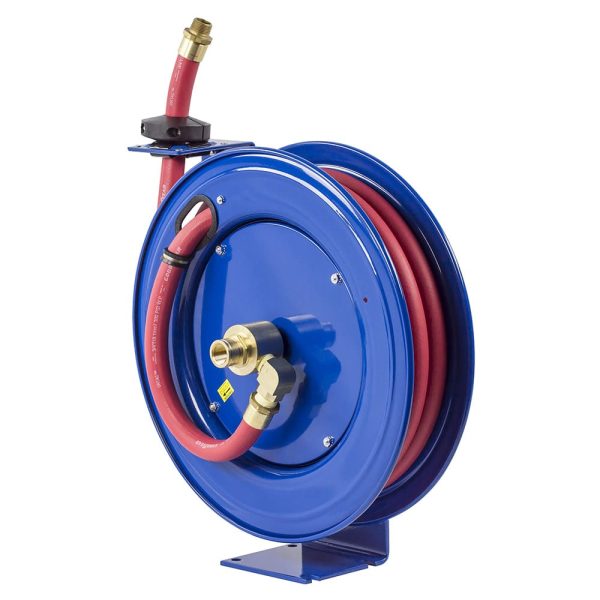

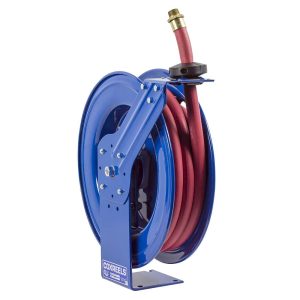

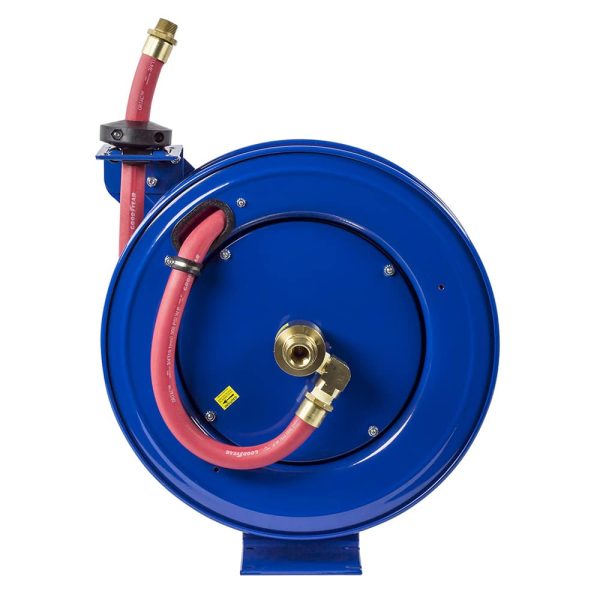

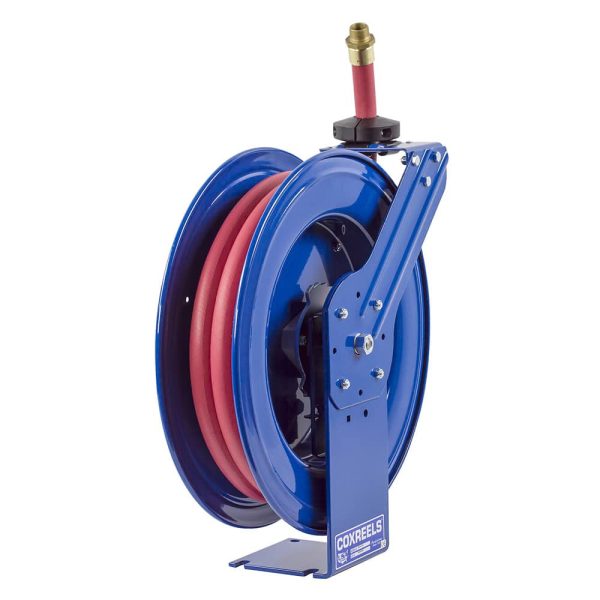

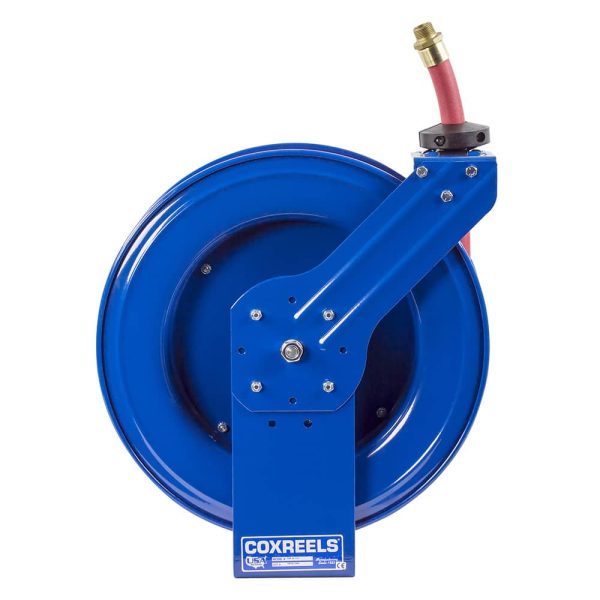

Model Shown: SHF-N-525. Please refer to Overall Dimensions for the different reel sizes available.
SIGNATURE FEATURES
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
- SWIVEL – Machined from solid brass 90º full-flow NPT swivel for fuel dispensing applications.
- CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™dual axle support system.
- MULTI-POSITION GUIDE ARM – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, fuel dispensing hose, and sturdy permanently lubricated precision bearings.
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | WITH OR WITHOUT A HOSE | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
| SHF-N-525 | 3/4″ | 1 3/16″ | 25′ | Yes | 300 | Yes | 9 3/8″”(W) 21 1/4″”(H) 19 1/2″”(L) | 4″”(M) 5″”(N) | 6″”(X) 6″”(Y) |
| SHFL-N-525 | 3/4″ | 1 1/8″ | 25′ | No | 300 | 45 | 9.38″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
