Coxreels Safety Series Spring Rewind Power Cord Reel: Single Industrial Receptacle, 50′ cord, 12 AWG Model EZ-PC13-5012-A
$732.00
Safety Series Spring Rewind Power Cord Reel: Single Industrial Receptacle, 50′ cord, 12 AWG
- Description
- Additional information
Description
FEATURES
COXREELS® EZ-PC Series spring driven “Power Cord” reels are heavy duty, industrial grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Modeled after the P and SH Series, the PC Series are designed for long-lasting, trouble-free performance even under the most demanding conditions.

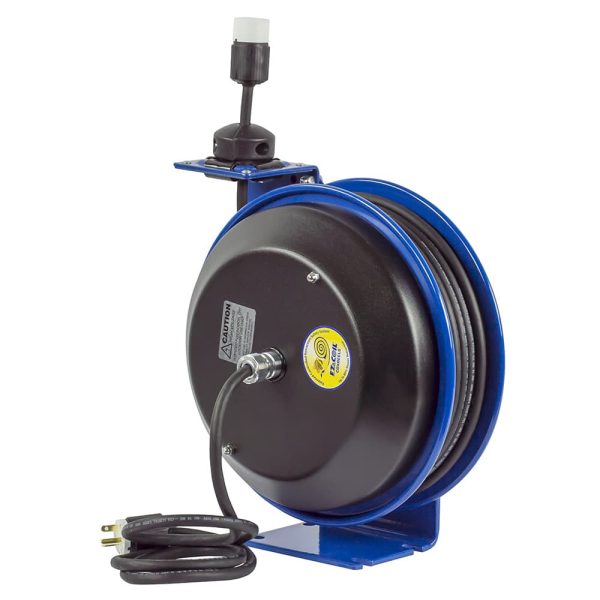

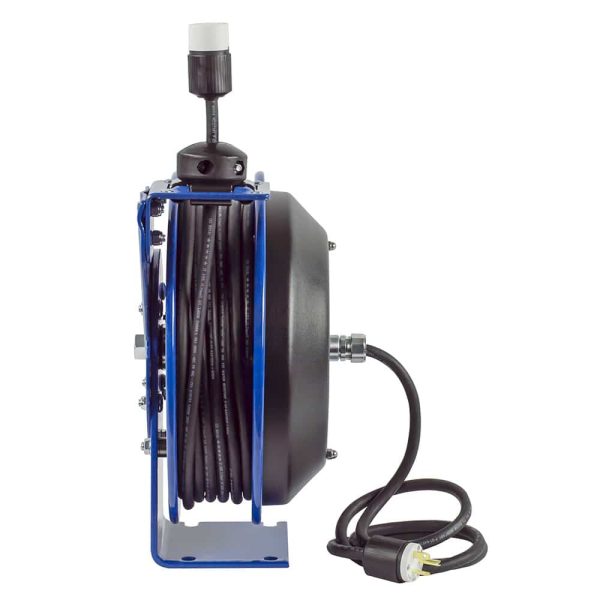

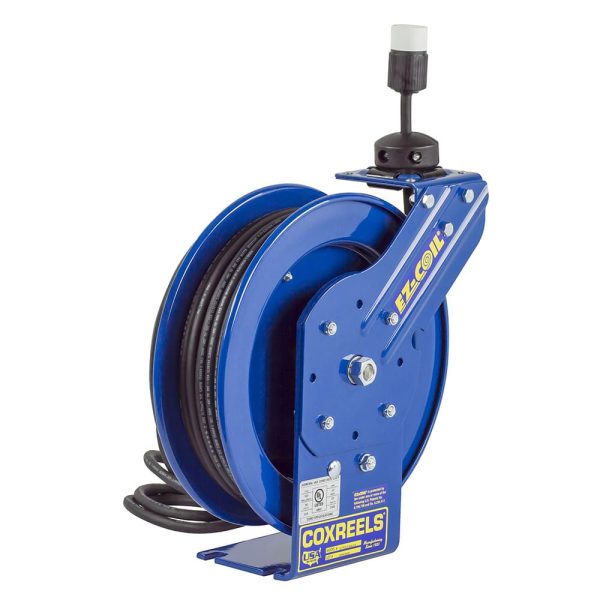

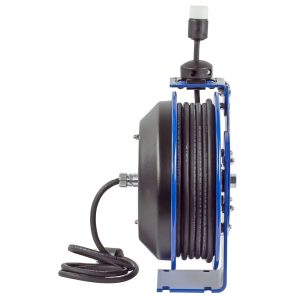

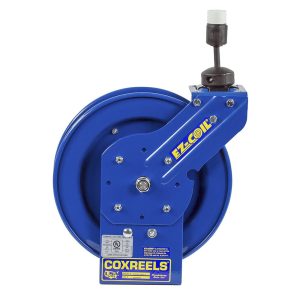

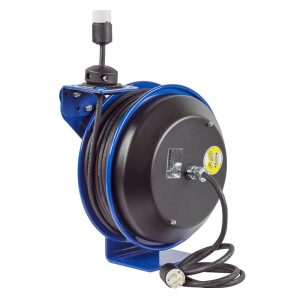

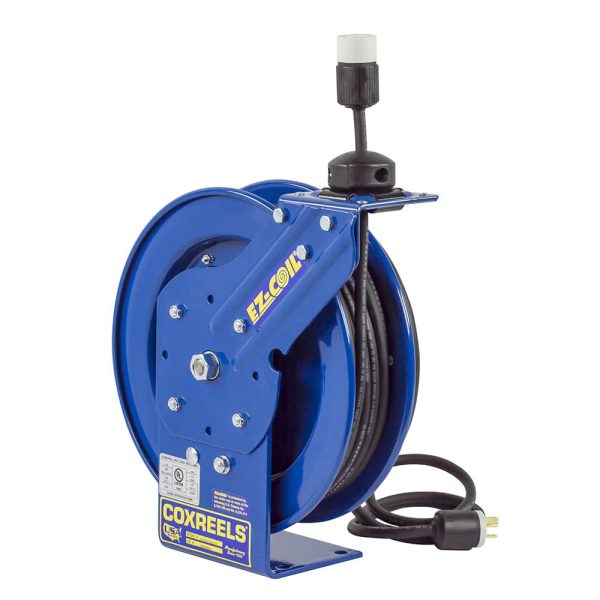

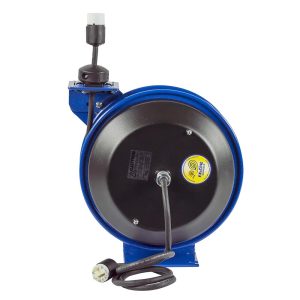

Model Shown: EZ-PC13-5012-A. Please refer to Overall Dimensions for the different reel sizes available.
SIGNATURE FEATURES
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer’s limited warranty.
- Made in the U.S.A. – Sold & Supported Worldwide.
- COMPONENT COVER – External, easily accesible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance. No need to remove the reel from its mount.
- EZ-COIL® EQUIPPED – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- MULTI-POSITION GUIDE ARM – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber cord stop, 5′ lead cable and grounding plug, sturdy permanently lubricated precision bearings.
| MODEL | LENGTH | HOSE | SHIP WEIGHT (LBS) | AMPS | VOLTS | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
| EZ-PC13-5012-A | 50′ | Yes | 40 | 20 | 115 | 8.5″(W) 14.88″(H) 13.5″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| EZ-PC13-5012-B | 50′ | Yes | 41 | 20 | 115 | 8.5″(W) 14.88″(H) 13.5″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| EZ-PC13-5012-F | 50′ | Yes | 42 | 20 | 115 | 8.5″(W) 14.88″(H) 13.5″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| EZ-PC13-5012-X | 50′ | Yes | 40 | 20 | 115 | 8.5″(W) 14.88″(H) 13.5″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| EZ-PC13-5016-A | 50′ | Yes | 34 | 13 | 115 | 8.5″(W) 14.88″(H) 13.5″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| EZ-PC13-5016-E | 50′ | Yes | 36 | 13 | 115 | 8.5″(W) 14.88″(H) 13.5″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| EZ-PC13-5016-H | 50′ | Yes | 37 | 0.3 | 115 | 8.50″(W) 14.88″(H) 13.50″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| EZ-PC13-5016-K | 50′ | Yes | 37 | 0.3 | 115 | 8.50″(W) 14.88″(H) 13.50″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| EZ-PC13-5016-M | 50′ | Yes | 37 | 0.3 | 115 | 8.50″(W) 14.88″(H) 13.50″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| EZ-PC13L-5012 | 50′ | No | 29 | 25 | 115 | 8.5″(W) 14.88″(H) 13.5″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| EZ-PC13L-5016 | 50′ | No | 31 | 25 | 115 | 8.5″(W) 14.88″(H) 13.5″(L) | 3″(M) 5″(N) | 5″(X) 6″(Y) |
| EZ-PC24-0012-A | 100′ | Yes | 90 | 20 | 115 | 10.25″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-PC24-0012-B | 100′ | Yes | 92 | 20 | 115 | 10.25″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-PC24-0012-F | 100′ | Yes | 90 | 20 | 115 | 10.25″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-PC24-0012-X | 100′ | Yes | 81 | 20 | 115 | 10.25″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-PC24-0016-A | 100′ | Yes | 80 | 13 | 115 | 10.25″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-PC24-0016-D | 100′ | Yes | 80 | 13 | 115 | 10.25″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-PC24-0016-E | 100′ | Yes | 80 | 13 | 115 | 10.25″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-PC24L-0012 | 100′ | No | 64 | 25 | 115 | 10.25″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-PC24L-0016 | 100′ | No | 62 | 25 | 115 | 10.25″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
Additional information
| Weight | 40 lbs |
|---|---|
| Dimensions | 13.5 × 8.5 × 14.88 in |
| Brand | |
| Length | 50 ft |
| Fluid |
