Coxreels Spring Rewind Hose Reel for Nitrogen : 3/8″ I.D., 50′ less hose, 300 PSI Model P-NPL-350
$475.00
Spring Rewind Hose Reel for Nitrogen : 3/8″ I.D., 50′ less hose, 300 PSI
- Description
- Additional information
Description
FEATURES
COXREELS® Nitro-Pro® Series spring driven hose reels are the only nitrogen hose reels specifically engineered, tested and approved for use with nitrogen tire inflation systems. These professional-grade specialty reels feature compact space-saving size and heavy duty construction for flexible installation and long-lasting performance. This reel is specifically designed to reduce workplace accidents and increase operator safety.

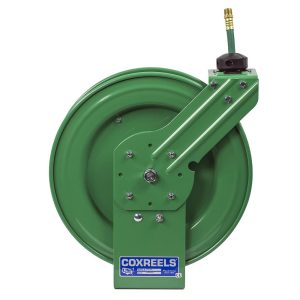

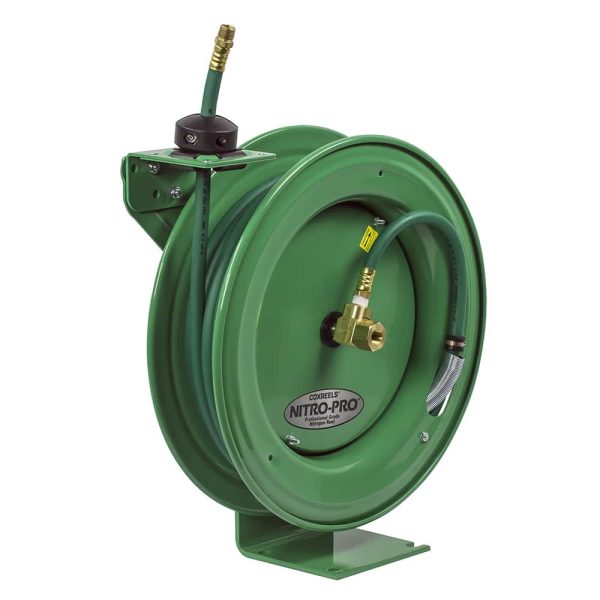

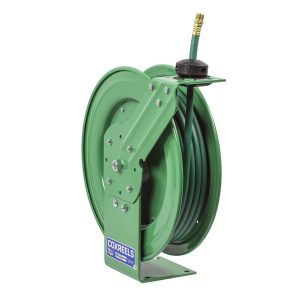

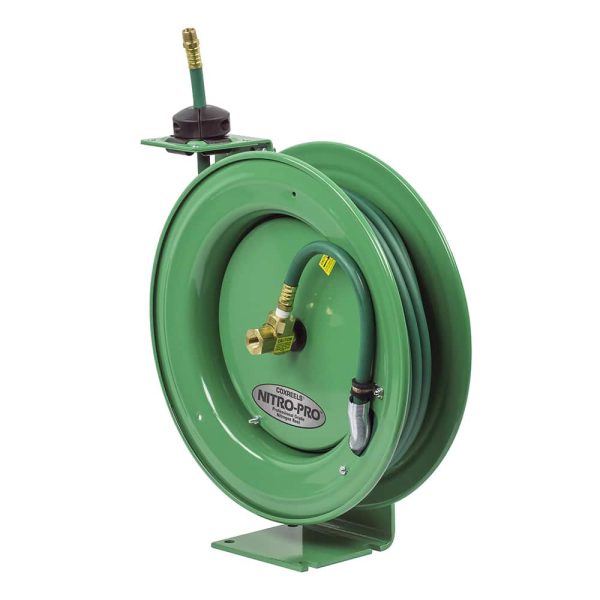

Model Shown: P-NP-350. Please refer to Overall Dimensions for the different reel sizes available.
SIGNATURE FEATURES
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer’s limited warranty.
- Made in the U.S.A. – Sold & Supported Worldwide .
- SWIVEL – Nitrogen quality seals in the machined solid from brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- MULTI-POSITION GUIDE ARM – Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting special “Nitrogen green” proprietary CPC™ powder coat finish, adjustable solid rubber hose stop, green nitrogen hose, and sturdy permanently lubricated precision bearings.
| MODEL | I.D | O.D | LENGTH | MAX PSI | HOSE | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
| P-NP-350 | 3/8″ | 5/8″ | 50′ | 300 | Yes | 43 | 6.75″(W) 18.63″(H) 17.13″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| P-NPL-350 | 3/8″ | 5/8″ | 50′ | 300 | No | 36 | 6.75″(W) 18.63″(H) 17.13″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
