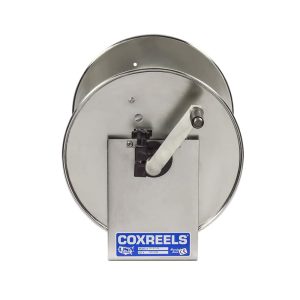

Coxreels Stainless Steel Hand Crank Hose Reel: 1/2″ I.D., 225′ hose capacity, less hose, 4000 PSI Model 117-4-225-SS
Stainless Steel Hand Crank Hose Reel: 1/2″ I.D., 225′ hose capacity, less hose, 4000 PSI
- Additional information
COXREELS® SS Series “Stainless Steel” hand crank hose reels have similar features to their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion and contamination thrive.

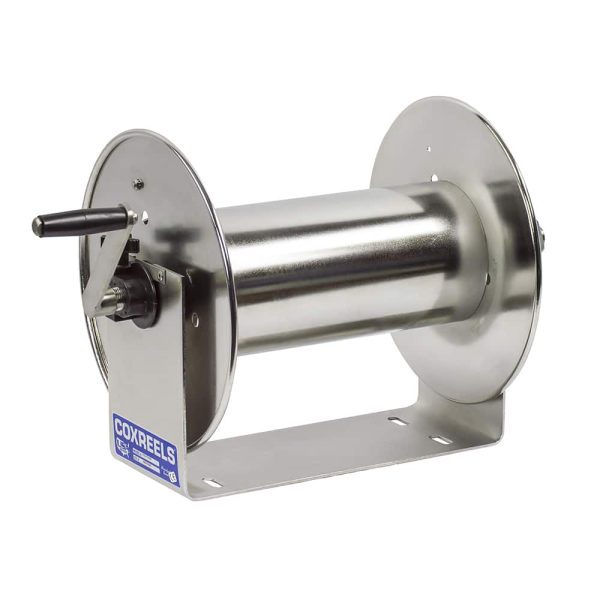

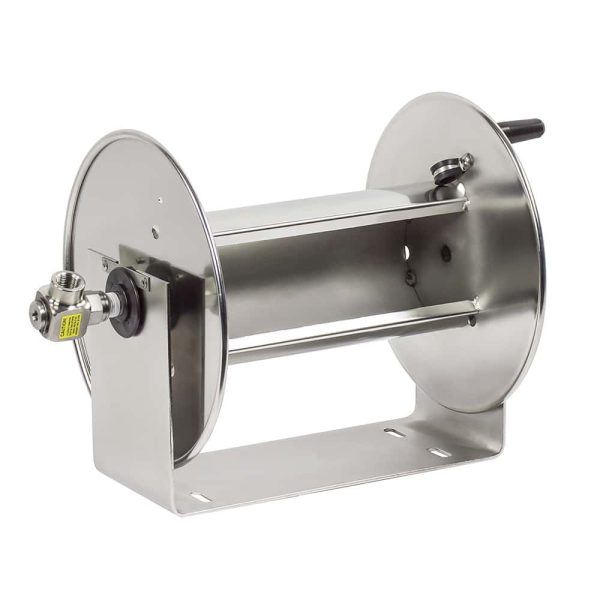

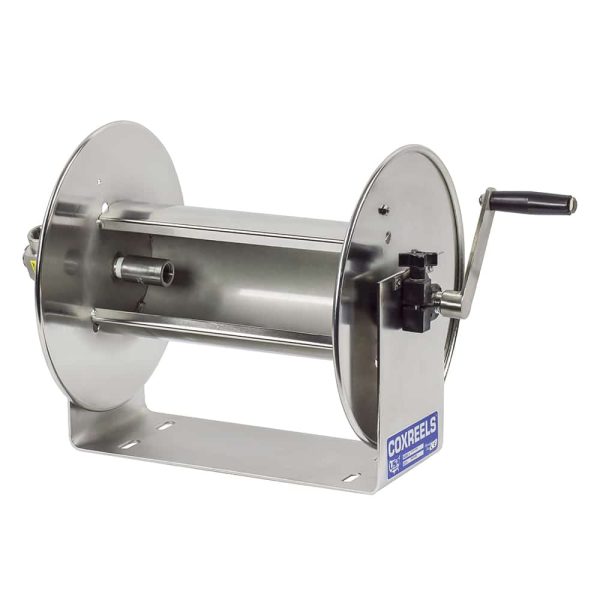

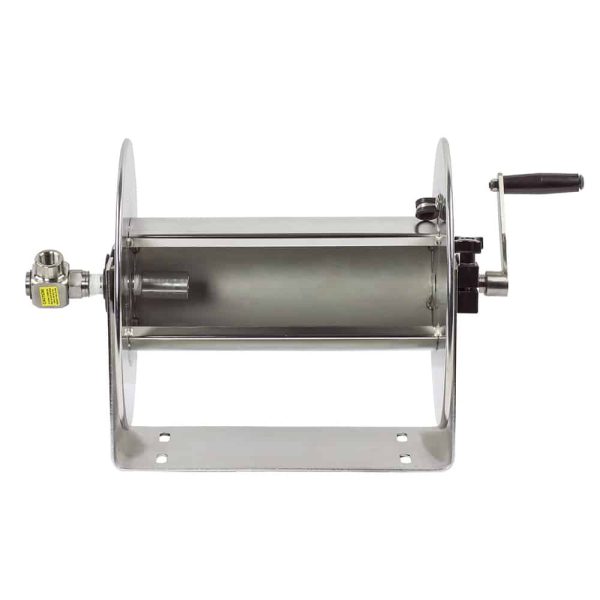

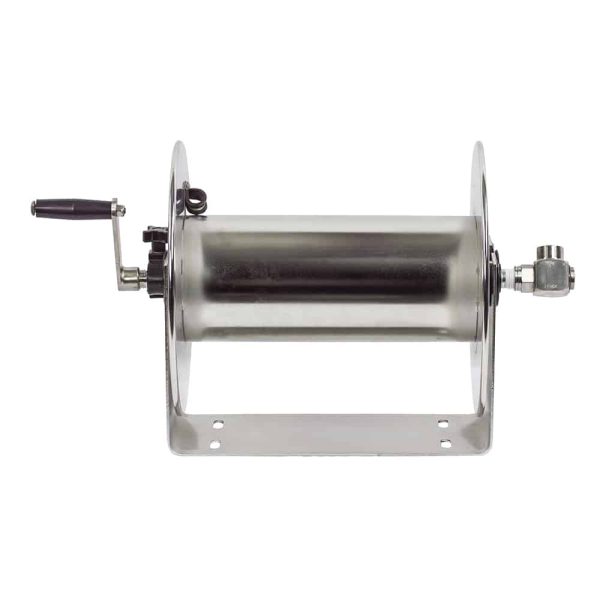

Model Shown: 112-4-75-SS. Please refer to Overall Dimensions and Drum Width for the different reel
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer’s limited warranty.
- Made in the U.S.A. – Sold & Supported Worldwide.
- SWIVEL – Non-corrosive external fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet.
- U SHAPED FRAME DESIGN – Solid one piece electro-polished finish stainless steel U shaped frame. Professional grade, compact, lightweight and simple design.
- CNC SPUN DISCS – Heavy duty stainless steel CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- ADJUSTABLE TENSION BRAKE – Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- STEEL CONSTRUCTION – High quality stainless steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings.
- OTHER FEATURES INCLUDE – Electro-polished stainless steel finish, long lasting, chip resistant and rust inhibiting CPC powder coat finish, and direct hand crank for easy mechanical retraction.
|MODEL||I.D||O.D||LENGTH||HOSE||MAX PSI||SHIP WEIGHT (LBS)||OVERALL DIMENSIONS (W) (H) (L)||MOUNTING PATTERN (M) (N)||BASE (X) (Y)|
|112-4-75-SS||1/2″||7/8″||75′||No||4000||21||22.75″(W) 13″(H) 12″(L)||10″(M) 3″(N)||14″(X) 6″(Y)|
|117-4-225-SS||1/2″||7/8″||225′||No||4000||31||22.75″(W) 18″(H) 17″(L)||10″(M) 3″(N)||14″(X) 6″(Y)|
|117-5-100-SS||3/4″||1 1/4″||100′||No||4000||36||23.25″(W) 18″(H) 17″(L)||10″(M) 3″(N)||14″(X) 6″(Y)|
