Coxreels Static Discharge Hand Crank Cable Reel: 200′ cable, less cable Model SDHL-200

$261.00

Static Discharge Hand Crank Cable Reel: 200′ cable, less cable

SKU: SDHL-200 Categories: , Brand:

Description

FEATURES

COXREELS® SDH Series “Static Discharge” cable reels are built heavy duty and designed for long lasting performance. They are specifically design to be used in combustible environments where the static buildup could ignite a spark and subsequent explosion.

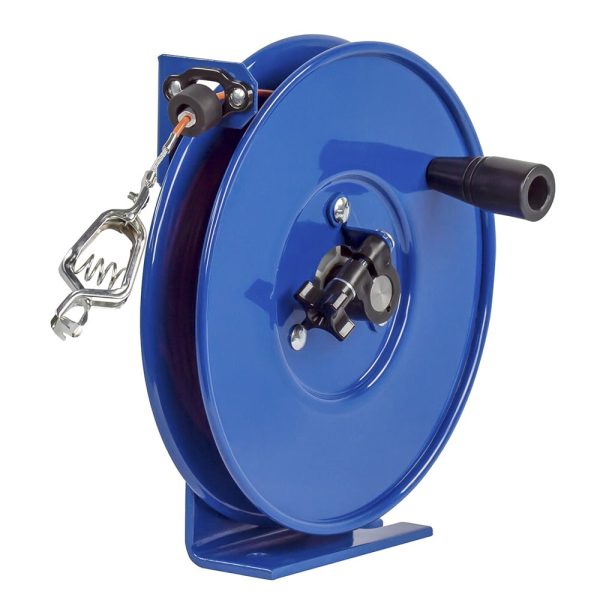

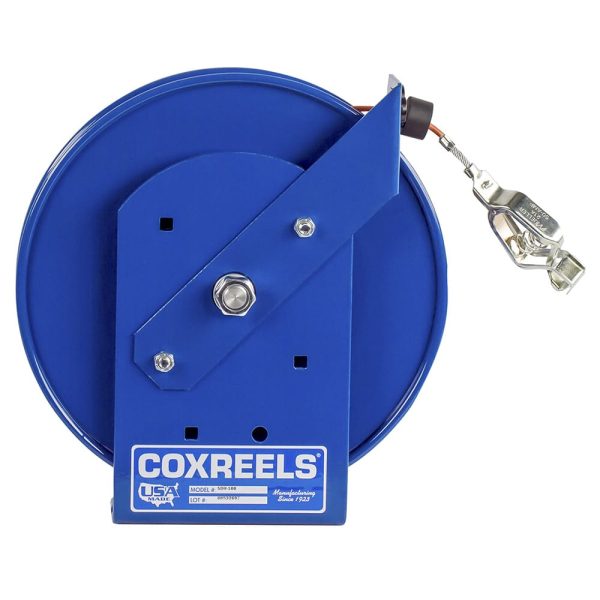

Model Shown: SDH-100. Please refer to Overall Dimensions for the different reel sizes available.

SIGNATURE FEATURES

  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer’s limited warranty
  • Made in the U.S.A. – Sold & Supported Worldwide
  • RETRACTION – Compact static discharge cable reel with direct hand crank retraction.
  • CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
  • MULTI-POSITION GUIDE ARM – Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
  • STEEL CABLE – 7 strand x 7 wire galvanized steel cable. High visibility orange vinyl cable cover.
  • OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish,and sturdy permanently lubricated precision bearings.

MODEL HOSE LENGTH SHIP WEIGHT (LBS) OVERALL DIMENSIONS (W) (H) (L) MOUNTING PATTERN (M) (N) BASE (X) (Y)
SDH-100 Yes 100′ 13 5.75″(W) 11.5″(H) 11″(L) 4″(M) -“(N) 2.5″(X) 6″(Y)
SDH-100-1 Yes 100′ 13 5.75″(W) 11.5″(H) 11″(L) 4″(M) -“(N) 2.5″(X) 6″(Y)
SDH-200 Yes 200′ 15 5.75″(W) 11.5″(H) 11″(L) 4″(M) -“(N) 2.5″(X) 6″(Y)
SDH-200-1 Yes 200′ 15 5.75″(W) 11.5″(H) 11″(L) 4″(M) -“(N) 2.5″(X) 6″(Y)
SDHL-200 No 200′ 10 5.75″(W) 11.5″(H) 11″(L) 4″(M) -“(N) 2.5″(X) 6″(Y)

Additional information

Weight 10 lbs
Dimensions 11 × 5.75 × 11.5 in
Brand

Length

200 ft
Fluid
