Coxreels Vacuum Only Front Crank Rewind: 1 1/2″ I.D., 50′ hose capacity, less hose Model V-1175-850-C
$1,274.00
Vacuum Only Front Crank Rewind: 1 1/2″ I.D., 50′ hose capacity, less hose
- Description
- Additional information
Description
FEATURES
COXREELS® V1175 Series hand crank vacuum hose reels are available in both vacuum only and vacuum/pneumatic combinations. Both are designed to extract unwanted fumes, particles and by-products from your work area. The vacuum/pneumatic models have dual plumbing for vacuum extraction while simultaneously powering pneumatic tools such as grinders and sanders in an enclosed efficient system.

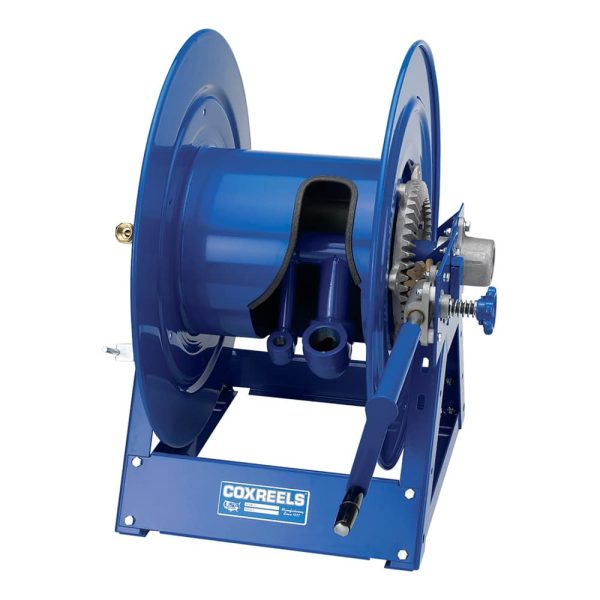

Model Shown: V1175-850-C. Please refer to Overall Dimensions for the different reel sizes available.
SIGNATURE FEATURES
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
- VACUUM SWIVEL – Designed to fit 1-1/2″ 29HG vacuum hose.
- “A” FRAME – Sturdy one piece, all CNC robotically welded 1/4″ steel “A” frame base with double dupported axle, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- ADJUSTABLE TENSION BRAKE – Tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage.
- OUTLET RISER – Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, and bevel top crank for easy mechanical retraction.
| MODEL | DESCRIPTION | I.D | LENGTH | HOSE | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
| V-1175-850 | Vacuum Only, Direct Crank | 1 1/2″ NPT | 50′ | No | 118 | 23.63″(W) 18″(H) 17″(L) | 14.88″(M) 16″(N) | 17.13″(X) 20.25″(Y) |
| V-1175-850-C | Vacuum Only, Bevel Front Crank | 1 1/2″ NPT | 50′ | No | 121 | 22″(W) 26.13″(H) 24″(L) | 14.88″(M) 16″(N) | 17.13″(X) 20.25″(Y) |
| V-1175-850-T | Vacuum Only, Bevel Top Crank | 1 1/2″ NPT | 50′ | No | 121 | 22″(W) 26.13″(H) 24″(L) | 14.88″(M) 16″(N) | 17.13″(X) 20.25″(Y) |
| VA-1175-850 | Vacuum & Air, Rim Rewind | 1 1/2″ NPT | 50′ | No | 123 | 21.75″(W) 26.13″(H) 24″(L) | 14.88″(M) 16″(N) | 17.13″(X) 20.25″(Y) |
| VA-1175-850-C | Vacuum & Air, Bevel Front Crank | 1 1/2″ NPT | 50′ | No | 121 | 21.75″(W) 26.13″(H) 24″(L) | 14.88″(M) 16″(N) | 17.13″(X) 20.25″(Y) |
| VA-1175-850-T | Vacuum & Air, Bevel Top Crank | 1 1/2″ NPT | 50′ | No | 121 | 21.75″(W) 26.13″(H) 24″(L) | 14.88″(M) 16″(N) | 17.13″(X) 20.25″(Y) |
