Gar-Bro 2 Wheeled Concrete Carts

Description

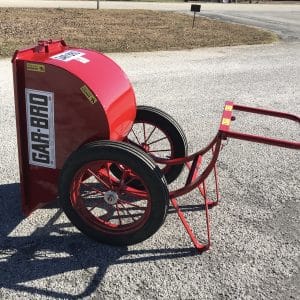

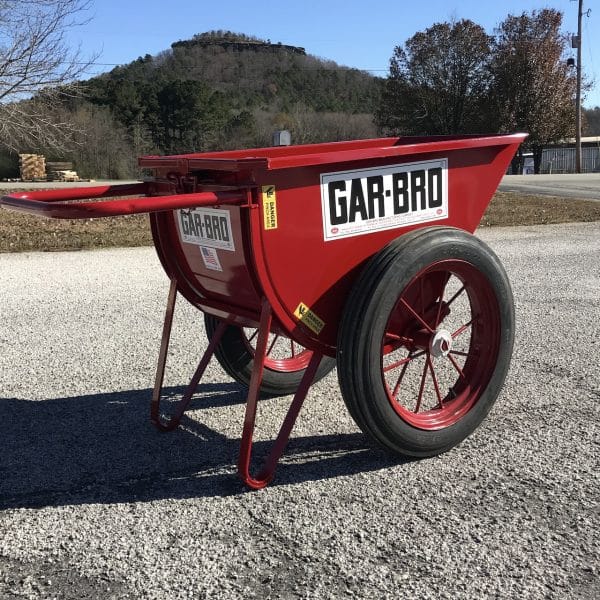

Gar-Bro 2 Wheeled Concrete Carts (700 Series)

Engineered for rugged job site performance, the Gar-Bro 700 Series 2-Wheeled Concrete Carts are the industry standard for manual concrete placement. Designed with precision balance, these heavy-duty buggies place the bulk of the payload weight directly over the axle, drastically reducing handle lift effort and minimizing operator fatigue.

Whether navigating narrow forms, elevated decks, or rough terrain, Gar-Bro concrete carts provide exceptional stability, smooth mobility, and long-lasting durability.

Key Features & Design Highlights

• Precision Balance: Perfectly proportioned geometry ensures full-capacity loads are easily handled and maneuvered with minimal lifting force at the handle.
• Heavy-Duty Steel Construction: Built with heavy-gauge welded steel bodies and reinforced rim edges to handle harsh concrete slurries and abrasive site conditions.
• Enhanced Pour Control: Tapered tray layout allows for precise, targeted concrete placement with minimal spillage.
• Jobsite Versatility: Modular model options accommodate overhead crane rigging, high-angle rocker dumping, and specialized steel wheel configurations.

Model Variations Explained

• Capacity Indicators (704, 705, 706):
  • 704: 4 Cu. Ft. Capacity — Compact width for narrow access walkways and tight pours.
  • 705: 5 Cu. Ft. Capacity — Mid-size option balancing high payload with nimble handling.
  • 706: 6 Cu. Ft. Capacity — High-capacity cart for maximum volume per trip.
• Configuration Suffixes:
  • R (Rocker Dump): Equipped with roll-over rocker rails that allow smooth, high-angle tipping for clean, effort-free discharge. Fitted with 4.00 x 18 pneumatic tires.
  • SW (Steel Wheels): Features heavy-duty solid steel wheels for high-heat environments, sharp debris, or severe puncture-hazard jobsites.
  • LL (Lifting Lugs): Factory-integrated heavy-duty crane/hoist lifting lugs welded directly to the frame, meeting job site standards for overhead rigging between multi-story levels.

Product Matrix & Model Comparison

Applications

Ideal for commercial slab pours, bridge decks, residential foundations, vault construction, and industrial sites where power buggies or concrete pumps are impractical or unavailable.
