Jenny Belt Drive Ventilation Units
Price range: $113.75 through $1,396.50
- Description
- Additional information
Description

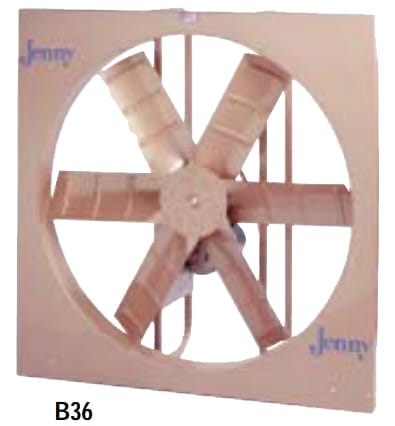

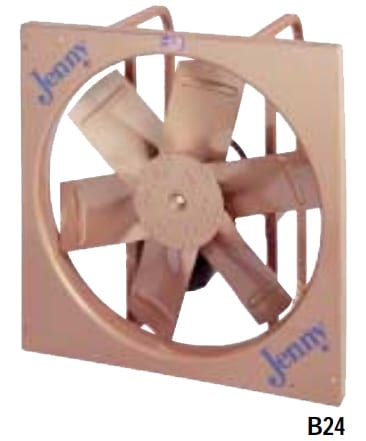

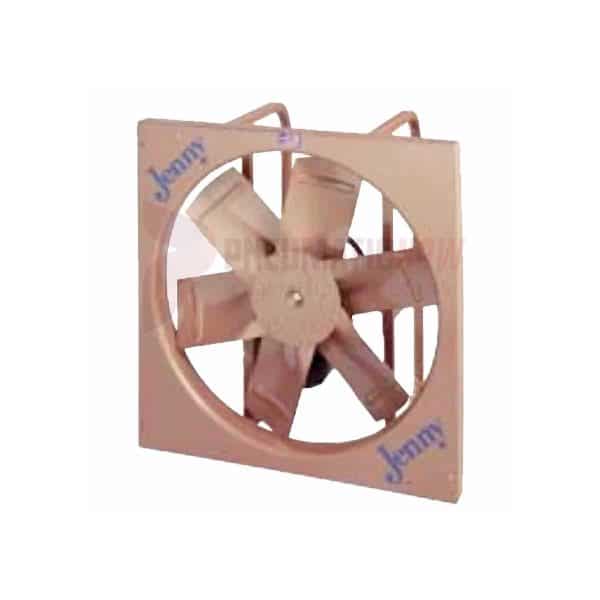

Jenny Belt Drive Ventilation Units
Rugged, long lasting belt driven ventilation units are available in three sizes ranging from 24″ to 36″. They meet all OSHA specifications and will operate in either the vertical or horizontal position. Designed to move large volumes of air economically, these units require minimum maintenance and are operational in all weather conditions.
Features
â– Fully assembled. Ready to operate.
â– Each size fan has its own properly matched, formed venturi for highest possible performance.
â– Heavy gauge, corrosion resistant aluminum blade.
â– Sturdy, all welded construction, steel frame.
â– Corrosion resistant powder coated finish.
â– Rugged safety guard standard with each model.
â– Easy installation.
â– All two speed models come equipped with necessary control or switch.
â– All motors are totally enclosed with built-in automatic reset overload protection.
| Blade Size | Model | H.P | R.P.M. | Shp. Wgt. | 0″ S.P. | CFM 1/8″ S.P. |
1/4″ S.P |
|---|---|---|---|---|---|---|---|
| 24 | B2425 | 1/4 | 635 | 62 | 3590 | 2810 | 1875 |
| B2425-2 | 1/4-1/12 | 635-420 | 67 | 3590-2370 | 2810-1860 | 1875-1250 | |
| B2433 | 1/3 | 680 | 64 | 3850 | 3010 | 2010 | |
| B2433-2 | 1/3-1/9 | 680-450 | 73 | 3850-2540 | 3010-1940 | 2010-1330 | |
| 30 | B3025 | 1/4 | 455 | 68 | 4900 | 4400 | 2660 |
| B3025-2 | 1/4-1/12 | 455-300 | 73 | 4900-3230 | 4400-2900 | 2660-1755 | |
| B3033 | 1/3 | 500 | 70 | 5390 | 4840 | 2920 | |
| B3033-2 | 1/3-1/9 | 500-330 | 79 | 5390-3560 | 4840-3200 | 2920-1930 | |
| B3050 | 1/2 | 635 | 75 | 6850 | 6160 | 4110 | |
| B3050-2 | 1/2-1/6 | 635-420 | 82 | 6850-4530 | 6160-4070 | 4110-2730 | |
| B3075 | 3/4 | 680 | 88 | 7330 | 6596 | 4400 | |
| 36 | B3633 | 1/3 | 380 | 89 | 6320 | 5680 | 3700 |
| B3633-2 | 1/3-1/9 | 380-250 | 98 | 6320-4170 | 5680-3750 | 3770-2490 | |
| B3650 | 1/2 | 445 | 94 | 7370 | 6620 | 4400 | |
| B3650-2 | 1/2-1/6 | 445-290 | 101 | 7370-4860 | 6620-4370 | 4400-2900 | |
| B3675 | 3/4 | 505 | 107 | 8370 | 7520 | 4990 | |
| B36100 | 1 | 540 | 113 | 9220 | 8400 | 6680 | |
| B36150 | 1-1/2 | 655 | 119 | 10860 | 10430 | 9720 |
Solving Ventilation Problems
Worldwide
Related Products
-
Ventilation
Jenny 24″ Tube Axial Fans
Price range: $1,875.75 through $2,231.25Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
Ventilation
Jenny Direct Drive Ventilation Units
Price range: $637.50 through $828.00Select options This product has multiple variants. The options may be chosen on the product pageQuick View -
Ventilation
Jenny Portable Ejector Fans
Price range: $1,349.25 through $2,077.50Select options This product has multiple variants. The options may be chosen on the product pageQuick View -

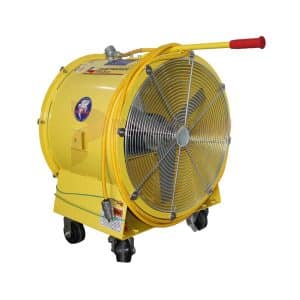

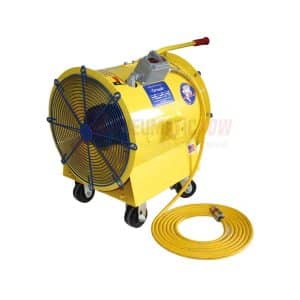

VentilationTexas Pneumatic Tools Man Coolers
Price range: $4,095.00 through $8,050.00Select options This product has multiple variants. The options may be chosen on the product pageQuick View -

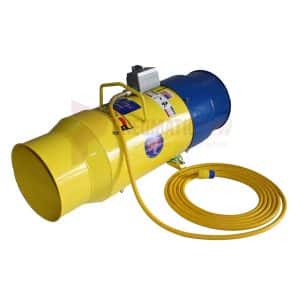

VentilationTexas Pneumatic Tools Tornado Blowers
