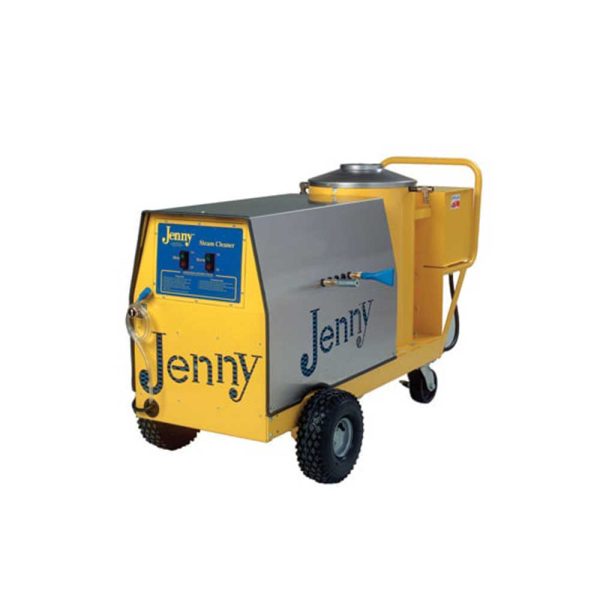

Jenny Oil Fired Steam Cleaner SJ 100-OEP

Description

Jenny Oil Fired Steam Cleaners – Steam Jenny SJ100

Jenny Oil Fired Steam Cleaners incorporate the latest state of the art engineering and manufacturing along with a tradition of building steam cleaners dating back to their revolutionary invention by Jenny in 1927. These Steam Jennys are packed with a host of standard features and equipment to allow effective and efficient cleaning.

The steamers, like all Jenny Oil Fired units, incorporate Jenny’s Twin Fire Modular Gun Burner System which features 18,000 Volt Wing Nut Removable Twin Electrode Ignition System, Belt Driven 6″ Diameter x 4″ Wide Blower System, driven off of the Main Drive Motor Adjustable Air Intake, and a Belt Driven 200 PSI 3.0 GPH Fuel Pump. This constant duty burner system allows for clean and efficient combustion of Kerosene, Diesel, #2 Home Heating Oil, or JP-4 Jet Fuel.

Jenny Steam Cleaners work in a different manner when compared to hot and cold pressure washers. Steam cleaners do not actually make steam in the sense of the word, they actually produce 85%-90% solid water and the steam is just a by-product of creating pressure through heat. The primary difference between steam cleaners and pressure washers is that steamers only attain a 100-200PSI pressure at a significantly reduced volume comparatively (70 to 120 GPH). Steamers use the 170 times water vapor expansion when the superheated water explodes into the atmosphere through the nozzle to achieve their cleaning power, whereas pressure washers simply use the pump’s pressure to achieve the similar result. This along with the fact that almost all detergents work better as the temperature increases allows steam cleaners to clean grease and oil based dirt using significantly less water and safer, milder detergents.

As a general rule, if the dirt being cleaned is oil based either animal, vegetable, or mineral – then a steam cleaner will clean it right down to the surface pores better and more thoroughly with less mess than any other type of cleaning unit available. Let a “true” 325° Steam Jenny steam cleaner do the heavy degreasing and sanitizing tasks around all types of equipment, machinery, and parts, and see the savings in time, labor, soap, and water.

Simplicity

All the controls necessary to operate a Jenny Steam Cleaner are located in plain view on the front panel of the unit. The 24 Volt Motor and Burner switches illuminate Red in the Off position and Green in the On position to easily alert the operator of the machine’s status. Specially designed bolt-on kits allow the machine to be upgraded easily to meet any cleaning needs.

Serviceability

Easy access to all the major systems and components was designed into the machine to make servicing simple. The burner assembly is simply removed with three wing nuts, two ignition plug wires, and one tube fitting. The air and fuel components are situated underneath the pump frame. The pump is serviceable by removing two carriage bolts and three hoses. Oil Fired Steam Cleaner and Oil Fired Steam Generator and Oil Fired Pressure Washer. The water control system is centrally located within the steel chassis in a manifold assembly. Removing the front panel located behind the switches exposes a large electrical junction box containing all the major electrical components and a specially designed terminal board where all the electrical connections are made. As with all Jenny machines, parts and accessories are readily available.

Quality

The year 1927 marked both the invention of steam cleaning by Jenny and the beginning of our tradition of producing only the highest quality American made cleaning equipment. Manufactured in our state of the art facility, we use only the highest quality components available employing only the best manufacturing methods and techniques to ensure that Jenny Steam Cleaners are of the highest quality available on the market.

Durability

Guaranteed with a 5 year limited warranty, the powder coated, heavy-duty, 10 gauge steel, modular chassis is designed to endure years of rigorous and demanding use and still fit through a commercial doorway. Featuring bolt-on components such as the front panel, back panel, coil casing, fuel and solution (optional), and float tanks give the units a long sleek profile. The units also have a stainless steel cover with a built in nozzle holder for the steam nozzles.

Safety

The 24 Volt Intrinsically Safe Control Voltage begins a long list of standard safety features. Other highlights include Nozzle (Trigger Gun) Control, High Temperature Protection, Over Pressure Protection, and a Ground Fault Circuit Interrupter (Single Phase Units Only).
