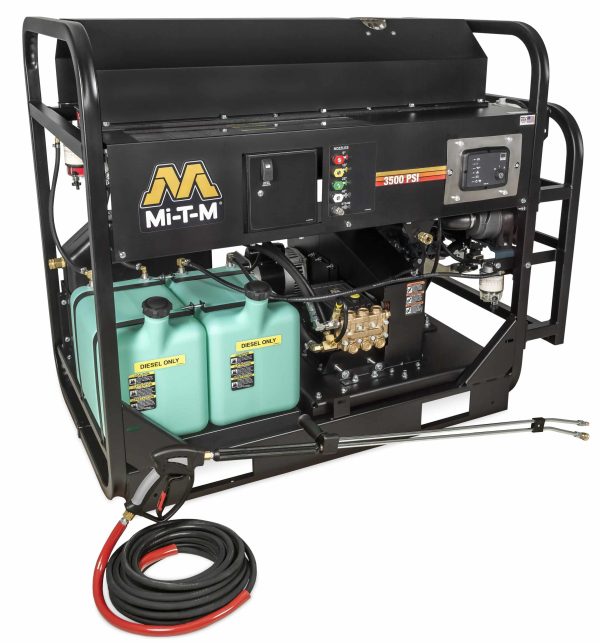

Mi-T-M 3500PSI 4.7GPM Diesel – Belt Drive Pressure Washer

Description

HS-3505-0MDK

The rugged skid frame of the HS Series makes it a great option for mounting on a trailer, giving you the capability to clean dirt, oil and grime literally anywhere.

Pump: External bypass system protects from heat build-up · Factory preset unloader · Forged brass manifold · 80-mesh, high volume, stainless-steel screen inlet water strainer

Engine: Electric start – sealed battery included

Frame: Heavy-duty powder coated steel frame

Components: 2900-watt generator · Heavy-duty dual cogged belt drive system · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · 1/2-inch schedule 80-coil with stainless-steel wrap

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided hose · Adjustable pressure insulated dual lance with trigger gun

Specifications

• PSI

  3500

• GPM

  4.7

• Horsepower/Engine

  16.8 HP Kubota Z602 OHV

• Pump

  General

• Engine Fuel Tank Capacity

  10.0 gallon

• Burner Fuel Tank Capacity

  10.0 gallon

• Burner Fuel Cons.

  3.37 gph

• BTU Per Hour

  471,800

Weights & Dimensions

• Net Weight

  836.00 lbs.

• Shipping Weight

  940.00 lbs.

• Length

  56.50 in.

• Width

  34.00 in.

• Height

  46.00 in.

DOWNLOAD PRODUCT SHEET
