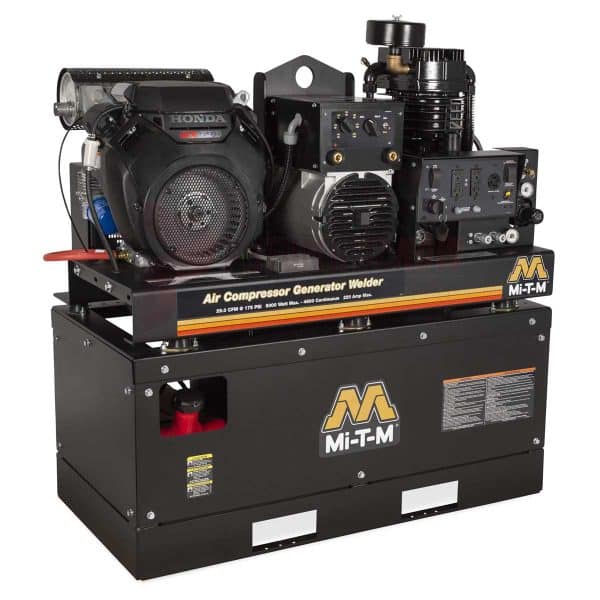

Mi-T-M AGW Series Air Compressor / Generator / Welder Combination Units

Description

Mi-T-M AGW Series Air Compressor / Generator / Welder Combination Units

For ultimate efficiency and space savings, the Mi-T-M AGW Series brings three vital pieces of equipment into one rugged, compact unit. Engineered for field mechanics, remote construction sites, and emergency repair technicians, this lineup combines a powerful two-stage air compressor, a heavy-duty generator, and an arc welder into a single powerhouse. Driven by a single engine, the AGW Series dramatically reduces the footprint on your service truck, lowers the cost of maintaining separate machines, and delivers premium, professional-grade performance exactly when and where you need it.

Core Features & Specifications

The Air Compressor:

• Construction: Features a heavy-duty, two-stage cast iron pump designed to deliver high-volume air (15.7 to 30.5 CFM at 90 PSI, depending on the model) to run impact wrenches, pneumatic drills, and tire inflation tools.
• Longevity: Splash lubricated with an oil level sight indicator, paired with a large canister intake filter to ensure smooth, clean operation.
• Plumbing: Built with a durable stainless-steel braided discharge hose, a 150-PSI maximum rated regulator, and dual gauges for monitoring both tank and outlet pressure.

The Generator:

• Power Output: Brush-type 2-pole 120V/240V alternator delivering up to 5000 peak watts and 4500 rated watts of clean AC power.
• Clean Energy: Built with 100% copper windings and less than 6% Total Harmonic Distortion (THD), making it perfectly safe for powering sensitive electronics, diagnostics, and battery chargers.
• Outlets: Equipped with (2) 120V, 20A GFCI duplex receptacles and (1) 120V/240V, 20A twist lock for maximum tool flexibility.

The Welder:

• Versatility: DC current arc welder with a 50A to 220A working range (varies by model), giving you the capacity to handle light fabrication to heavy-duty equipment repair on the spot.
• Duty Cycle: Robust duty cycles that support sustained field welding, including up to 150A continuous at a 100% duty cycle on 14-HP models.

The Build & Frame:

• Construction: Powder-coated ASME coded receiver tanks (on 20-gallon and 30-gallon models) or heavy-duty base mount plates for space-restricted utility beds. Features a 14- or 16-gauge powder-coated belt guard.
• Mounting: Built to handle job site vibrations, especially when paired with recommended vibration isolator pads for truck mounts.
• Starting: Reliable electric start configuration for immediate power delivery (note: battery and battery cables may not be included depending on the model).

Model Configurations & Series Breakdown

The AGW series features several distinct setups tailored to your power needs and the spatial limitations of your service truck.

AGW-SH22-20M (The High-Output 20-Gallon Unit)

• Engine: Powerful 688cc Honda GX690 OHV.
• Compressor Output: 30.5 CFM @ 90 PSI.
• Tank: 20-gallon ASME receiver tank.
• Welder Specs: 50-220A working range (220A @ 40% duty cycle, 150A @ 100%).
• Ideal for heavy-duty contractors requiring maximum air delivery and higher welding amperages while keeping the tank size relatively compact.

AGW-SM14-30M & AGW-SV14-30M (The 30-Gallon Units)

• Engine: 420cc Mi-T-M OHV engine (SM14) or 408cc Vanguard OHV engine (SV14).
• Compressor Output: 16.4 CFM @ 90 PSI.
• Tank: 30-gallon ASME receiver tank for excellent air reserve.
• Welder Specs: 50-170A working range (150A @ 100% duty cycle).
• Perfect for service trucks that need a high air capacity buffer for sustained pneumatic tool use.

AGW-SM14-B & AGW-SV14-B (The Base-Mount Units)

• Engine: 420cc Mi-T-M OHV engine (SM14) or 408cc Vanguard OHV engine (SV14).
• Compressor Output: 16.4 CFM @ 90 PSI.
• Tank: Tankless “Base-Mount” configuration.
• Welder Specs: 50-170A working range (150A @ 100% duty cycle).
• Designed for maximum truck bed space. These units are built on a base plate without an integrated air tank, allowing you to tie the compressor into an existing auxiliary air system or plumb it directly to a separate storage tank on your rig.
