Mi-T-M Air Compressor / Generator Combination Units

Description

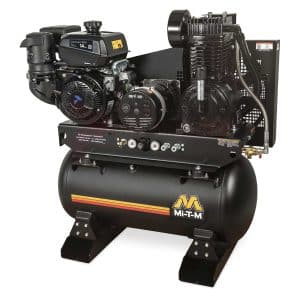

Mi-T-M Air Compressor / Generator Combination Units (AG1 & AG2 Series)

Increase your job site productivity and maximize your space by merging two vital pieces of equipment into one versatile machine. The Mi-T-M AG1 and AG2 series Air Compressor / Generator combination units are designed for demanding industrial applications requiring both reliable air power and electrical power simultaneously. Ideal for work trucks, construction sites, and mobile service professionals, these combo units eliminate the need to haul and maintain separate machines.

Whether you need a highly portable 8-gallon unit, a high-capacity 30-gallon stationary model, or a truck-bed-ready base-mount configuration, the Mi-T-M lineup provides premium performance tailored to your specific demands.

Core Features & Specifications

The Compressor Pump: Built for longevity and continuous industrial use, the compressor components deliver consistent air delivery for your pneumatic tools.

• Heavy-Duty Construction: Quality cast iron compressor pump featuring a cast iron head for optimal heat dissipation.
• Lubrication: Splash lubricated cast iron crankcase to extend the hours of performance and ensure smooth operation.
• Intake & Discharge: Equipped with a large canister intake filter and a durable stainless-steel braided discharge hose for maximum life.
• Monitoring: Convenient oil level sight indicator.
• Performance: Single-stage (AG1) and Two-stage (AG2) options available, providing high CFM outputs suited for heavy pneumatic demands.

The Generator: Power your electrical tools, lights, and diagnostic equipment with clean, reliable AC power.

• Alternator: Industrial-grade brushless alternator.
• Power Quality: 100% copper windings with Total Harmonic Distortion (THD) of less than 5-6%, ensuring safe operation for sensitive electronics.
• Outlets: Equipped with robust NEMA receptacles (configurations vary by model, typically including 120V 20A and 240V 20A options).

The Frame & Build:

• Durability: Powder-coated tank receivers and a 16-gauge powder-coated two-piece belt guard.
• Vibration Control: A heavy-duty 3/16-inch base plate effectively dampens vibration to protect internal components and reduce noise.
• Portability (8-Gallon Models): Features rugged 10-inch flat-free tires for easy maneuverability across rough job site terrain.
• Components: Features manual drain valves for proper tank maintenance, a quality pilot valve unloader, and dedicated gauges for both tank and outlet pressure.

Model Configurations & Series Breakdown

The Mi-T-M compressor/generator line is highly customizable. The model numbers denote the specific engine, pump stage, tank size, and starting mechanism.

Engine Options:

• PH / SH: Powered by reliable Honda OHV engines (e.g., GX200, GX390).
• PK / SK: Powered by Kohler OHV engines.
• PM / SM: Powered by Mi-T-M’s proprietary OHV engines.
• PV / SV: Powered by Vanguard engines.
• SKD: Powered by Diesel engines (e.g., Kohler Diesel).

AG1 Series: Single-Stage, 8-Gallon Portable Units Perfect for standard pneumatic tools and basic electrical needs.

• Models: AG1-PH65-08M1, AG1-PM07-08M1

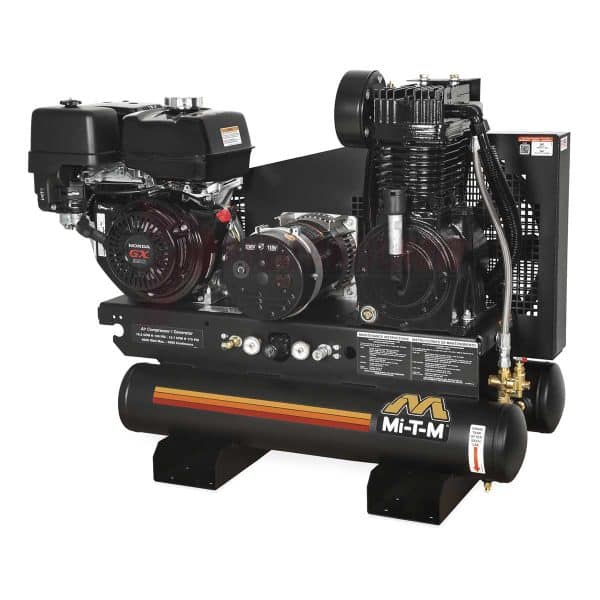

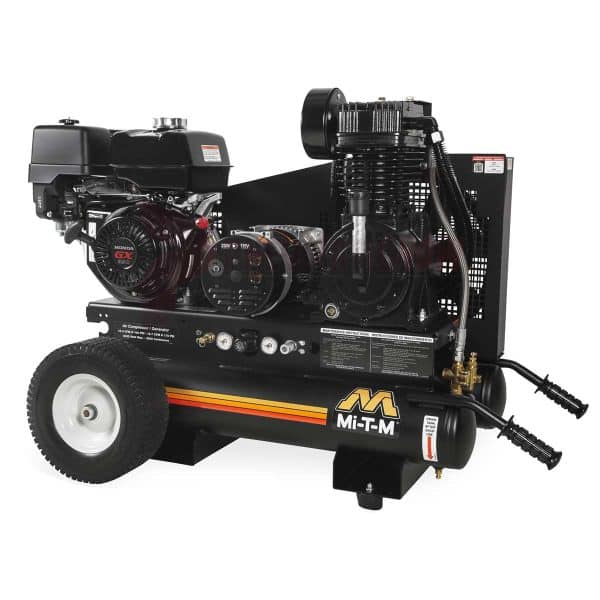

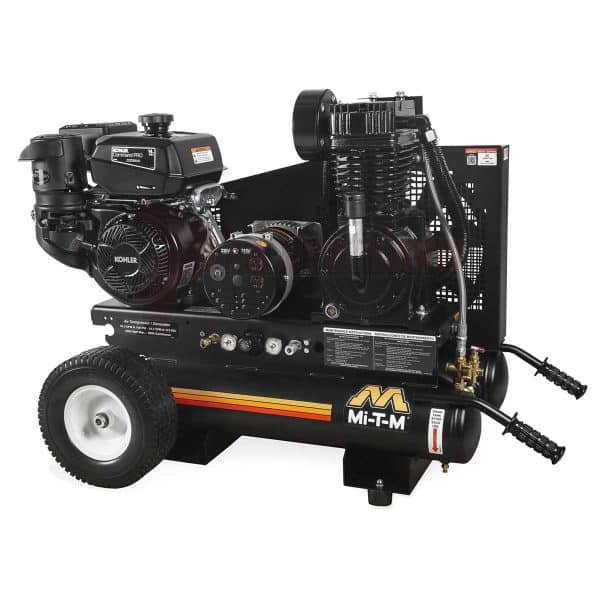

AG2 Series: Two-Stage, 8-Gallon Portable Units Higher CFM and wattage output on a highly mobile twin-tank frame.

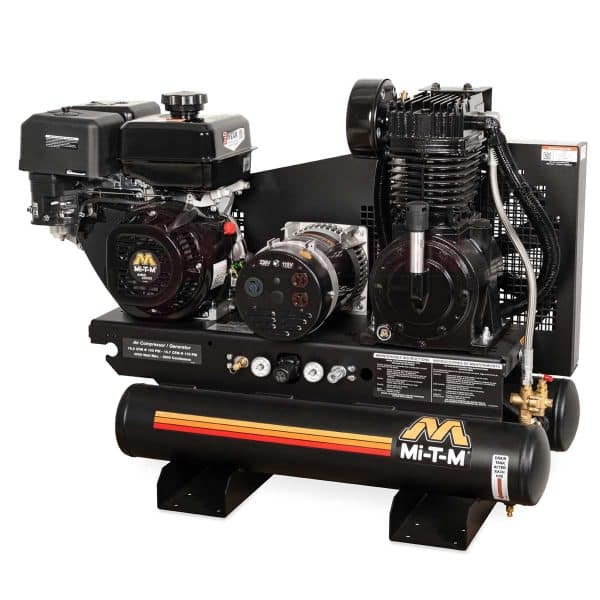

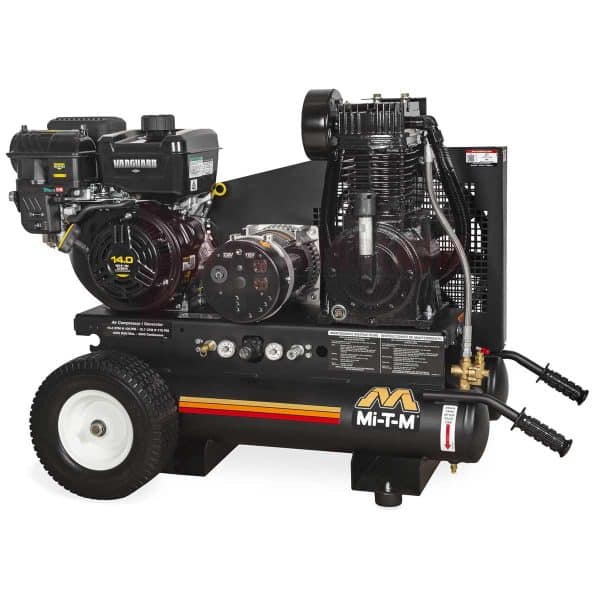

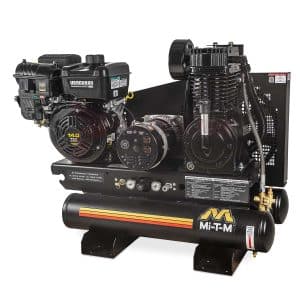

• Pull-Start Models: AG2-PH13-08M1, AG2-PK14-08M1, AG2-PM14-08M1, AG2-PV14-08M1, AG2-SH13-08M1, AG2-SK14-08M1, AG2-SM14-08M1, AG2-SV14-08M1
• Electric-Start Models: AG2-PH13-08M1E, AG2-PK14-08M1E, AG2-PM14-08M1E, AG2-PV14-08M1E, AG2-SH13-08M1E, AG2-SK14-08M1E, AG2-SM14-08M1E, AG2-SV14-08M1E

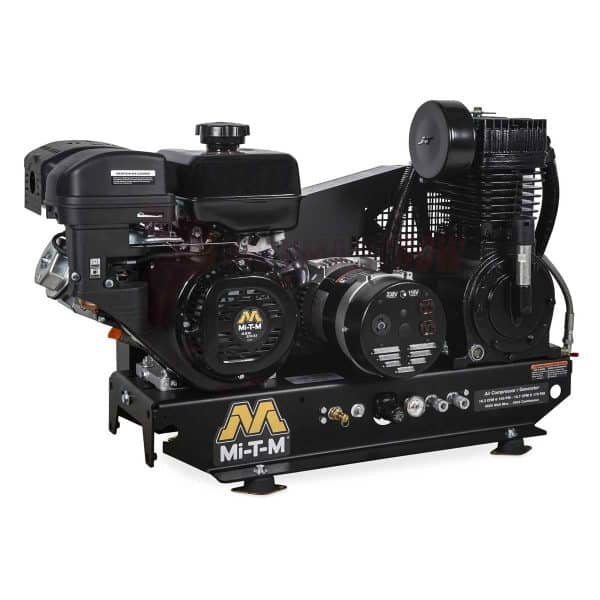

AG2 Series: Two-Stage, Base-Mount Units Designed specifically to be bolted directly into work trucks or onto trailers, omitting the air tank to tie into an existing auxiliary air tank system.

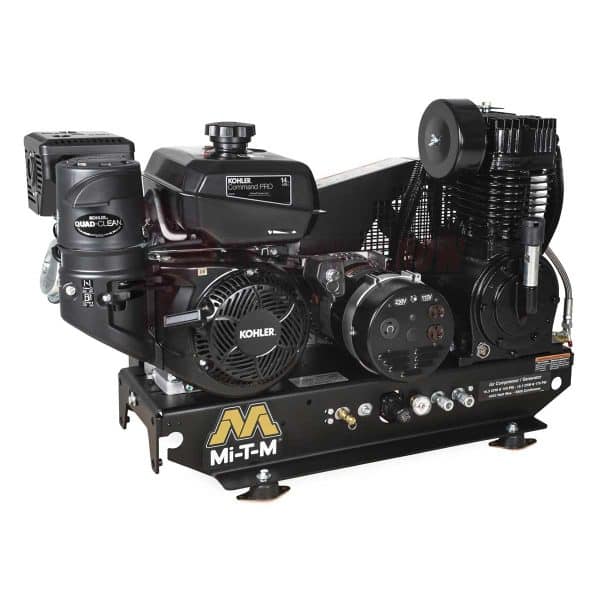

• Pull-Start Models: AG2-SH13-B, AG2-SK14-B, AG2-SM14-B, AG2-SV14-B
• Electric-Start Models: AG2-SH13-BE, AG2-SK14-BE, AG2-SM14-BE, AG2-SV14-BE

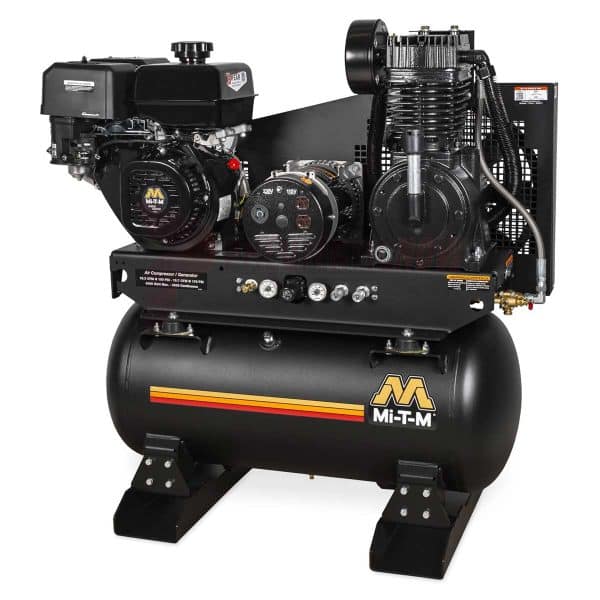

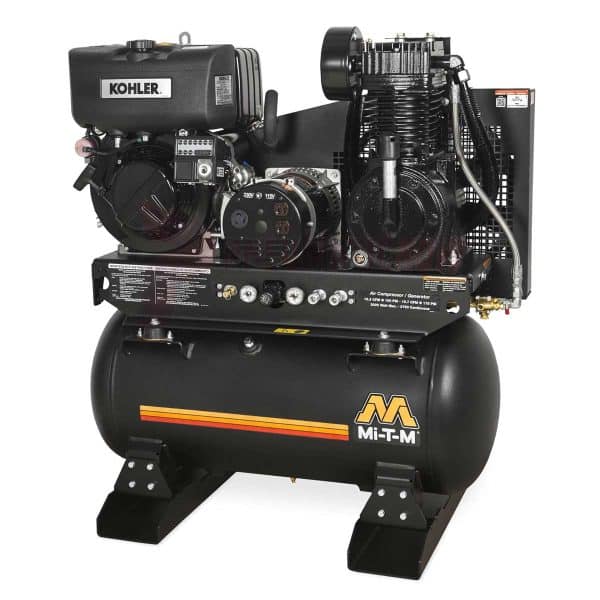

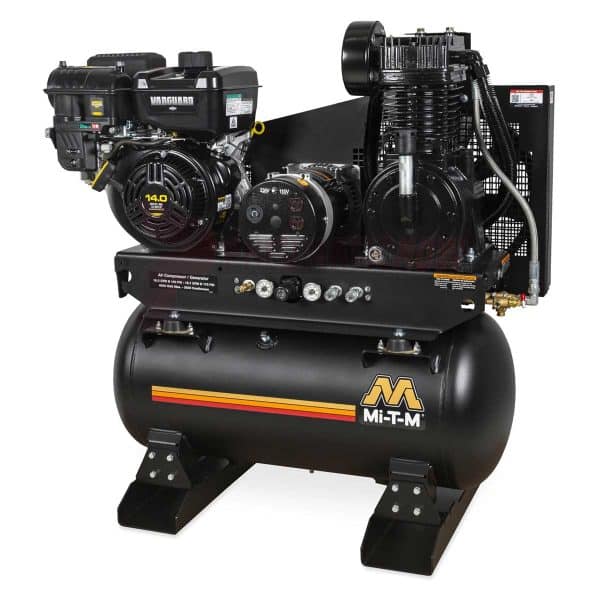

AG2 Series: Two-Stage, 30-Gallon Stationary/Truck-Mount Units Maximum air reserve capacity for high-volume shops or heavy-duty service vehicles.

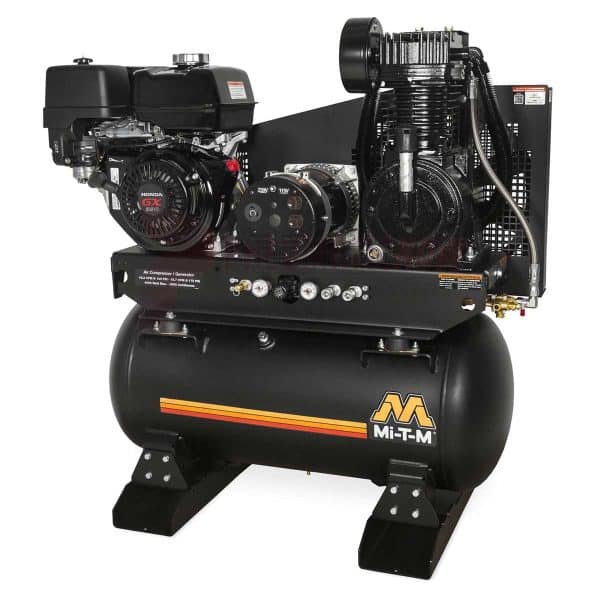

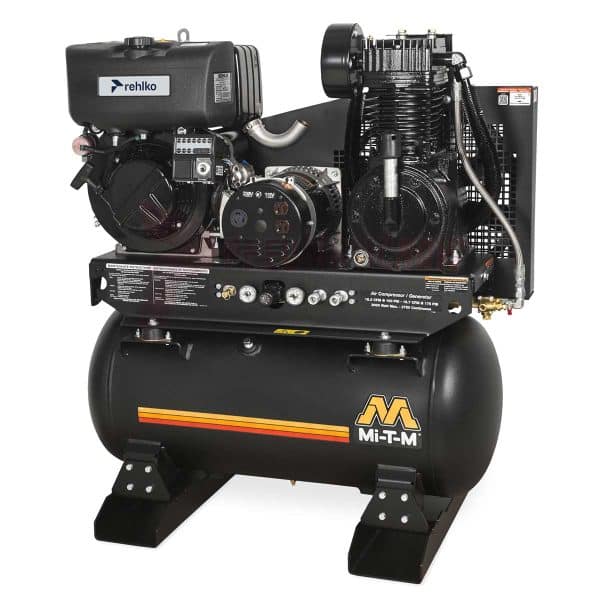

• Pull-Start Models: AG2-SH13-30M, AG2-SK14-30M, AG2-SM14-30M, AG2-SV14-30M, AG2-SKD9-30M (Diesel)
• Electric-Start Models: AG2-SH13-30ME, AG2-SK14-30ME, AG2-SM14-30ME, AG2-SV14-30ME

Warranties

Mi-T-M stands behind its equipment with robust limited warranties, typically including a 2-Year Alternator warranty, a 2-Year Pump Exchange warranty, and a 3-Year Engine warranty (engine warranties may vary slightly depending on the manufacturer).

(Note: Electric start (“E”) models do not typically include the battery, battery box, or cables. All gasoline models sold in California must be CARB compliant; please verify state compliance prior to ordering.)
