Multiquip MRH Series Walk-Behind Tandem Drum Compaction Roller
Price range: $19,691.20 through $21,242.40
- Description
- Additional information
Description

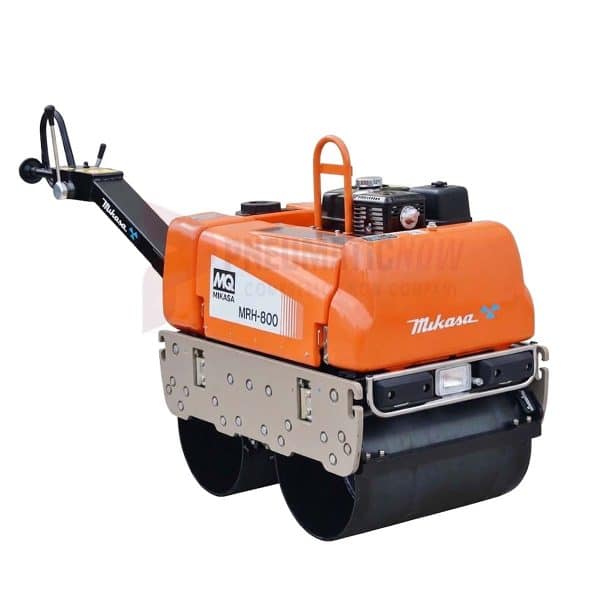

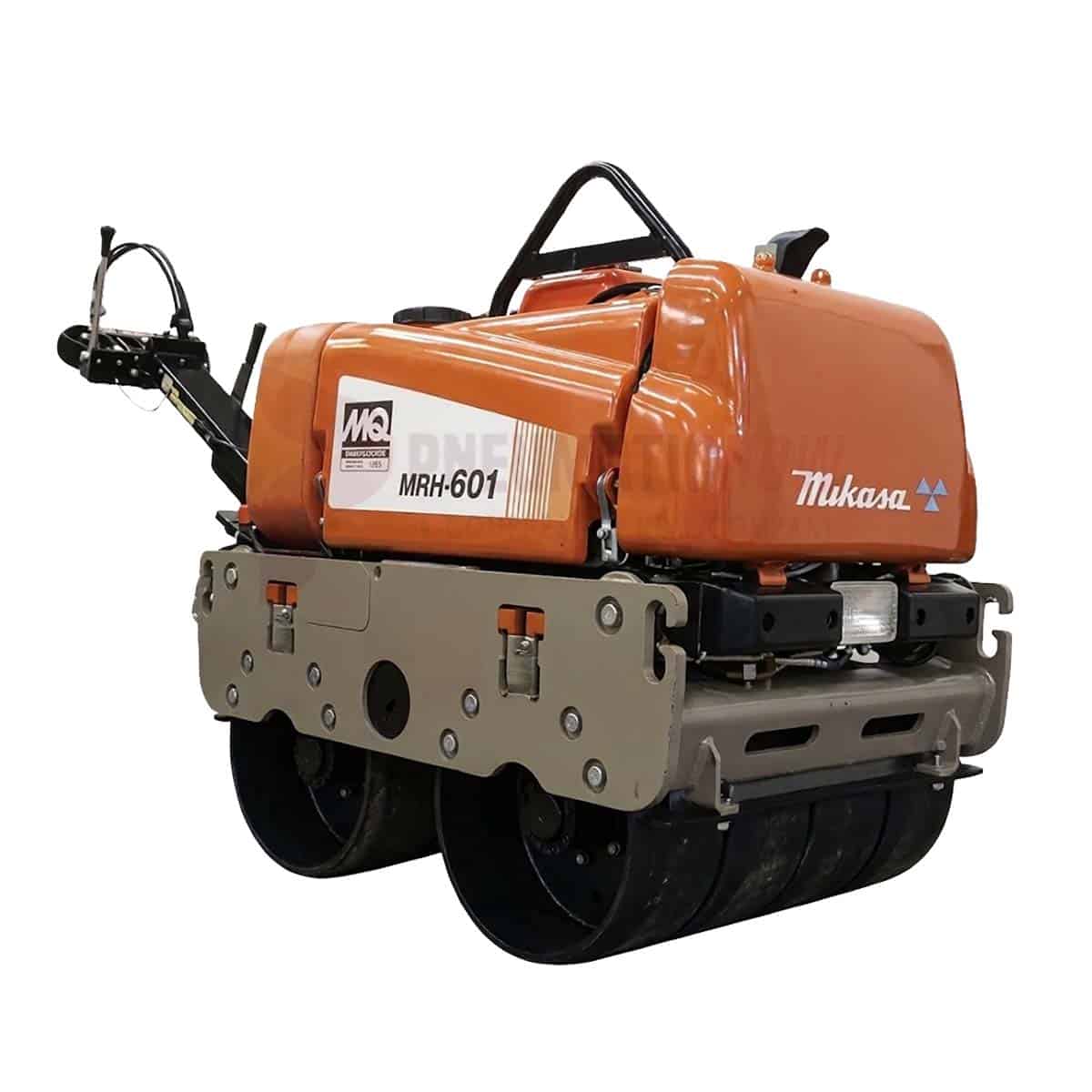

Multiquip MRH Series Walk-Behind Tandem Drum Compaction Roller
Multiquip Tandem Drum Rollers
Double-drum rollers easily tackle large asphalt compaction jobs and feature built-in water tanks, hydrostatic drive and spray bars. The MRH800-Series tandem rollers feature a streamlined design that allows access to tighter areas. These versatile rollers are ideal for asphalt patching or compaction of granular soils.
| Key Features | |
|---|---|
| •   Engine options – Honda gasoline or Kubota diesel liquid cooled engines. • Hydraulic drive system – provides smooth machine operation. • Automatic shut-off button – located at the top of the handle keeps the   operator safe when actuated. • Hour meter – measures runtime • Electromagnetic clutch – for fast and smooth engagement of vibrator   function. • Plastic Water tank – eliminates rust. • Fold-up guide handle – for easy transport and storage. • Narrow profile – for less than one-inch wall clearance. |
 |
Specifications: |
MRH601DS |
MRH800GS |
|---|---|---|
| Weight lbs (kg) | 1,248 (566) | 1,530 (694) |
| Height in (mm) | 47 (1,195) | 46.1 (1,171) |
| Width in (mm) | 27.2 (692) | 27.2 (692) |
| Length in (mm) | 89.2 (2,265) | 105.1 (2,670) |
| Drum Diameter in (mm) | 14 (355) | 16 (406) |
| Drum Width in (mm) | 25.6 (650) | 25.6 (650) |
| Vibrating Frequency vpm | 3,300 | 3,300 |
| Centrifugal Force lbs (kn) | 2,428 (10.8) | 5,283 (23.5) |
| Traveling Speed mph (kph) | 0-1.86 (0-3) | 0-1.86 (0-3) |
| Gradeability | 35% | 35% |
| Water tank gal (l) | 7.9 (30) | 10.6 (40) |
| Engine | Kubota EA-330-E3 |
Honda GX390 |
| Fuel | Diesel | Gas |
| HP rating (kw) | 6.2 (4.6) | 11 (8.2) |
Notice: Features and equipment specifications are subject to change without notice.
