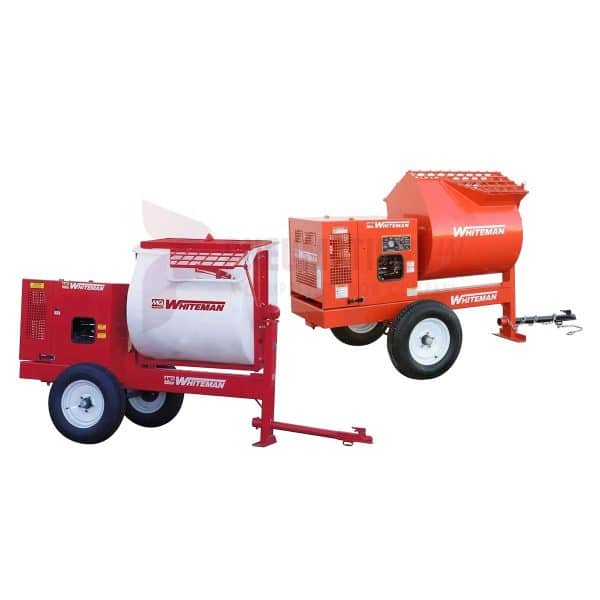

Multiquip WM Plaster/Mortar Mixer – Steel and Polyethylene Drum

Description

Multiquip WM Plaster/Mortar Mixer – Steel and Polyethylene Drum

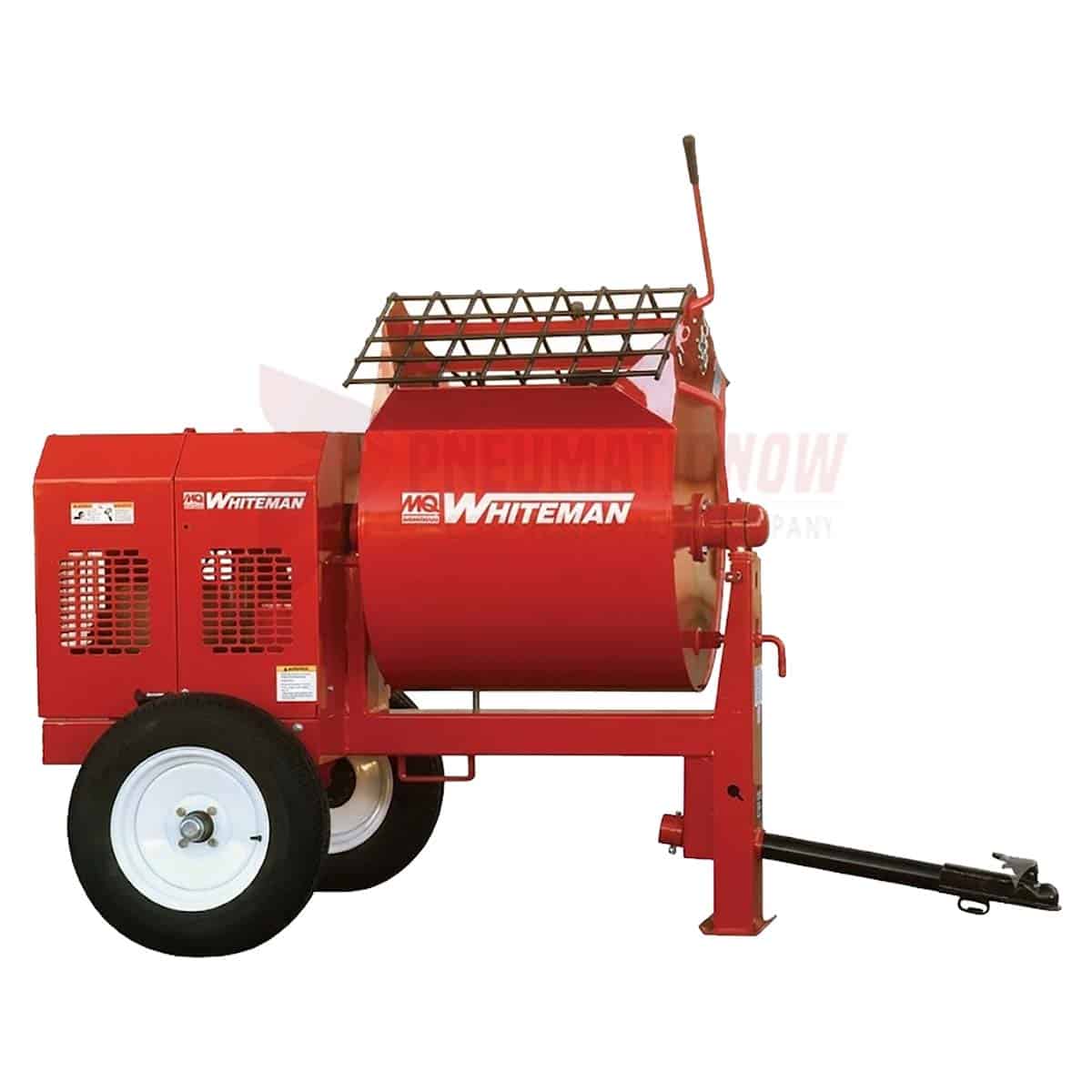

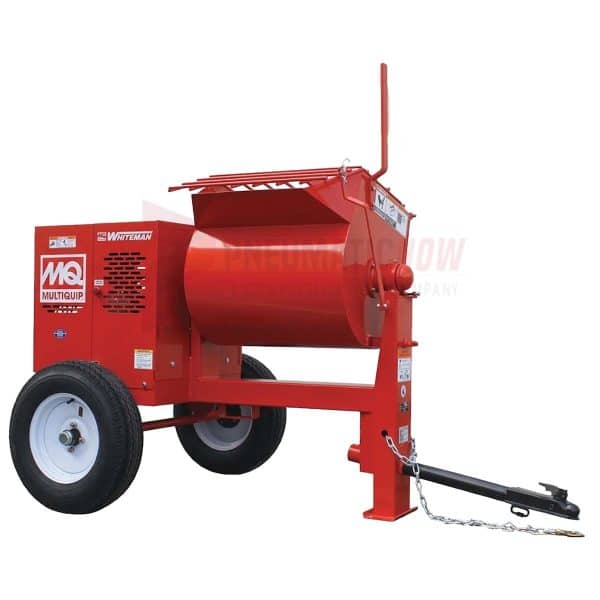

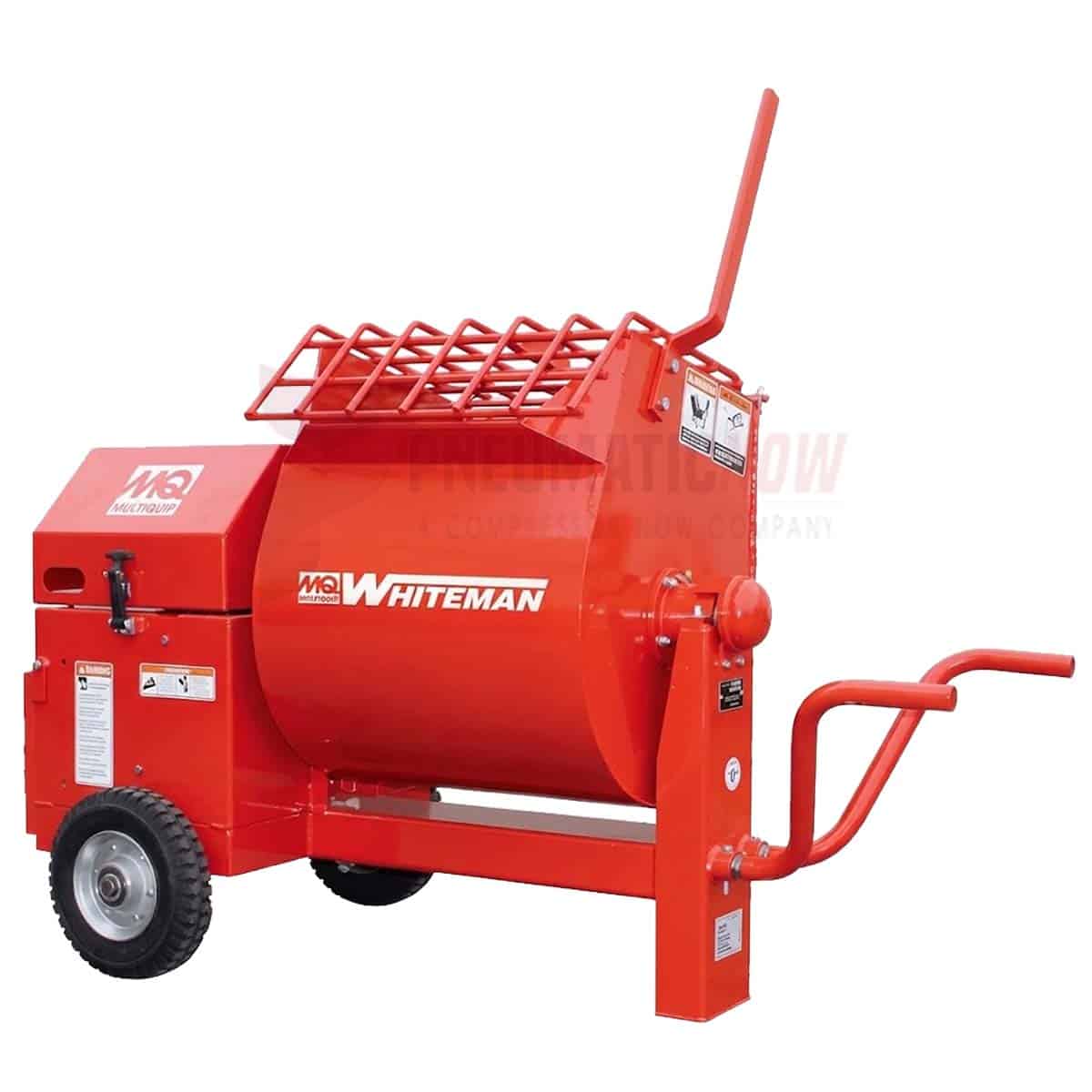

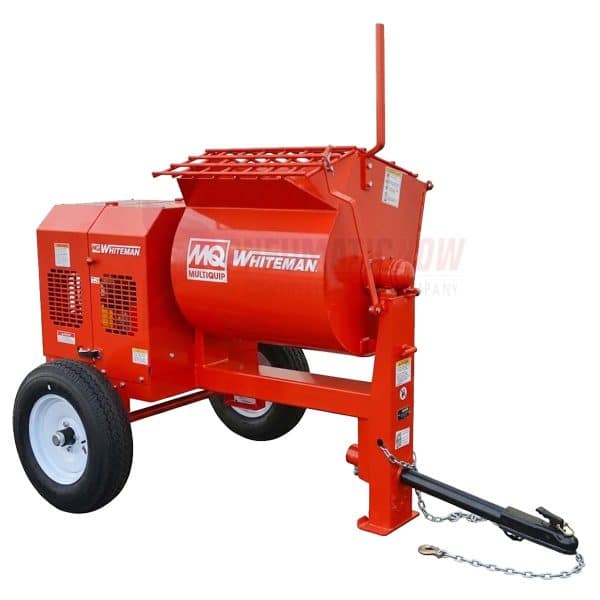

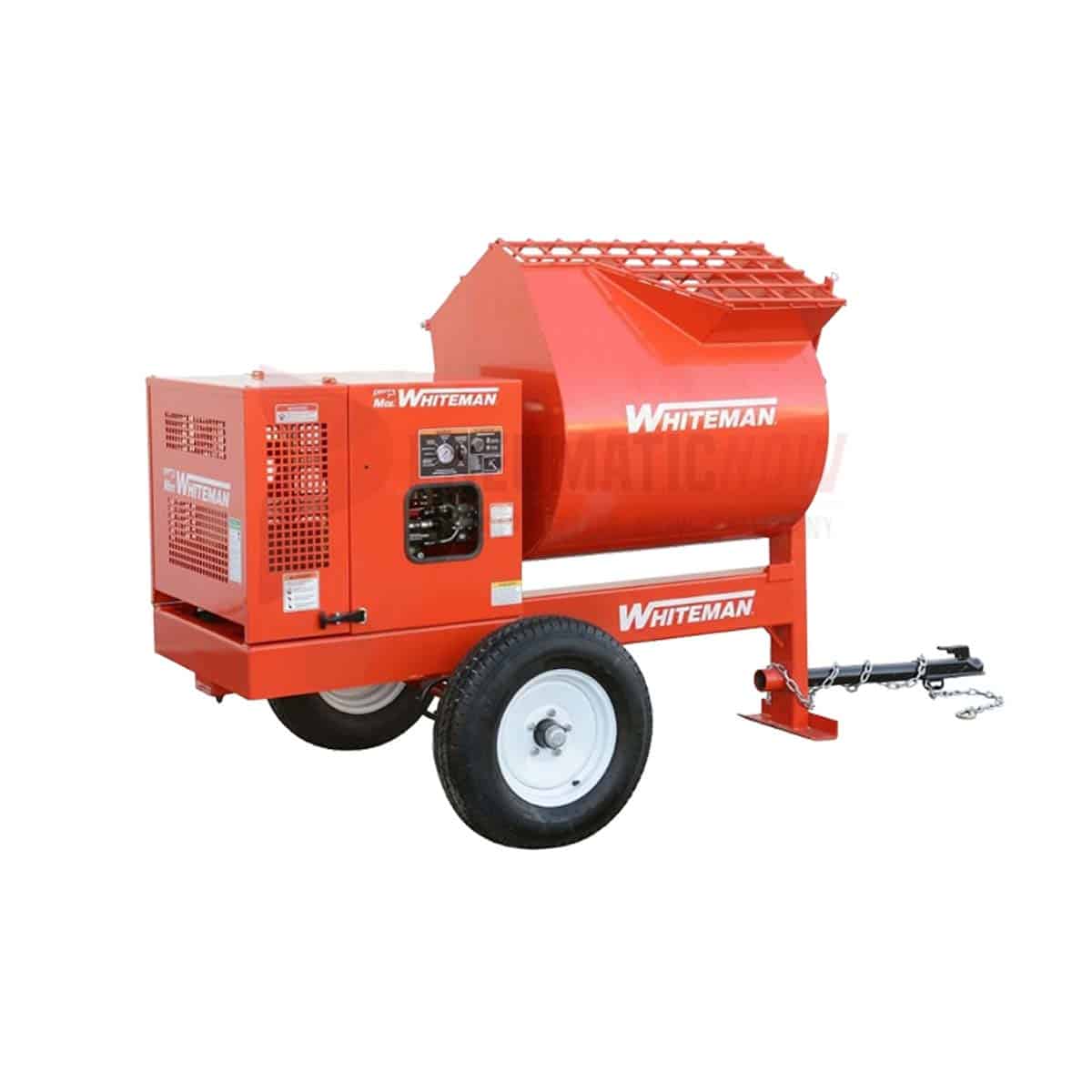

Whiteman Steel-Drum Plaster/Mortar Mixers

Whiteman’s towable mixers have the features, quality, and engineering excellence preferred by the contractor and equipment rental industry. Our steel plaster/mortar mixers are available in a full range of sizes and engine configurations.

Plaster/Mortar Mixers – Steel-Drum Models
Model	WM45	WM63	WM70S	WM90S	WM120SHD (Hydraulic)
Capacity – cu.ft. (liters)	4.5 (113)	6.3 (178)	7 (93)	9 (248)	12 (340)
Capacity – bags	1/3 to 1	1½ to 2	1½ to 2½	2½ to 3½	3½ to 4
Power Sources**	1.0 HP 1ø 115/230V Electric 4.8 HP Honda	1.5 HP 1ø 115/230V Electric 4.8 HP Honda 7.9 HP Honda 9.0 HP MPower	1.5 HP 1ø 115/230V Electric 4.8 HP Honda 7.9 HP Honda 9.0 HP MPower	3 HP 1ø 230V Electric 7.9 HP Honda 9.0 HP MPower	11.7 HP Honda
Drum Material	Steel	Steel	Steel	Steel	Steel
Average weight* – lbs. (kg)	380 (172)	574 (260)	690 (313)	785 (356)	1,010 (454)
Length w/tongue x W x H – in. (cm)	67×28.5×41 (170x65x104)	92.5x51x54.6 (235×129.5×137)	98x50x56 (248x127x142)	98x50x59 (248x127x150)	82x51x60 (208x130x152)
Height including handle – in. (cm)	60 (152)	54.6 (1384)	73 (185)	77 (196)	75 (191)
Discharge height – in. (cm)	7.5 (19)	18 (46)	21 (53)	21 (53)	17 (43)
Drive	V Belt/Gear	V Belt/Gear	V-Belt	V-Belt	Hydraulic
Dump Action	Manual	Manual	Manual	Manual	Hydraulic Dump
Towable	No	Yes	Yes	Yes	Yes

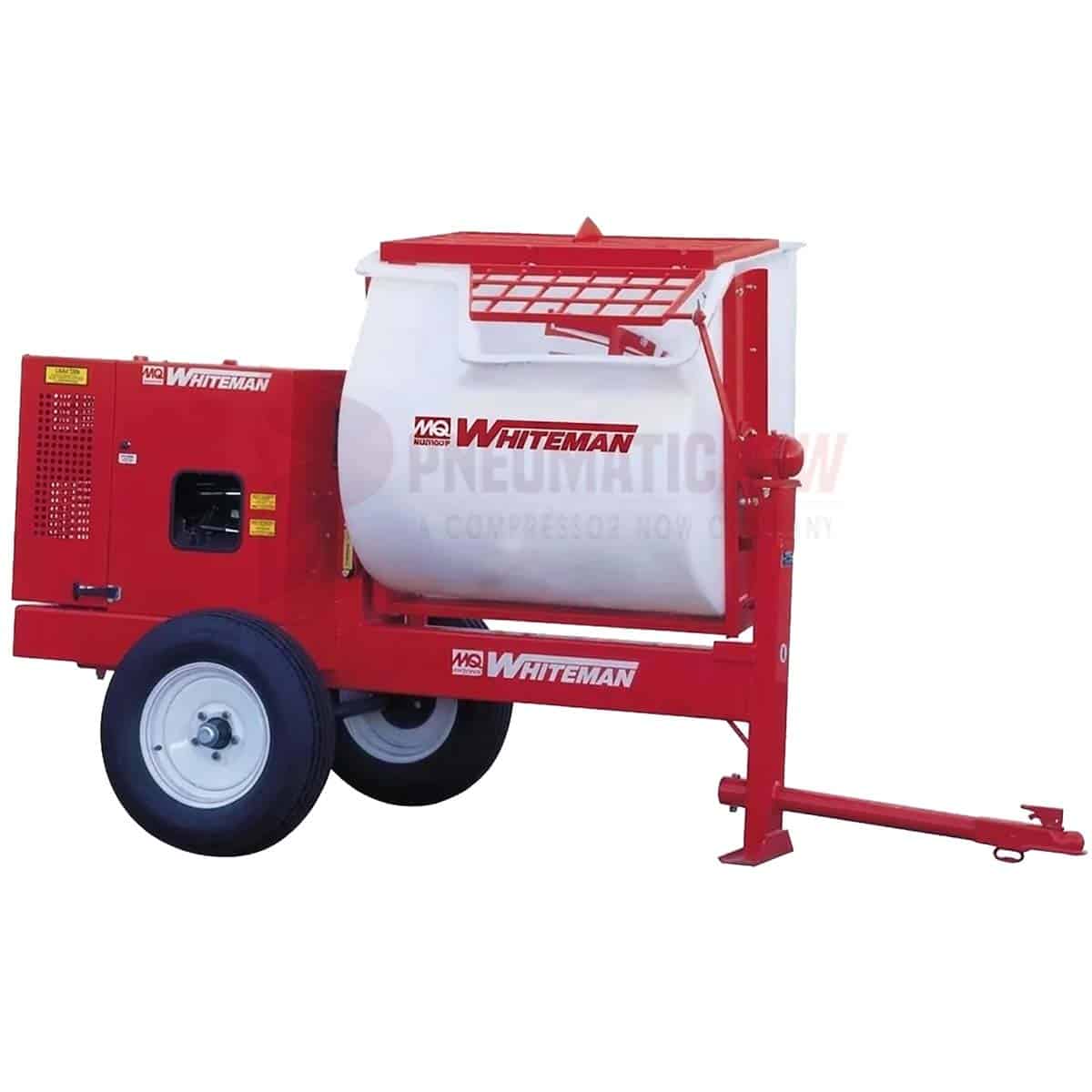

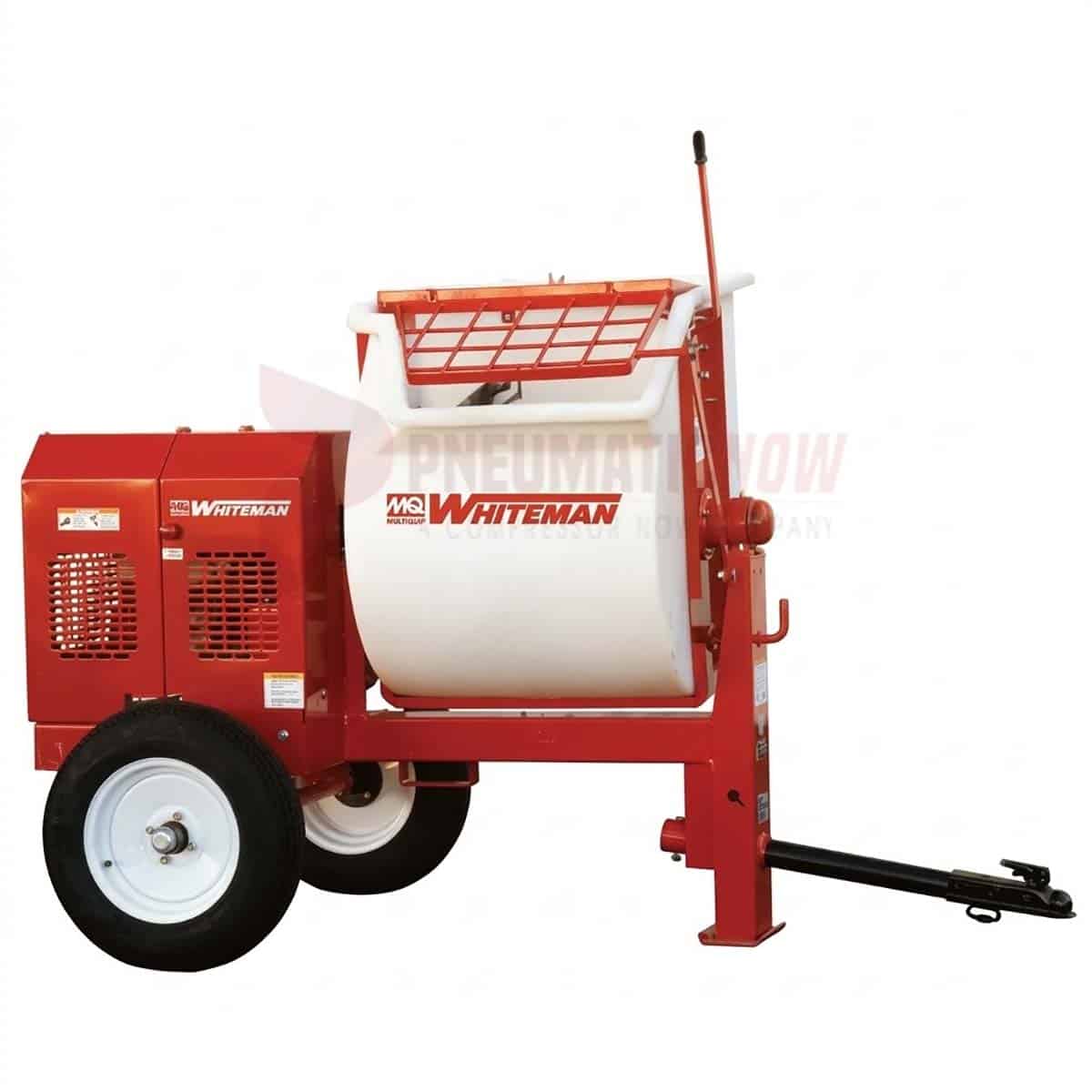

Plaster/Mortar Mixers – Poly-Drum Models
Model	WM70P	WM90P	WM120PHD (Hydraulic)
Capacity – cu.ft. (liters)	7 (93)	9 (248)	12 (340)
Capacity – bags	1½ to 2½	2½ to 3½	3½ to 4
Power Sources**	1.5 HP 1ø 115/230V Electric 4.8 HP Honda 7.9 HP Honda 9.0 HP Mpower	3 HP 1ø 230V Electric 7.9 HP Honda 9.0 HP Mpower	11.7 HP Honda
Drum Material	Polyethylene	Polyethylene	Polyethylene
Average weight* – lbs. (kg)	690 (313)	785 (356)	1,010 (454)
Length w/tongue x W x H – in. (cm)	98x50x56 (248x127x142)	98x50x59 (248x127x150)	82x51x60 (208x130x152)
Height including handle – in. (cm)	73 (185)	77 (196)	75 (191)
Discharge height – in. (cm)	21 (53)	21 (53)	17 (43)
Drive	V-Belt	V-Belt	Hydraulic
Dump Action	Manual	Manual	Hydraulic Dump

* Mixer weight shown is an average; exact weight is dependent upon power source.
** Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. Multiquip Inc. and its subsidiary companies makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy of the engine power rating. Users are advised to consult the engine manufacturer’s owners manual and its website for specific information regarding the engine power rating.
* Actual mix capacity based on a 94lb. bag of Portland cement. May vary depending on aggregate size and mix design.
