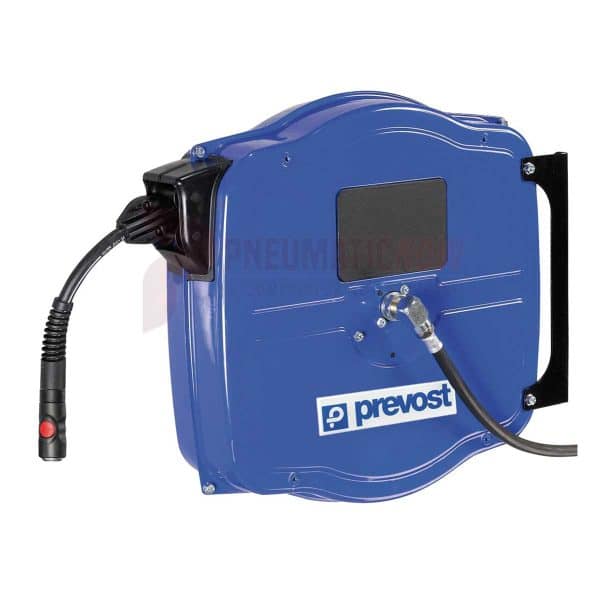

Prevost DGF Hose Reels

Description

Prevost DGF Hose Reels | DGF Series Retractable Air Hose Reel

Heavy-Duty Steel Casing | High-Flow Performance | Industrial Durability

Maximize efficiency and safety on your shop floor with the Prevost DGF Series Hose Reel. Engineered for the most demanding industrial environments, the DGF series moves beyond standard plastic housings, utilizing a rugged steel casing with an epoxy powder coating. This ensures your reel withstands impact, abrasion, and daily heavy use without cracking or fading.

Designed for automotive workshops, assembly lines, and maintenance bays, this reel keeps your air supply accessible when you need it and safely retracted when you don’t—eliminating trip hazards and protecting expensive air hoses from being run over by vehicles.

Why Choose the Prevost DGF Hose Reels?

1. Built to Last (Steel Construction) Unlike consumer-grade reels that shatter under impact, the DGF features a robust hot-dip galvanized steel shell protected by UV-resistant electrostatic powder paint. It is built to survive the harsh reality of welding shops, tire centers, and manufacturing plants.
2. Superior Air Flow Don’t choke your air tools. The DGF Series is designed with a high-flow swivel and large internal passages to minimize pressure drop. This means your impact wrenches and grinders get the full power they need to work efficiently.
3. Flexible Installation The included mounting bracket allows for fixed mounting or can be paired with an optional swivel bracket, letting the hose follow the operator as they move around the bay. It can be mounted on walls, ceilings, or beams, adapting perfectly to your workspace layout.
4. Smooth Operation Featuring a reliable ratchet mechanism, the hose locks easily at the desired length. When you are finished, a quick tug retracts the hose smoothly and evenly, thanks to the precise spring return system.

Purchase Your Model

Select the specific diameter and length for your application below:

• 3/8″ x 33′ (Rubber Hose / High Flow Profile): Ideal for general shop use and high-flow tools.
• 5/16″ x 33′ (Rubber Hose / Industrial Profile): Perfect for lighter assembly tools and blow guns.
• 1/2″ x 33′ (Rubber Hose / Automotive Profile): Heavy-duty capacity for impact wrenches and large volume requirements.

Official Technical Specifications

For complete technical data, installation diagrams, and the full catalog of Prevost piping solutions, please visit the official Prevost distributor site:

View Full DGF Hose Reels Specifications at AirPipingSales.com

Key Specs at a Glance

• Casing Material: Hot-Dip Galvanized Steel (UV-Resistant Powder Coat)
• Hose Material: Heavy-Duty Rubber (NBR/CR-SBR)
• Connection: Pre-equipped with Prevost Prevo S1 Safety Couplers (ISI, ESI, or USI profiles)
• Pressure Rating: Max 174 PSI (12 Bar)
• Temp Range: +5°F to +100°F
• Retraction: Automatic Spring Return with Guide Roller
