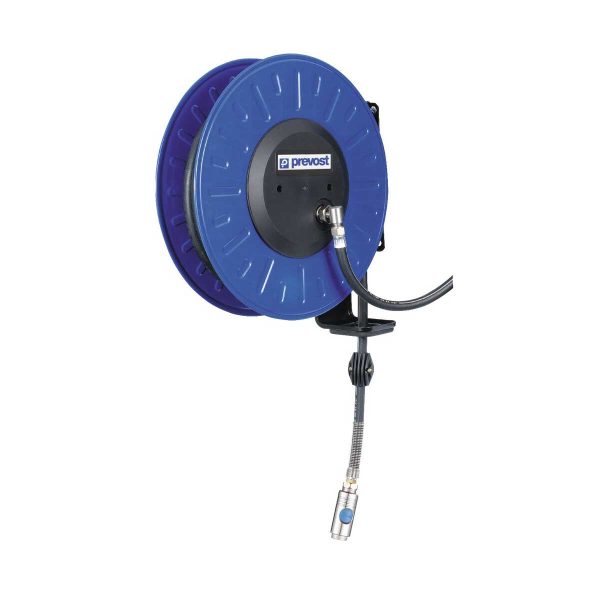

Prevost DLO Series, Extra Large, Rubber Hose Model DLO 1330IS
Prevost DLO Series, Extra Large, Rubber Hose Model DLO 1330IS

Prevost DLO Series, Extra Large, Rubber Hose Model DLO 1330IS

Original price was: $1,636.00.Current price is: $1,472.40.

SKU: DLO 1330IS Categories: , Brand:

Description

DLO Series – Extra Large – Rubber hose

High capacity model equipped with 7/16” ID quick coupling

Characteristics

  • Hot-dip galvanized molded steel housing with UV-resistant polyester based electrostatic powder paint
  • Rubber hose
  • Steel protection spring
  • Fixed bracket
  • Optional 140° swivel bracket, ref. DLO PIV
  • Air inlet: 40” supply hose fitted on 360 degree rotating coupling
  • Temperature: +5 deg F to +100 deg F

Outlet Coupling

Air outlet with 7/16” coupling:

  • prevo S1 ESI and ISI quick safety coupling Coupling profile: European 13/32” Flow diameter (model DLO ES) Coupling profile: ISO 6150 series B (model DLO IS)
  • ISG 11 quick safety coupling Coupling profile: ISO 6150 series B (model DLO)
  • prevo S1 USI quick safety coupling Coupling profile: Truflate interchange profile

prevost dlo series hose reel

Reference ID (in) Length (ft) Coupler Flow rate (cfm) Swivel inlet BSPP male thread Weight (lb) A inch B inch
DLO 1330IS 1/2″ 98′ ISI 11EB 30 1/2″ MBSP 85.99 24.213 24.016
DLO 1625IS 5/8″ 82′ ISI 11EB 60 1/2″ MBSP 90.4 24.213 24.016
DLO 1920IS 3/4″ 65′ ISI 11EB 85 1″ MBSP 92.61 24.213 24.016
DLO 1330US 1/2″ 98′ USI 11EB 30 1/2″ MBSP 85.99 24.213 24.016
DLO 1625US 5/8″ 82′ USI 11EB 60 1/2″ MBSP 90.4 24.213 24.016
DLO 1920US 3/4″ 65′ USI 11EB 85 1″ MBSP 92.61 24.213 24.016
DLO 1330ES 1/2″ 98′ ESI 11EB 30 1/2″ MBSP 85.99 24.213 24.016
DLO 1625ES 5/8″ 82′ ESI 11EB 60 1/2″ MBSP 90.4 24.213 24.016
DLO 1920ES 3/4″ 65′ ESI 11EB 85 1″ MBSP 92.61 24.213 24.016

Prevost Hose reels for compressed air

Additional information

Weight 85.98 lbs
Dimensions 24.213 × 24.016 in
Brand

Length

98 ft
Fluid

ID - Inside Diameter

1/2 in
Model - Series

PSI
