Texas Pneumatic Marine Blowers - Image 1

Texas Pneumatic Marine Blowers

Price range: $2,950.00 through $3,565.00

SKU: N/A Category: Ventilation Brand: Texas Pneumatic Tools

Description
Additional information

Description

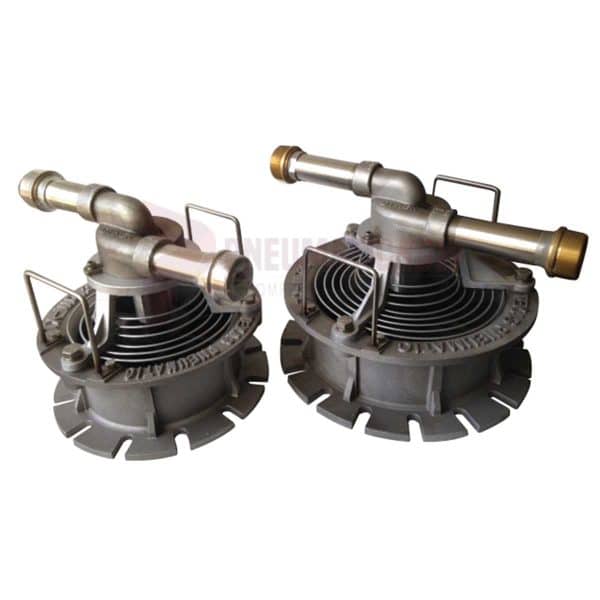

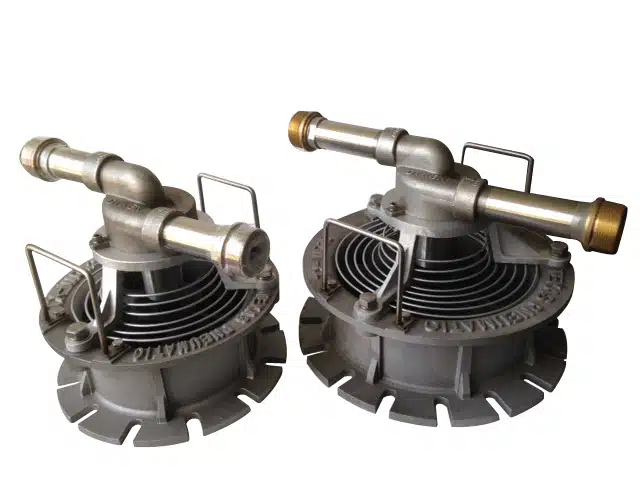

Texas Pneumatic Marine Blowers

Marine Blowers are used for degassing of tanker ships. These fans are driven by water pressure from fire fighting hoses aboard ships. The exhaust water can be sent overboard or piped back into the water supply system. These blowers can be used for supply or exhaust degassing.

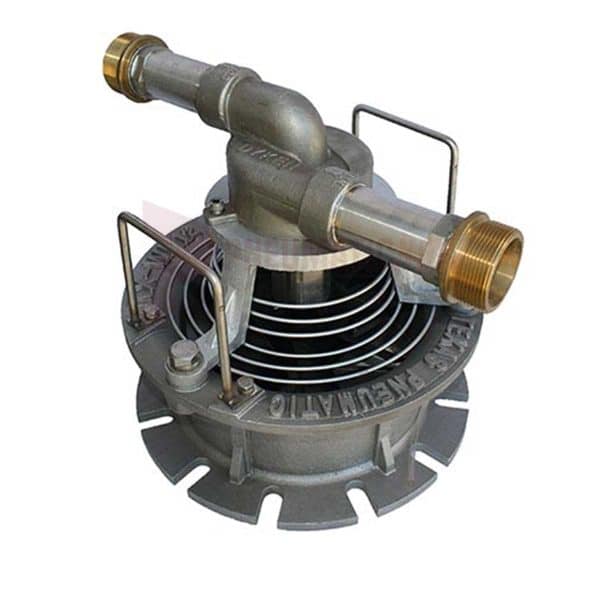

TX-WD12 – 12″ Water Driven Fan

12″ Water Driven fan with a stainless steel water motor and 2-1/2″ NST (male) connectors.

Butterworth Flange for mounting.
Used for degassing ship holds or tanks.
Stainless steel water motor housing.
Brass impeller.
Standard unit supplies air into tank.
Optional fan blade for exhausting air from tanks.
Heat treated to T6 aircraft aluminum specifications.
150 PSI maximum working pressure

Specifications:

Butterworth Flange Diameter = 18″
Weight = 56 lbs.
Water Motor Inlet/Outlet = 2″ FPT
Water Hose Connector = 2-1/2″ NST (male)
Max. Water Pressure = 150 PSI
Net shipping weight = 62 lbs.

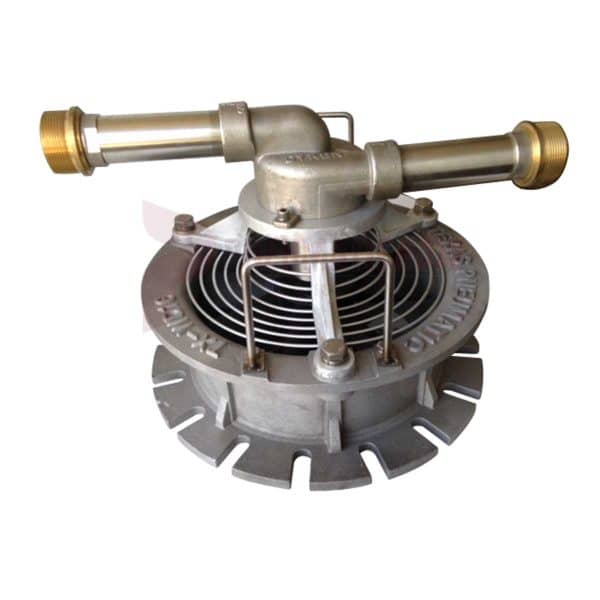

TX-WD16 – 16″ Water Driven Fan

16″ Water Driven fan with a stainless steel water motor and 2-1/2″ NST (male) connectors.

Butterworth Flange for mounting.
Used for degassing ship holds or tanks.
Stainless steel water motor housing.
Brass impeller
Standard unit supplies air into tank.
Optional fan blade for exhausting air from tanks.
Heat treated to T6 aircraft aluminum specifications.
150 PSI maximum working pressure

Specifications:

Butterworth Flange Diameter = 22″
Weight = 69 lbs.
Water Motor Inlet/Outlet = 2″ FPT
Water Hose Connector = 2-1/2″ NST (male)
Max. Water Pressure = 150 PSI
Net shipping weight = 75 lbs.

Model	Butterworth Flange Diameter	Weight	Water motor in/out	Hose Connection	Max PSI	Height	Length	Width	Shipping Weight
TX-WD12	18”	56 lbs	2” fpt	2½” NST	150 psi	19”	19”	19”	62 lbs
TX-WD16	22”	69 lbs	2” fpt	2½” NST	150 psi	19”	23”	23”	75 lbs

	OPEN LOOP FLOW DATA				CLOSED LOOP FLOW DATA
MODEL #	Water Pressure PSI/BAR	Air Flow CFM/M3/Hr	Water Consumption GPM/LPM	AVG RPM	Water Pressure PSI/BAR	Air Flow CFM/M3/Hr	Water Consumption GPM/LPM	AVG RPM
TX-WD12	100 / 6.89	3,463 / 5,884	160 / 606	4,366	100 / 6.89	2,245 / 3,814	106 / 401	2,827
	125 / 8.62	3,845 / 6,533	182 / 689	4,857	125 / 8.62	2,815 / 4,783	134 / 507	3,552
	150 / 10.34	4,096 / 6,959	193 / 731	5,185	150 / 10.34	3,269 / 5,554	155 / 587	4,097
TX-WD16	100 / 6.89	4,479 / 7,160	156 / 590	2,585	100 / 6.89	3,455 / 5,870	125 / 473	1,981
	125 / 8.62	5,567 / 9,458	190 / 719	3,214	125 / 8.62	4,329 / 7,355	153 / 579	2,491
	150 / 10.34	6,119 / 10,396	209 / 791	3,532	150 / 10.34	5,029 / 8,544	174 / 659	2,900
