Texas Pneumatic Tools Air Manifolds

Description

Texas Pneumatic Tools Air Manifolds

Air manifolds to fit almost every need.  All of our manifolds can be custom configured with various fittings for specific safety requirements.

The Texas Pneumatic Air Manifolds can be used in any industry where there is a need to have multiple outlets of compressed air to supply various pneumatic tools simultaneously.

Air Manifold Features

• All tanks are ASME coded and stamped.
• Meets OSHA guidelines for compressed air storage devices.
• Conveniently assembled TO SAVE YOU TIME.
• Drain port can be partially opened to expel moisture build-up.
• Pressure relief valve provides protection against excessive pressure build-up.
• Tanks act as moisture separators by allowing particulates to fall out of main supply line.
• Optional cage (TX-2AMF & TX-6AMF only) protects the valves and makes it easy for one person to move on the jobsite.

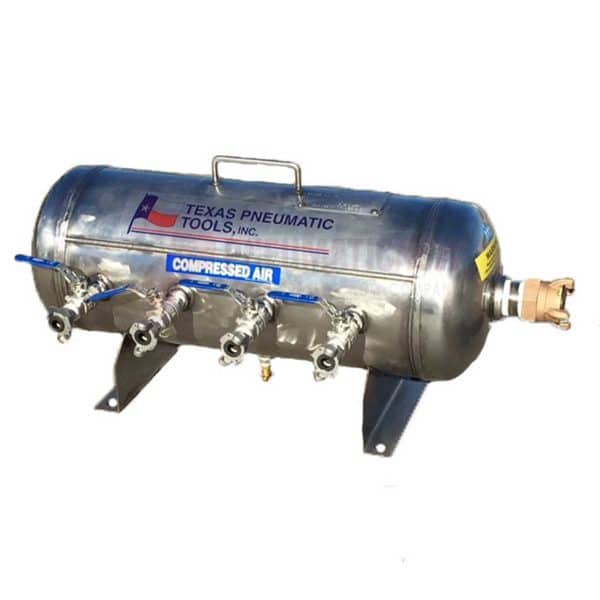

TX-2AMF-SS – Stainless Steel Air Manifold (15 Gallon, ASME Tank)

Stainless Steel Air Manifold (15 Gallon, ASME Tank)

• 15 Gallon Air Manifold (ASME Tank)
• 2″ – 4 Prong (Bull Hose) Inlet Coupling
• 8 outlets w/ 3/4″ Ball Valves & Crow Foot Couplings
• 200 psi Pressure Relief Valve
• Drain Valve on Bottom of Tank
• Pressure Gage w/ Plastic Cover
• Units can be linked together by replacing the square plug with a hose coupling

Specifications:

• Weight = 73 lbs.
• Height = 18″
• Length = 34.5″
• Tank Diameter = 12″
• Width w/ Fittings = 22″
• Inlet Size = 2″
• Size of Outlets = 3/4″
• Working Pressure = 200 PSI
• Test Pressure = 300 PSI
• Boxed Weight = 84 lbs.

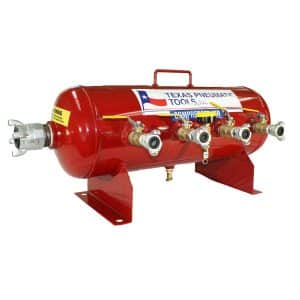

TX-2AMF – Air Manifold (15 Gal, ASME Tank)

• 15 Gallon Air Manifold (ASME Tank)
• 2″ – 4 Prong (Bull Hose) Inlet Coupling
• 8 outlets w/ 3/4″ Ball Valves & Crow Foot Couplings
• 200 psi Pressure Relief Valve
• Drain Valve on Bottom of Tank
• Pressure Gage w/ Plastic Cover
• Units can be linked together by replacing the square plug with a hose coupling

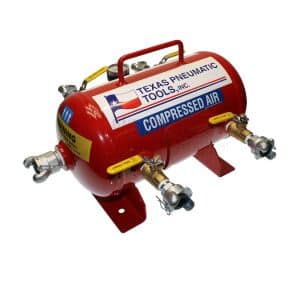

TX-3AMF – Air Manifold (2.5 Gal, ASME Tank w/ 1/2″ Ball Valves & Crowfoot Connectors)

Texas Pneumatic’s TX-3AMF is the second in it’s series of ASME coded and OSHA guideline conforming manifolds.  This smaller version is much more accommodating to carry into confined spaces such as airliners for cabin and seat repair.  It fits neatly into large toolboxes for storage.  It can be equipped with universal (crowfoot) couplers or 1/4″, 3/8″ or 1/2″ industrial quick disconnect couplers..

• Can be used in tandem to provide as many outlets as needed.
• Keep work site safer and uncluttered by having only one supply hose going to the work area.
• Meets all OSHA guidelines: ASME coded tank.
• Safety auto exhaust ball valves.
• ASME pop-off valve (200 psi) to prevent excessive pressure buildup.
• Equipped with a gauge to monitor working pressure.
• Brass drain cock to vent water droplets.

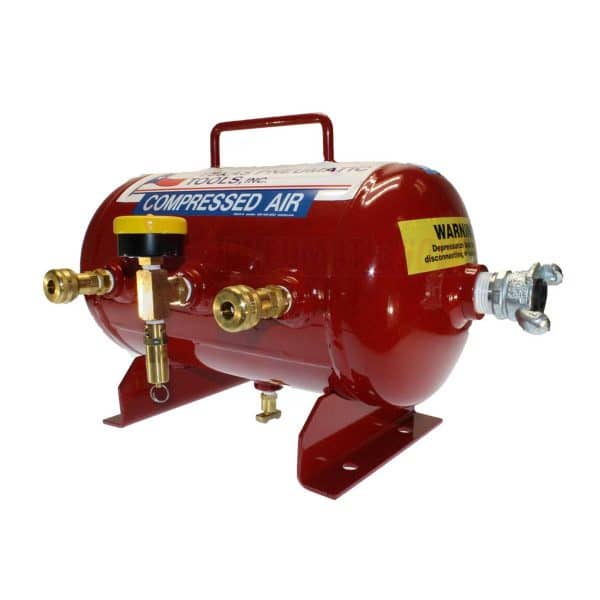

TX-3AMF-QC(1/4) – Air Manifold (2.5 Gal, ASME Tank w/ 1/4″ Industrial Quick Connect Fittings)

The Texas Pneumatic Air Manifolds can be used in any industry where there is a need to have multiple outlets of compressed air to supply various pneumatic tools simultaneously. This manifold comes with a ” air inlet and four 1/4″ outlets.  The inlet is fitted with a screened crow foot.  The outlets have 1/4″ Industrial Type Quick Connect fittings.  There is a 1/2″ ball valve located on the end of the unit for depressurization of the tank prior to disconnecting of the supply line.

TX-3AMF-QC(3/8) – Air Manifold (2.5 Gal, ASME Tank w/ 3/8″ Industrial Quick Connect Fittings)

The Texas Pneumatic Air Manifolds can be used in any industry where there is a need to have multiple outlets of compressed air to supply various pneumatic tools simultaneously. This manifold comes with a 1″ air inlet and four 3/8″ outlets.  The inlet is fitted with a screened crow foot.  The outlets have 3/8″ Industrial Type Quick Connect fittings.  There is a 1/2″ ball valve located on the end of the unit for depressurization of the tank prior to disconnecting of the supply line.

TX-3AMF-QC(1/2) – Air Manifold (2.5 Gal, ASME Tank w/ 1/2″ Industrial Quick Connect Fittings)

Air Manifold (2.5 Gal, 1/2″ Industrial Quick Connect Fittings) The Texas Pneumatic Air Manifolds can be used in any industry where there is a need to have multiple outlets of compressed air to supply various pneumatic tools simultaneously. This manifold comes with a 1″ air inlet and four 1/2″ outlets.  The inlet is fitted with a screened crowfoot connector.  The outlets have 1/2″ Industrial Interchange Quick Connect fittings.  There is a 1/2″ ball valve located on the end of the unit for depressurization of the tank prior to disconnecting of the supply line.

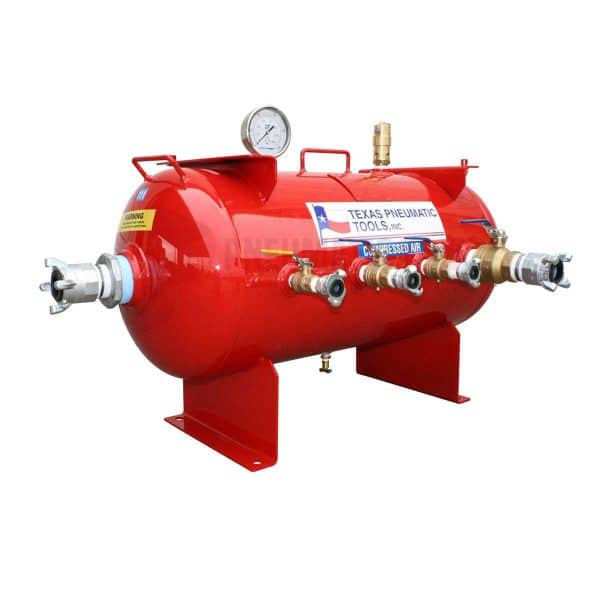

TX-4AMF – Air Manifold (30 Gal, ASME Tank)

Air Manifold (30 Gal, Asme Tank) Weight = 190 lbs. / Height = 27″ / Length = 44″ / Tank Diameter = 16″ / Width w/ Fittings = 36″ / Inlet Size = 3″ / Number of Outlets = 8 / Size of Outlets = (2) – 3/4″, (4) – 1″, (2)-2″ / Working Pressure = 200 PSI / Test Pressure = 260 PSI / Shipping Dimensions = 60x40x32

TX-5AMF – Air Manifold (60 Gal, ASME Tank)

Air Manifold (60 Gal,Asme Tank) – Weight = 245 lbs. / Height = 31″ / Length = 54″ / Tank Diameter = 20″ / Width w/ Fittings = 39″ / Inlet Size = 3″ / Number of Outlets = 8 / Size of Outlets = (2) – 3/4″, (4) – 1″, (2) – 2″ / Working Pressure = 200 PSI / Test Pressure = 260 PSI / Shipping Dimensions = 60x40x38

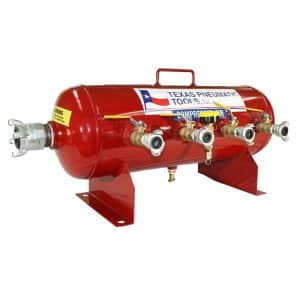

TX-6AMF – Air Manifold (10 Gal. ASME Tank) California Permit Exempt

• 10 Gallon Air Manifold (ASME Tank)
• 2″ – 4 Prong (Bull Hose) Screened Inlet Coupling
• 8 outlets w/ 3/4″ Ball Valves & Crow Foot Couplings
• 150 psi Working Pressure and 150 psi Pressure Relief Valve
• Drain Valve on Bottom of Tank
• Pressure Gage w/ Plastic Cover
• Units can be linked together by replacing the square plug with a hose coupling

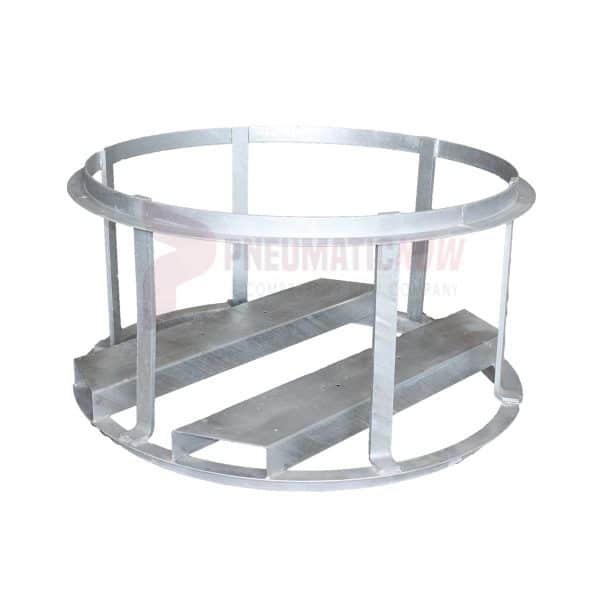

TX-10099 – Manifold Cage

TX-10099 Manifold Cage Is For The TX-2AMF And TX-6AMF. Either Of These Manifolds Can Be Bolted To The Forklift Channels Of The Cage. The Cage Protects The Valves From Being Broken Off, And The Round Design Allows One Person To Easily Roll The Unit Into Place On The Jobsite. These Cages Can Be Stacked For Storage And Is Galvanized For Long Life. When Stacking, The Bottom Of One Cage Fits Over The Top Of The Next And Keeps Them From Sliding Apart. When Stacked, The Forklift Channels Allow Easy Movement Of Multiple Units And Provide A Safe And Easy Lifting Point.

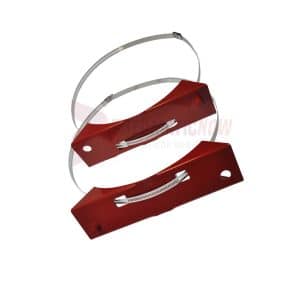

TX-10103 – Stacking Bracket Kit

This kit allows the older style manifold tanks without the permanently welded brackets to be retrofitted.  The Stacking Bracket Kit comes with two Brackets (TX-10101) and two Worm Drive Clamps (TX-10102).  The Worm Drive Clamp is inserted through the two holes in the Bracket.  The Bracket and Clamp are then placed over the end of the Manifold Tank.  Once the Worm Drive Clamp is tightened, the Bracket will stay in place.
