Texas Pneumatic Tools Air Misters

Description

Texas Pneumatic Tools Air Misters

Atomized Mist: Compressed air and water are combined to create an “Atomized Mist”.

Evaporated Cooling: In dry and hot climates, the mist provides an evaporative cooling effect.

Misting and Air Movement: The mist is significantly amplified by the movement of air through the Air Mover.

Texas Pneumatic Air Misters are great for outdoor events. They are effective for cooling hotspots in outdoor construction areas, turnarounds, shutdowns and outages. Our Air Misters can help reduce heat exhaustion and heat stress. Due to the velocity of air moving through the air mover, the evaporative cooling effect can be felt at extended distances.

Our Air Misters have been used to cool machinery, help reduce heat and increase humidity during concrete curing processes, and reduce dusty environments by keeping moisture in the air.

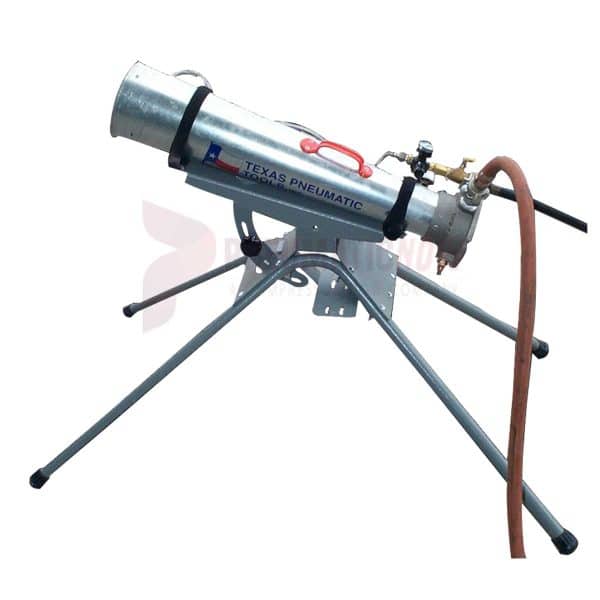

Texas Pneumatic is the only manufacturer to offer these unique portable cooling devices. Units can be purchased with or without a portable stand, or they can be mounted to a permanent fixture.

3 Inch Air Mister

3″ (Short) Venturi Air Mister | 3″ Venturi Air Mister

Specifications:

• Weight = 7 lbs. Short / 9 lbs. Standard
• Length = 17″ Short / 31″ Standard
• Total Air Flow (80 PSI) – 1182 CFM Short / 1462 CFM Standard
• Air Consumed (80 PSI) – 62 CFM

6 Inch Air Mister

6″ Venturi Air Mister

Specifications:

• Weight = 24 lbs.
• Length = 45″
• Total Air Flow (80 PSI) – 3347 CFM
• Air Consumed (80 PSI) – 124 CFM

8 Inch Air Mister

8″ Venturi Air Mister

Specifications:

• Weight = 37 lbs.
• Length = 47″
• Total Air Flow (80 PSI) – 4929 CFM
• Air Consumed (80 PSI) – 193 CFM

10 Inch Air Mister

10″ Venturi Air Mister

Specifications:

• Weight = 44 lbs.
• Length = 50″
• Total Air Flow (80 PSI) – 7304 CFM
• Air Consumed (80 PSI) – 274 CFM
