Sand Rammer
TX-7OB - Sand Rammer
2-1/2" Stroke Bench Rammer
Sand Rammer

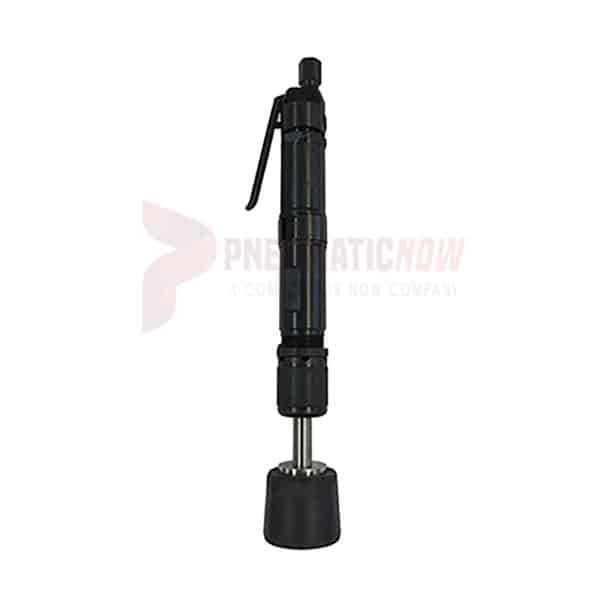

TX-7OB - Sand Rammer
2-1/2" Stroke Bench Rammer

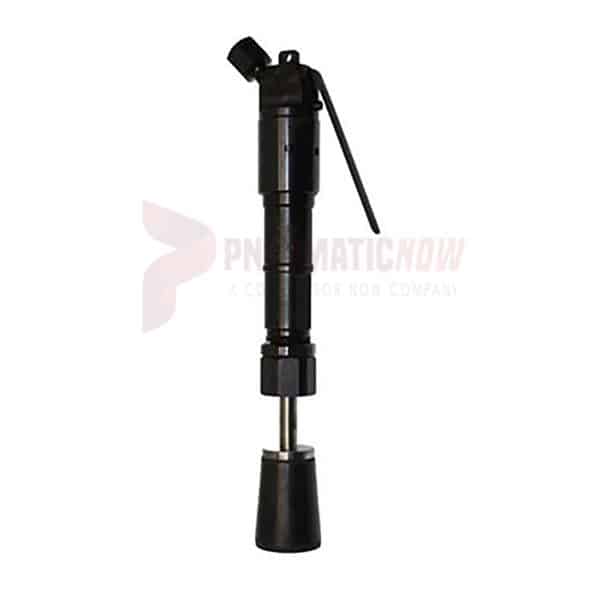

Texas Pneumatic Tools Sand Rammer

Price range: $590.00 through $1,265.00

SKU: N/A Category: Brand:

Description

Sand Rammer – Revolving or Non-Revolving Piston Option Available

A  is a compact, high-impact tool designed for efficiently packing and compacting sand in foundries, molds, and casting applications. It ensures uniform density and strength in the mold, improving casting quality and reducing defects.

Features:

  • Durable Construction: Built from robust, wear-resistant materials for long-lasting performance in demanding environments.

  • Ergonomic Design: Lightweight and balanced for easy handling, reducing operator fatigue during extended use.

  • High Impact Power: Delivers consistent ramming force for optimal sand compaction and mold integrity.

  • Precision Control: Offers smooth operation and control, allowing accurate compaction in small or intricate molds.

  • Air / Pneumatic Operation: Commonly powered by compressed air for reliable and efficient performance.

Features

  • Made in USA
  • High Performance with minimum operator fatigue
  • Easy start/stop features
  • Lightweight rugged construction
  • Adjustable packing gland
  • Shipped with a butt
  • Non-Revolving Pistons available

Applications

  • Packing Sand in Foundries
  • Packing alumnae in fire walls
  • Packing Cast Stone

Available Butts

  • TX-00199 – 2-3/8” Alum/Rubber
  • TX-00200 – 3” Alum/Rubber
  • TX-00206 – 1-3/4” Rubber
  • TX-00208 – 2-3/4” Convex
  • TX-00209 – 2-3/8” Alum
  • TX-002012 – 1-5/8” Rubber



MODEL # WEIGHT LENGTH CFM BORE STROKE BPM TAPER INLET HOSE WHIP
TX-00 3.85 lbs. 12” 12 CFM .7” 2” 1600 401 1/4” NPT TX-1HW
1.75 kg 305 mm 340 L/min 18 mm 51 mm
TX-70B* 6.4 lbs. 16.25” 15 CFM 1” 2” 2500 802 3/8” NPT TX-2HW
2.9 kg 413 mm 425 L/min 25 mm 51 mm
TX-8/2-1/2” 7 lbs. 16.25” 15 CFM 1” 2.5” 1725 802 1/2” NPT TX-3HW
3.2 kg 413 mm 425 L/min 25 mm 64 mm
TX-8-4” 10 lbs. 21” 15 CFM 1” 4” 1240 802 1/2” NPT TX-3HW
4.5 kg 533 mm 425 L/min 25 mm 102 mm
  • Non-Revolving pistons available

Additional information

Weight 3.8 lbs
Dimensions 14.4 × 2 × 11.8 in
Brand

Length

12 in, 16.25 in, 21 in
Blows per minute (bpm)

, , ,
