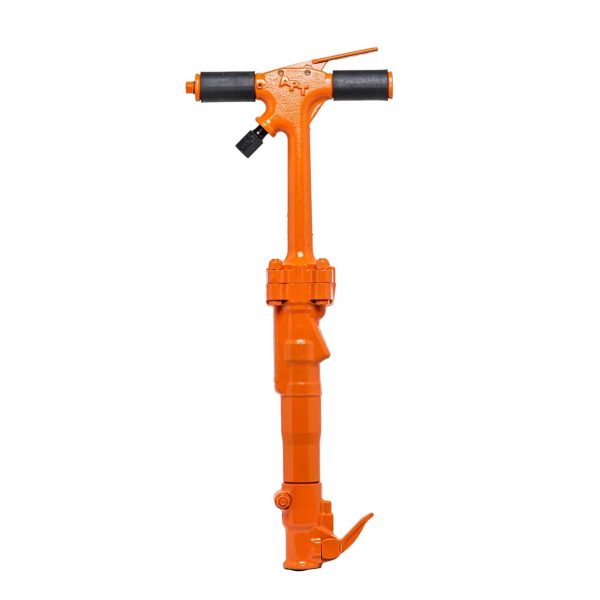

APT M119 Trench Digger, 1x4-1/4
APT M119 Trench Digger, 1x4-1/4

APT M119 Trench Digger, 1×4-1/4

Original price was: $2,124.62.Current price is: $1,424.00.

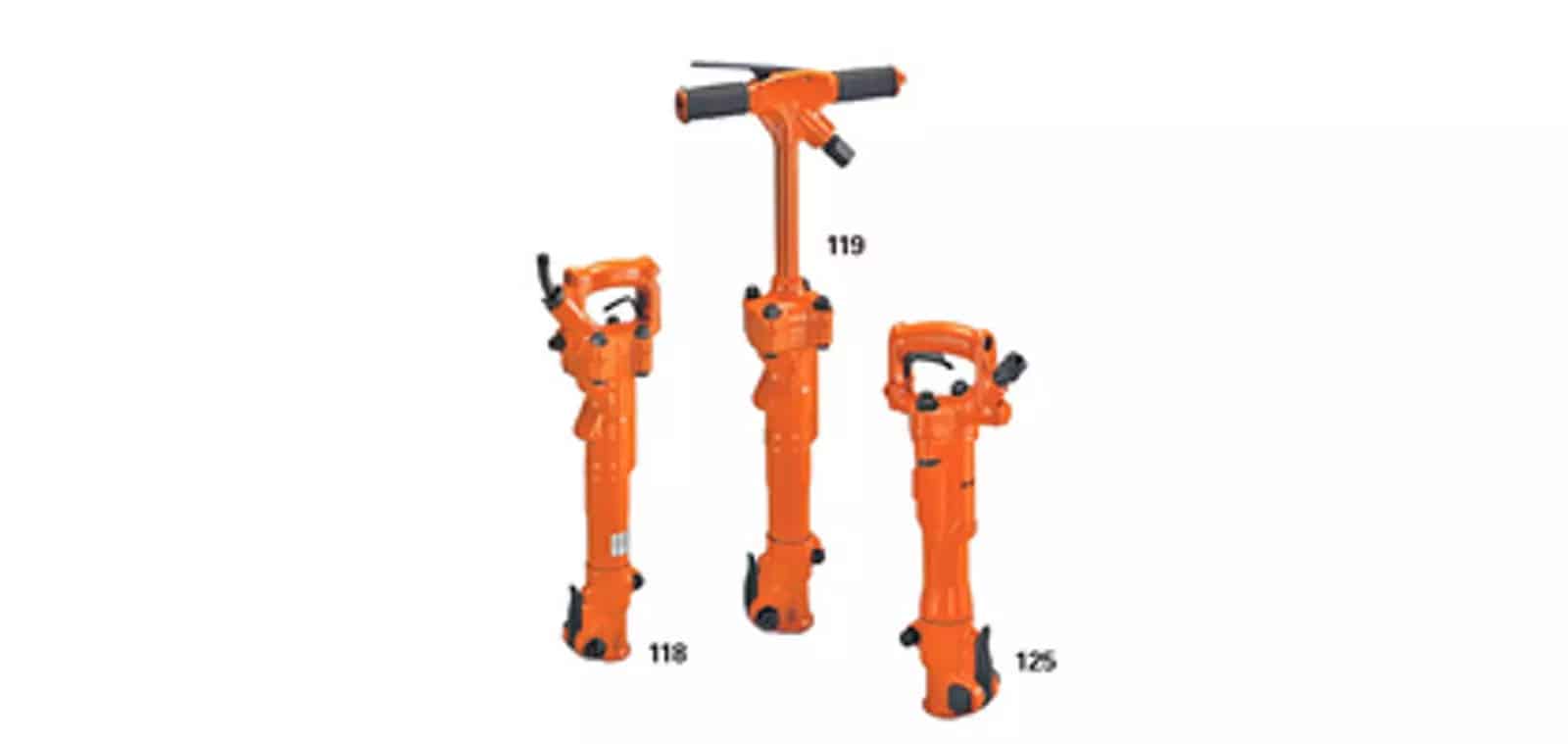

The APT Model M119 Clay digger is used for digging clay, shale, hard pan and frozen ground. The Model 119 is the perfect tool for digging trenches to lay pipes, phone lines and for foundation work. The only difference between the M117, M118, and M119 tools are the handles. These tools have the same cylinders and the majority of the internal parts in common, which makes them very versatile tools for use in various types of work.

SKU: 1280583345 Categories: , , , Brand:

Description

APT M119 Clay Digger

The APT Model M119 Clay digger is used for digging clay, shale, hard pan and frozen ground. The Model 119 is the perfect tool for digging trenches to lay pipes, phone lines and for foundation work. The only difference between the M117, M118, and M119 tools are the handles. These tools have the same cylinders and the majority of the internal parts in common, which makes them very versatile tools for use in various types of work.

Download Manual

Model – Part # Units M119 – 5203 M119 – 5204
Chuck Size in 7/8 x 3 – 1/4 1 x 4 – 1/4
Bore Diameter in 1 – 3/4
Stroke in 3 – 3/8
Blows per Minute bpm 1,850
CFM @ 90 psi CFM 34 – 38
Weight lbs 37
Length in 31
Air Inlet NPT in 1/2 FEMALE NPT

STANDARD FEATURES

  • Automatic Ball Valve
  • Drop forged, Steel T-style handle
  • Built-in automatic oiler
  • Replaceable chuck bushing
  • Latch type retainer
  • Deep, case hardened forged allot steel cylinder
  • Inside trigger for better control and safety

Air Pressure

The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification charts shown for each tool in this catalog.

Hose Size

APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool.

Connecting Hoses

Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.

Additional information

Weight 37 lbs
Dimensions 31 in
