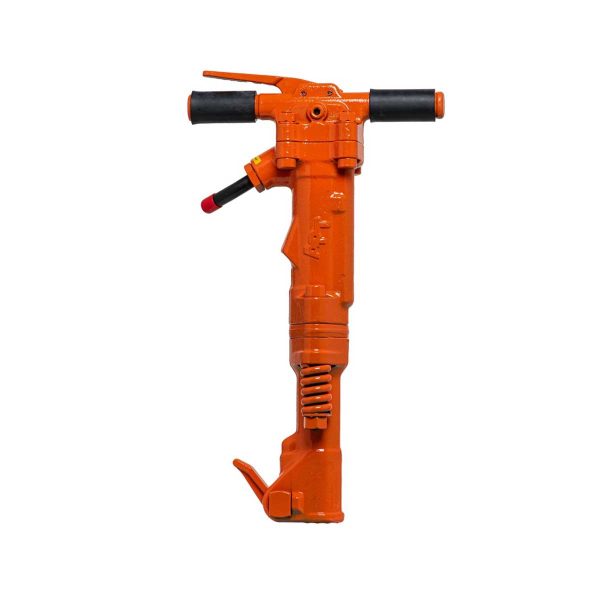

APT M140 Paving Breaker, 1x4-1/4
APT M140 Paving Breaker, 1x4-1/4

APT M140 Paving Breaker, 1×4-1/4

Original price was: $1,834.70.Current price is: $1,230.00.

The APT M140 is a rugged, yet lighweight Pving Breaker designed for ligh tto medium construction work. It is ideally suited for plant maintenance, such as light demolition of floors, pavements, and frozen grounds. This tool is also very popular for bridge deck jobs.

SKU: 1280582247 Categories: , , Brand:

Description

APT M140 Breaker

The APT M140 is a rugged, yet lightweight Paving Breaker designed for light to medium construction work. It is ideally suited for plant maintenance, such as light demolition of floors, pavements, and frozen grounds. This tool is also very popular for bridge deck jobs.

Download Manual

Airgo-Line Head Assembly

Model – Part #: Units M140 – 17923
Chuck Size in. 1″ Hex x 4-1/4
Bore Diameter in 1-7/8
Stroke in 4-1/7
Blows per Minute bpm 1,500
CFM @ 90 psi CFM 48
Weight lbs 43
Length in 21 – 1/8
Air Inlet NPT in 1/2″ Male NPT

STANDARD FEATURES

  • Automatic Valve
  • Drop forged, steel handle
  • Built in automatic oiler
  • Rubber handle grips
  • Latch type retainer
  • Swivel hose connection
  • Four bolt back head
  • Noise dampening muffler available
  • Fitted with universal hose connector

Air Pressure

The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification charts shown for each tool in this catalog.

Hose Size

APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool.

Connecting Hoses

Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.

Additional information

Weight 43 lbs
Dimensions 21.125 in
Brand

Model - Series
