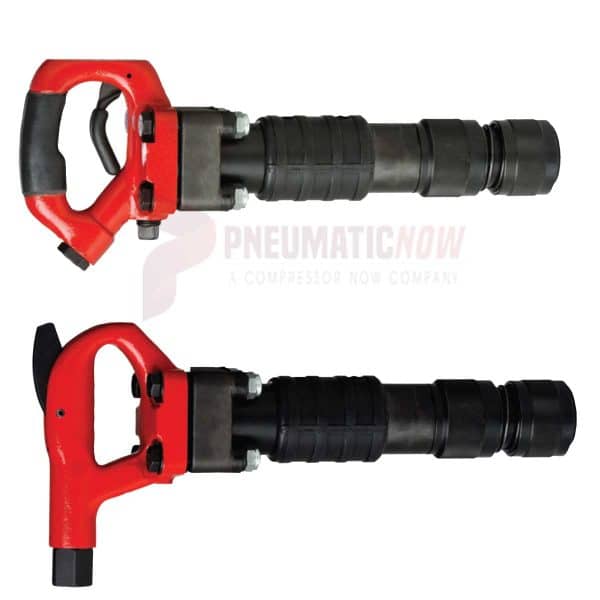

Chicago Pneumatic 4-Bolt Chipping Hammers

Description

Chicago Pneumatic 4-Bolt Chipping Hammers : Heavy Industrial , Maximum Durability for Brutal Environments

When light-duty chippers vibrate themselves apart on heavy-duty industrial jobsites, the Chicago Pneumatic 4-Bolt Heavy Industrial Series takes over. Anchored in the high-performance 18 to 20 lb. weight class, this elite family of chipping hammers—comprising the CP 4130, CP 4132, CP 4133, CP 4134, and CP 4136—is purpose-built for continuous-duty applications in foundries, steel mills, shipyards, bridge restorations, and mass concrete demolition.

The defining characteristic of this group is its specialized 4-bolt flange handle mechanism. Standard air chippers rely on a threaded cylinder that can unscrew or strip under continuous, heavy vibration. Chicago Pneumatic solves this vulnerability by using four high-strength 1/2” alloy steel bolts to physically clamp the heavy “D” handle to the heat-treated cylinder housing. This structural upgrade eliminates handle separation and guarantees an extended operating lifespan.

Heavy Industrial Engineering: Core Features

Every hammer in the 4-bolt group is outfitted with premium mechanical features tailored for continuous, multi-shift production environments:

• High-Airflow Premium Valving: Engineered with advanced internal valving paths that maximize cubic feet per minute (CFM) delivery, generating a heavier, more impactful blow per stroke compared to compact utility tools.
• Teasing Throttle System: Provides precision control over the percussion frequency, enabling operators to slowly step into a cut or chase a fracture line without the chipping steel walking across smooth metal or slick masonry.
• Forged Alloy Steel Cylinder: Precision-bored and heat-treated to resist internal scoring, layout cracks, and abrasive wear from grit, dust, and recycled blast materials.
• Dual Chuck Availability (R or H Suffix):
  • .680″ Round Chuck (R): Allows round-shank chipping steels to rotate freely inside the sleeve, making it perfect for smoothly tracing curved weld seams and circular pipes.
  • .580″ Hex Chuck (H): Positively locks hex-shank accessories into a fixed position, completely preventing tool rotation for predictable, straight-line grooving, channeling, and routing.

Model Configuration Breakdown

To accommodate varying workforce comfort profiles, safety protocols, and quick-change tooling preferences, the 4-bolt family is split into distinct configurations:

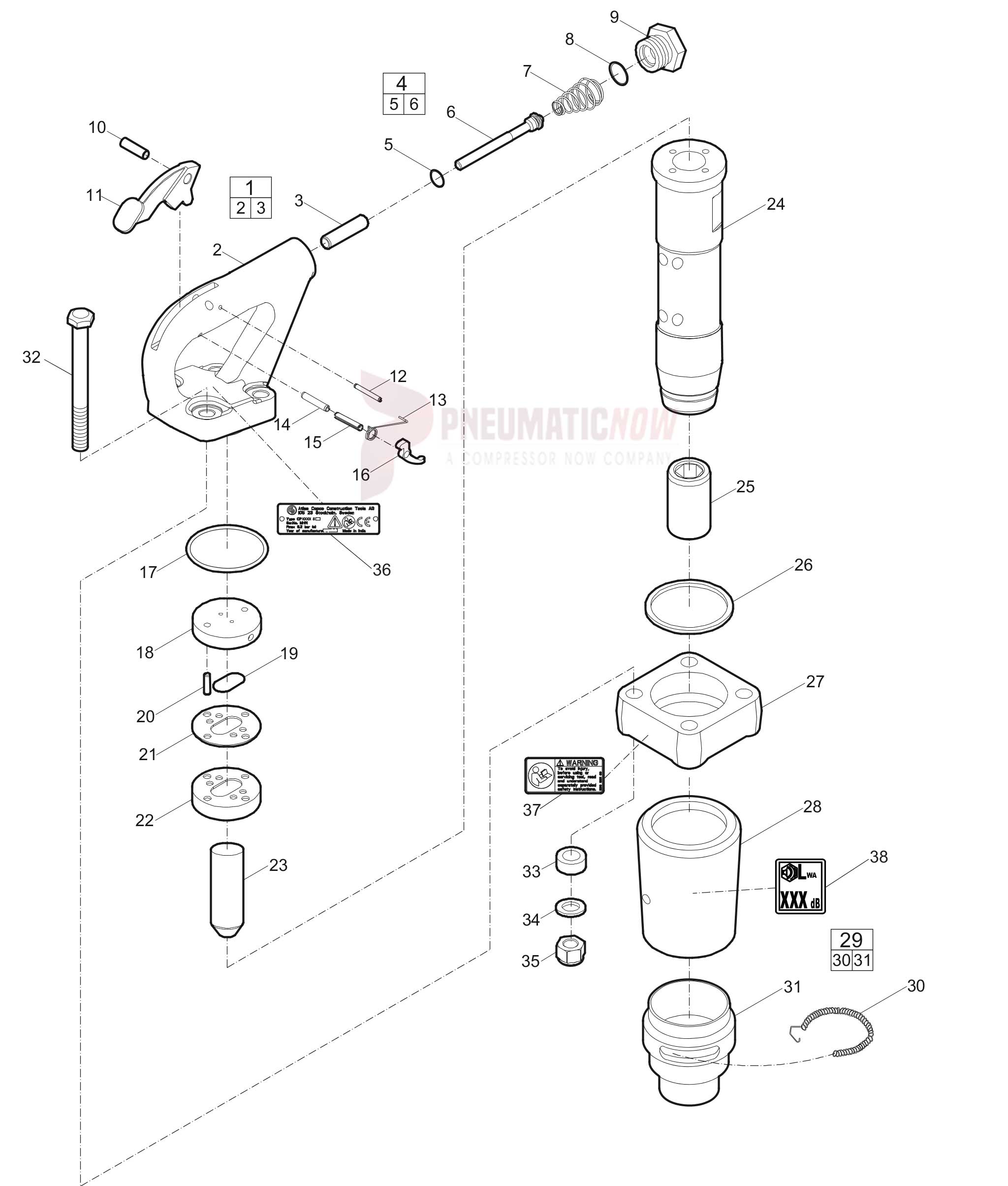

1. CP 4130 & CP 4132: The Inside Trigger Standards

These foundational models feature a classic protective “D” handle layout with an inside trigger configuration to shield the operator’s hand from flying masonry debris and accidental tool firings. Both utilize a standard, heavy-duty oval collar retainer spring.

• CP 4130: The classic, un-muffled foundational powerhouse optimized for open-air construction sites.
• CP 4132: The modernized, high-performance upgrade equipped with a standard-issue, high-strength polyurethane muffler wrapper that significantly lowers operational sound levels without sacrificing kinetic force.

2. CP 4133: Outside Trigger with Heavy Airflow

The CP 4133 variant shifts the trigger position to the outside of the handle grip, which is highly preferred by operators wearing heavy foundry or welding gloves who want immediate tool response and downward leverage. It features an integrated sound muffler wrapper and utilizes a classic heavy-duty 7/8-24 threaded air inlet connection.

3. CP 4134 & CP 4136: Screw-On Quick-Change Ball Retainers

For industrial shifts where operators constantly swap between moil points, flat chisels, gouges, and scaling tools, traditional wire retainer springs add frustrating down-time. These premium models replace the wire coil spring with a robust, thread-on ball-type quick-release retainer system. Accessories lock into place securely with a fast mechanical twist.

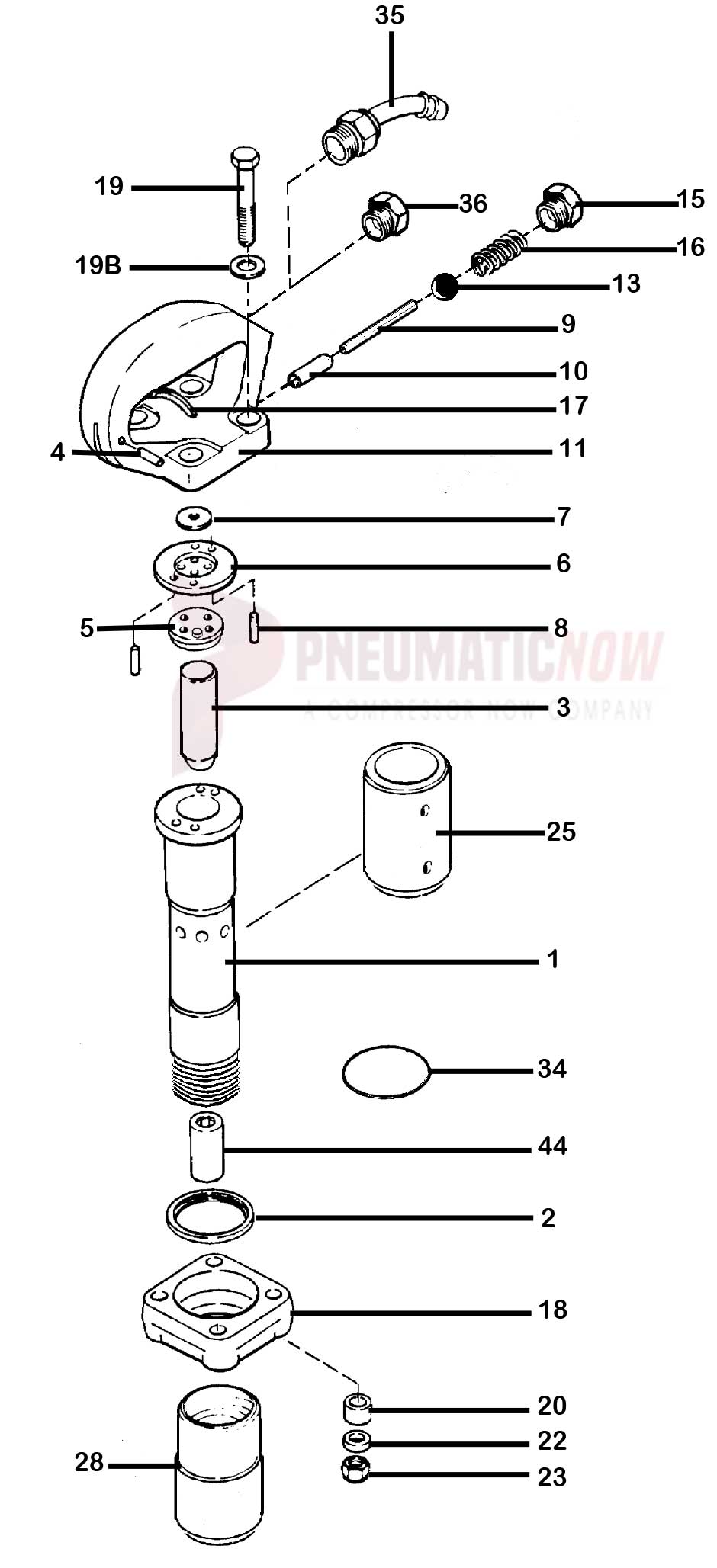

• CP 4134: Features an ergonomic inside trigger setup paired with the premium screw-on ball retainer.

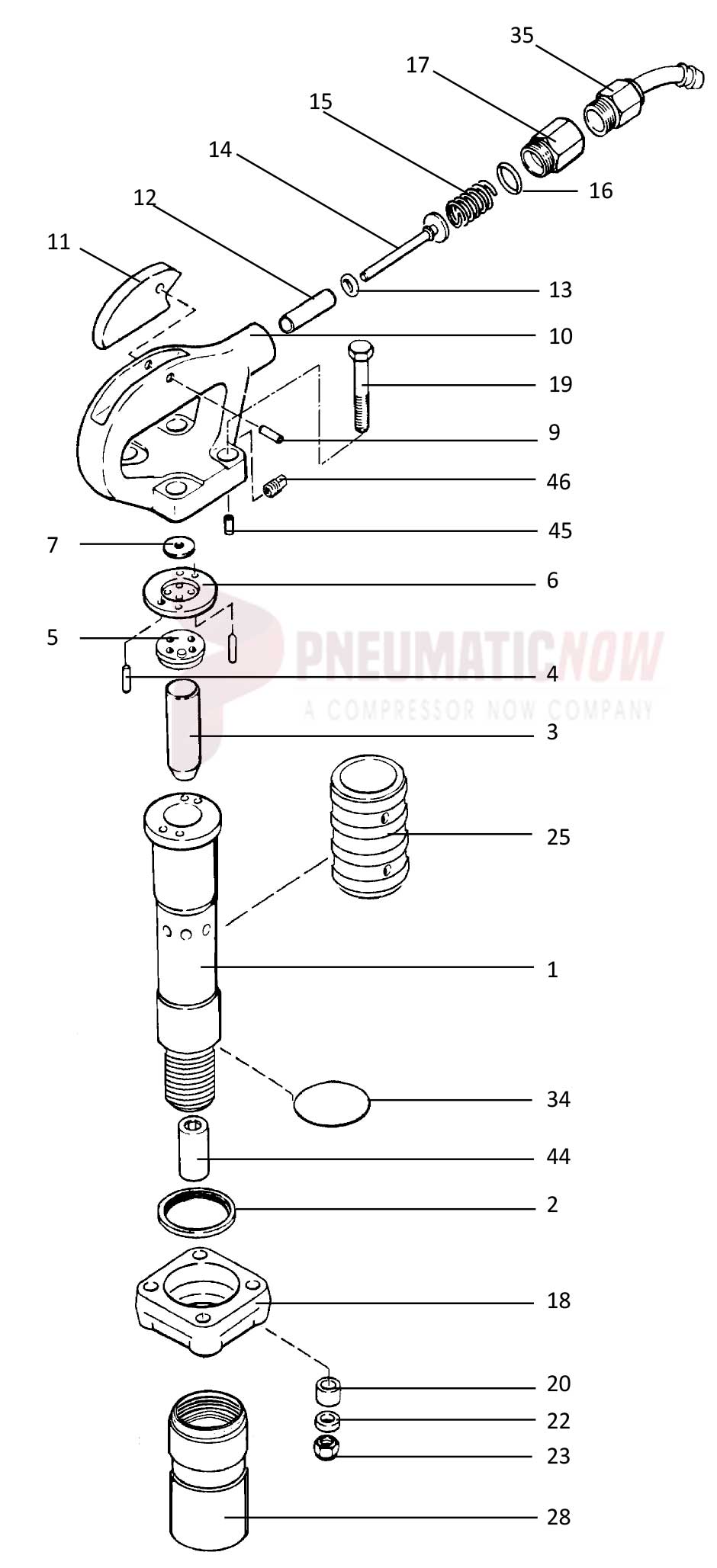

• CP 4136: Combines an outside trigger configuration with a 7/8-24 threaded heavy air inlet and the premium screw-on ball retainer.

Technical Specifications Matrix

Primary Applications

Fleet Versatility: By pairing any 4-bolt model with standard oval collar demolition steel, your maintenance crew achieves maximum cutting depth, making these tools much more versatile than standard pneumatic hand-scrubbers.

• Heavy Metal Fabrication & Shipyards: Gouging thick backing welds, dressing heavy structural plate seams, and removing aggressive slag coatings.
• Foundries & Smelters: Clearing massive core sands, cutting loose stubborn gates or risers, and managing interior ladle refractories.
• Civil Demolition & Infrastructure: Chipping concrete bridge decks for deep bonding overlays, cutting architectural utility channels, and breaching high-PSI structural masonry.
• Refinery Plant Maintenance: Peeling off hard slag crusts from industrial process tanks and restoring worn kiln linings.

The Chicago Pneumatic 4-Bolt Heavy Industrial Series removes handle loosening from your equation entirely. By selecting the ideal combination of stroke length, trigger placement, and retainer mechanism, you furnish your workforce with an asset engineered to out-produce and out-survive the competition.
