Chicago Pneumatic 90 Lb. Breaker Series

Description

Chicago Pneumatic 90 Lb. Breaker Series: CP 1290 Brute Force for Heavy Demolition

When your project demands the absolute maximum breaking power available in a handheld tool, the Chicago Pneumatic CP 1290 Series is the industry standard for uncompromising muscle. Firmly rooted in the ultimate 90 lb. weight class, this legendary heavy demolition tool is engineered for the most punishing high-volume industrial, municipal, and commercial applications.

Utilizing a state-of-the-art tuned valve system, the CP 1290 series extracts every ounce of productivity from your compressed air setup, generating up to 20% more hitting energy than vintage legacy hammers. Whether you are blasting through thick highway concrete, breaking up deep industrial foundations, or tackling frozen earth, this lineup delivers structural-crushing impact with unmatched reliability.

Heavy-Duty Engineering: Core Features

The CP 1290 platform represents the pinnacle of pneumatic durability, utilizing a selection of high-grade components built to outlast extreme job site environments:

• Tuned Valve Performance: Optimizes internal timing and percussive geometry, translating raw air pressure into devastating impact energy to boost daily tonnage records.
• Premium Alloy Steel Forgings: The main housing and critical components are forged from top-tier alloy steels to guarantee superior fatigue resistance and long service life.
• Rugged 4-Bolt Backhead: Specifically beefed up to manage the intense rebound stress unique to 90 lb. class hammers, resulting in less downtime and lower maintenance overhead.
• Reversible Piston: Minimizes fleet operating costs over time. When one side of the striking piston shows normal wear, it can be inverted to double the overall life of the component.
• Integral Oiler System: Built directly into the tool with an easy-to-fill reservoir, ensuring that high-friction internal tracks and lubrication grooves receive continuous oil flow during all-day shifts.
• Polyurethane Front-Head Springs: Heavy-duty dampening springs and durable side bolts work in tandem to absorb violent recoil energy before it can fracture the tool casing or wear out the operator.
• Pressure-Active Air Inlet Swivel: Rotates smoothly even under full load, giving the operator maximum tool maneuverability around obstructions without fighting a binding 3/4″ air line.

Model Breakdown: Tailor the Hammer to Your Project

The CP 1290 series is offered in three variations to accommodate varying job site dynamics, local environmental regulations, and safety targets:

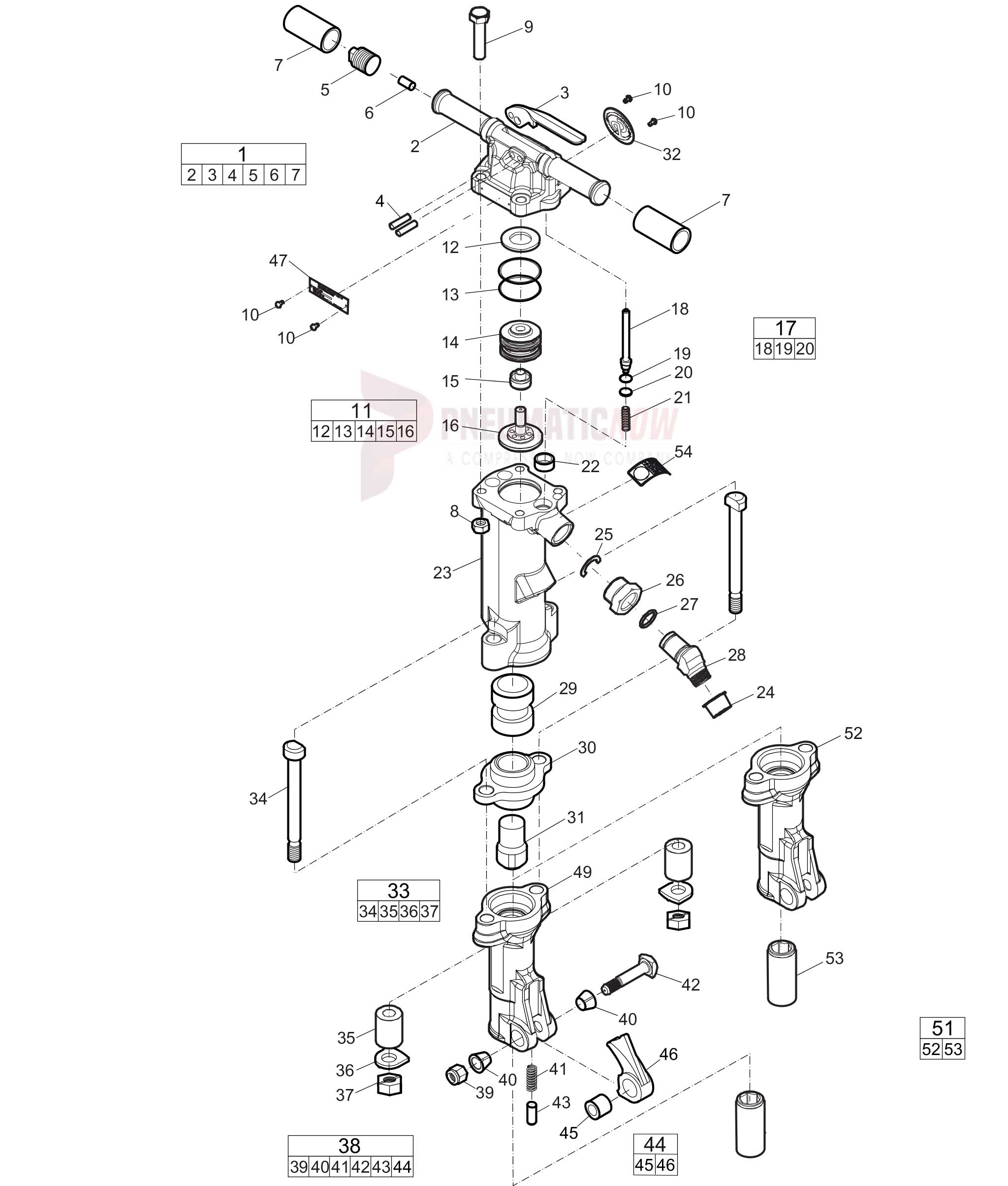

1. CP 1290: The Pure Heavy Workhorse

The standard, un-muffled foundational powerhouse. It is explicitly tailored for open-air highway projects, heavy civil infrastructure work, and mass rural demolition contracts where acoustic restriction isn’t a primary concern.

• Best For: Massive runway breakouts, structural bridge deck drops, and highway surface demolition.

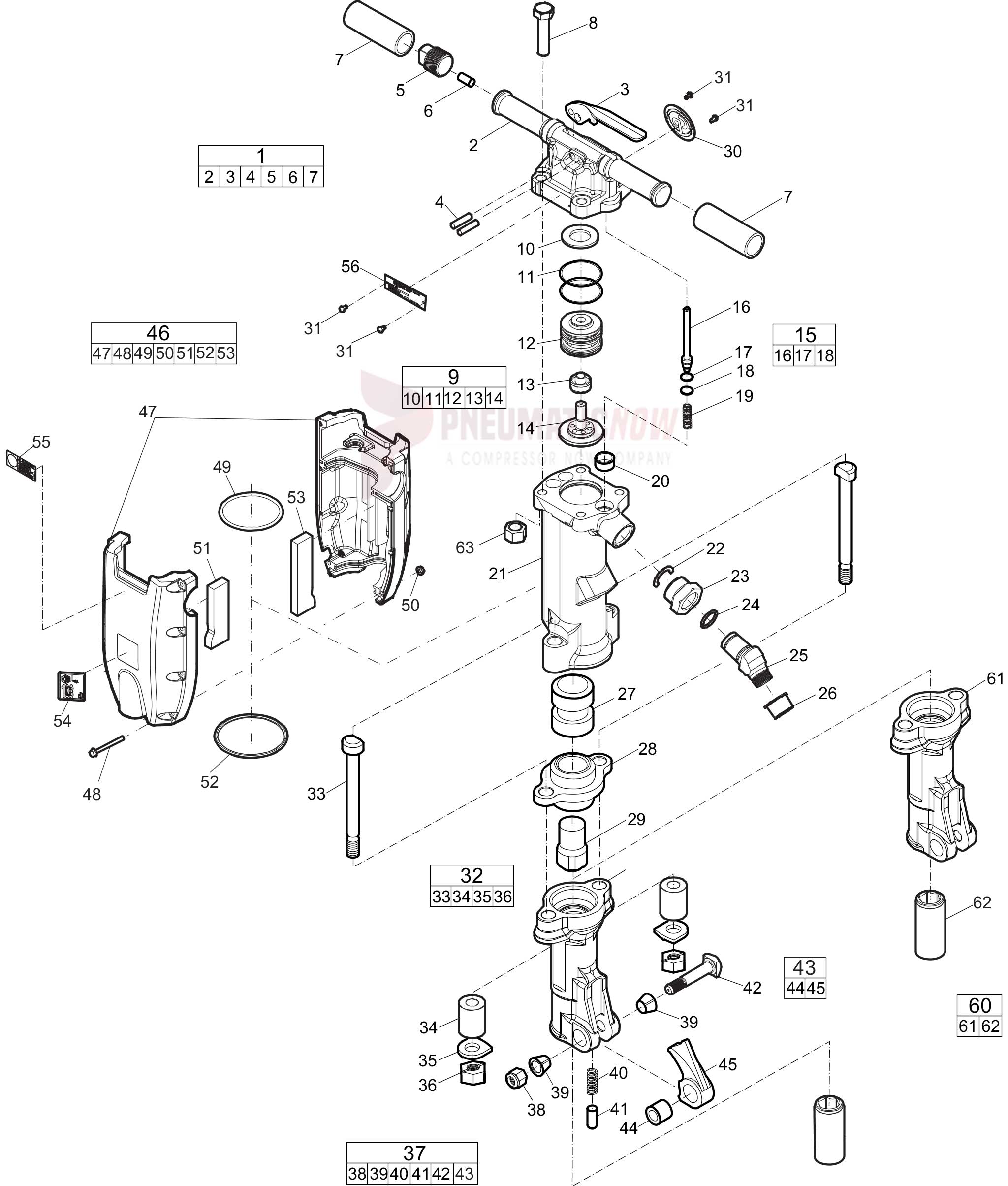

2. CP 1290 S: “Hushed Power” for Municipal Standards

The CP 1290 S is wrapped in a highly durable, impact-resistant polyurethane muffler jacket. It forcefully suppresses exhausting air blast noise, letting contractors satisfy strict municipal sound mandates without forfeiting an ounce of breaking power.

• Best For: Commercial business districts, downtown utility replacement, and sensitive metropolitan areas.

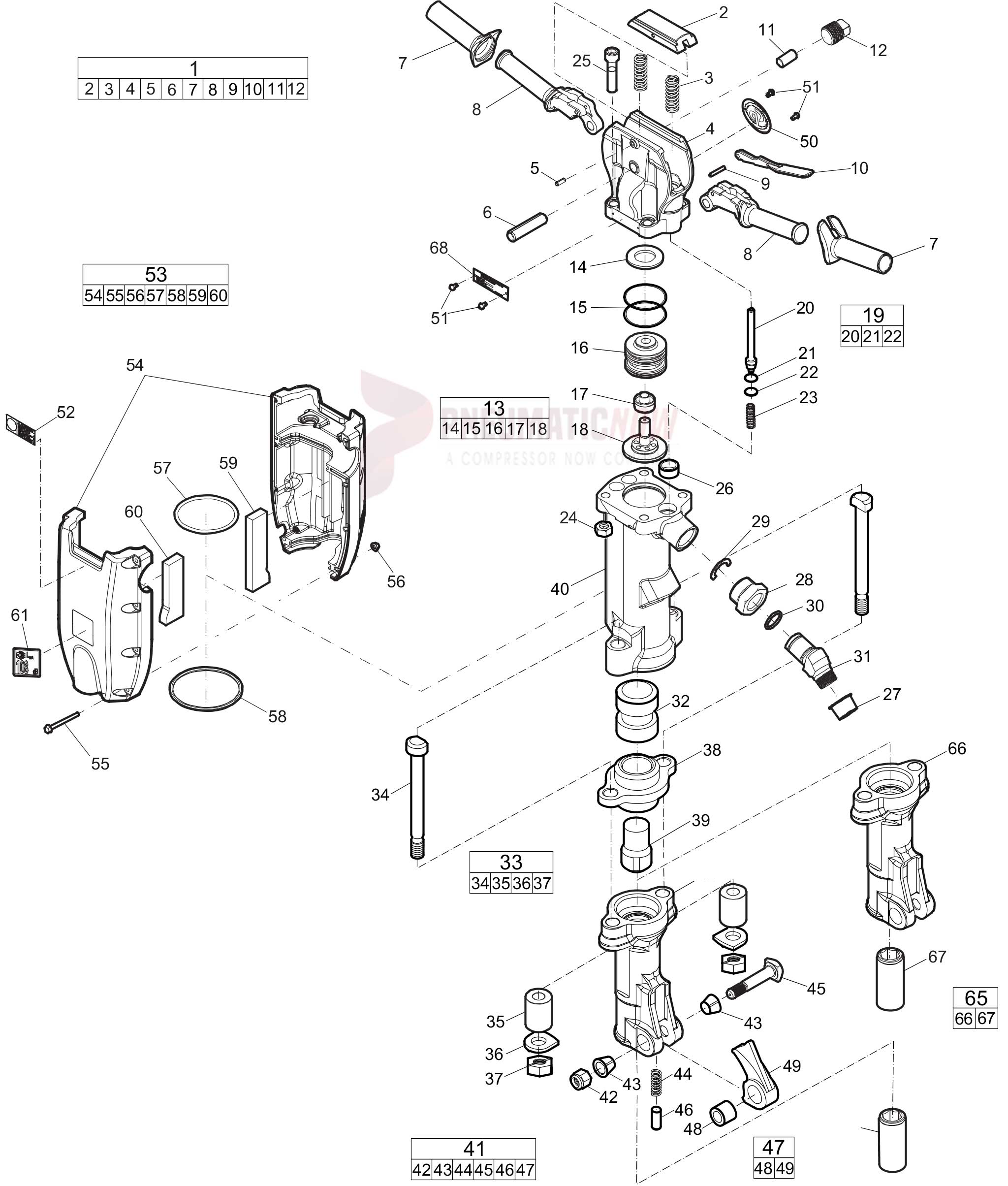

3. CP 1290 SVR: Premium Protection (Silenced & Vibration Reduced)

The CP 1290 SVR is the elite tier for high-volume operators. It matches the sound suppression of the “S” variant and incorporates a sophisticated vibration-dampened handle chassis. This isolating system cushions the worker’s body from structural kickback, keeping harmful vibrations away from wrists, elbows, and shoulders.

• Best For: All-day deep utility trenches, high-scale concrete removals, and teams optimizing safety protocols against Hand-Arm Vibration Syndrome (HAVS).

Technical Specifications

Primary Applications

Versatile Retainer System: The industrial latch-type assembly built into the CP 1290 series secures rapid tool transitions, locking flawlessly onto an endless inventory of standard 6-inch shank demolition steels.

• Obliterating heavy, reinforced concrete pavement, highway slabs, and thick runway decks.
• Breaking down solid industrial equipment foundations, thick piers, and mass masonry walls.
• Carving up deep asphalt trenching profiles and heavy macadam overlays.
• Fracturing large boulders, frozen earth layers, and ultra-dense compacted soils.

The Chicago Pneumatic CP 1290 series is engineered to deliver peak productivity on your most demanding demolition sites. When lighter tools surrender, the 1290 lines up your target and gets the job done safely, reliably, and ahead of schedule.
