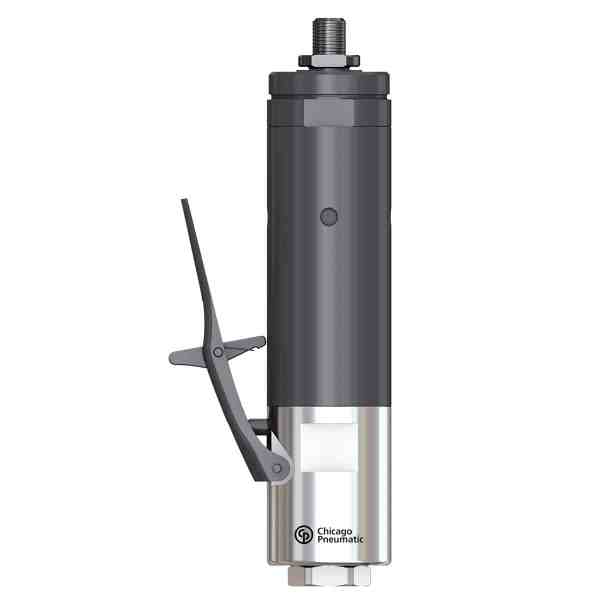

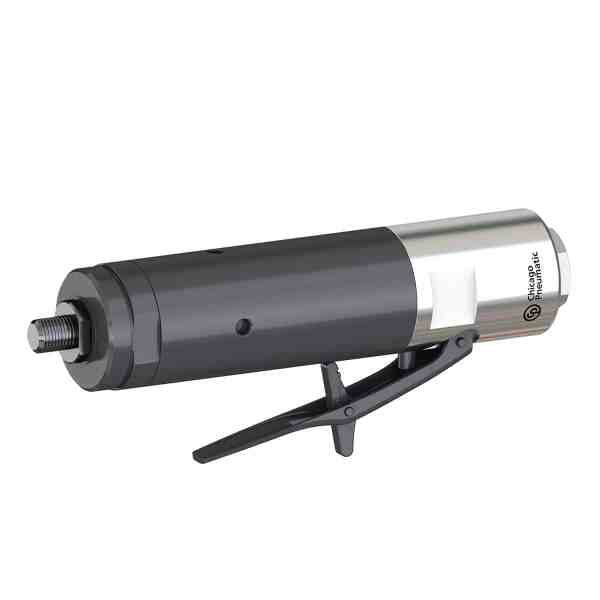

Chicago Pneumatic M2501-2130-TL Part 2051481744
Chicago Pneumatic M2501-2130-TL Part 2051481744

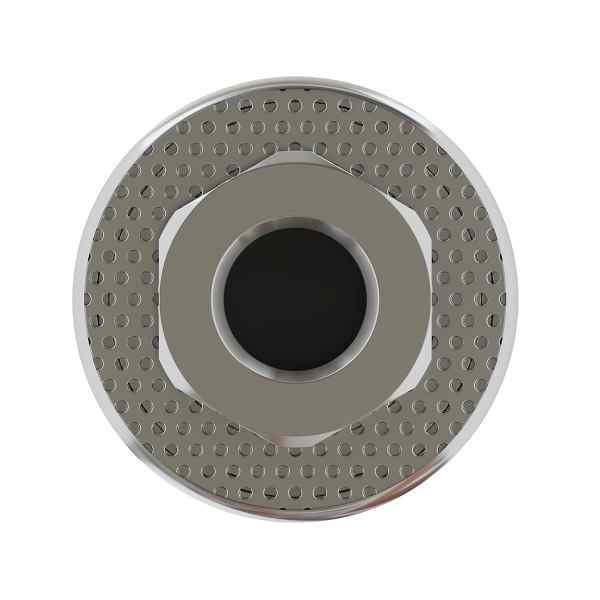

Chicago Pneumatic M2501-2130-TL Part 2051481744 - Image 2
Chicago Pneumatic M2501-2130-TL Part 2051481744 - Image 3

Chicago Pneumatic M2501-2130-TL Part 2051481744

$1,724.05

M2501-2130-Tl – Standard Vane Motor, Lubrication Free

SKU: 2051481744 Categories: , Brand:

Description

Benefits

  • Air motors’ heavy-duty characteristics enhance a sustainable use
  • The Air Motors range proposes versatile solutions in any kind of industrial environment
  • Chicago Pneumatic Air motors range offers long lasting efficiency

    • Features

  • Low friction design of vane and blade,
  • Lubrication free design
  • A Design to sustain stall torque loading indefinitely
  • A Light and compact planetary gears system
  • A long and slim design
  • A range of accessories proposed to facilitate customized assembly.
  • A specific low air consumption design
  • a strong starting torque for mobility during operation

    •
    Model M2501-2130-TL
    Part number 2051481744
    Back head coaxial yes
    Net weight 0.64 kg 1.42 lb
    Net weight 1.42 lb 0.64 kg
    Air inlet thread size 1/8 “
    Free speed 2130 rpm
    IP Rating IP66
    European Directives 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7)
    European Standards DIN EN 4414:2010, DIN EN ISO 12100:2010
    Air inlet thread type BSP
    Air flow at max. capacity 5.9 l/s 12.5 cfm
    ATEX no
    Front nut threaded yes
    Lubrication free yes
    Max. Output Power 0.31 hp
    Max. Output Power 0.23 kW 0.31 hp
    Output spindle 3/8″-24 UNF 3/8″-24 UNF
    Output spindle 3/8″-24 UNF  3/8″-24 UNF
    Stainless steel no
    Stall torque 3.1 ft.lbs 4.2 Nm
    Stall torque 4.2 Nm 3.1 ft.lbs
    Torque at max. power 1 1/2 ft.lbs 2.1 Nm
    Torque at max. power 2.1 Nm 1 1/2 ft.lbs
    Mini starting torque 2.9 ft.lbs 4.0 Nm
    Mini starting torque 4.0 Nm 2.9 ft.lbs
    Air flow at max. capacity 12.5 cfm
    Spindle type Threaded shaft
    Shaft loading code b
    Reversible no
