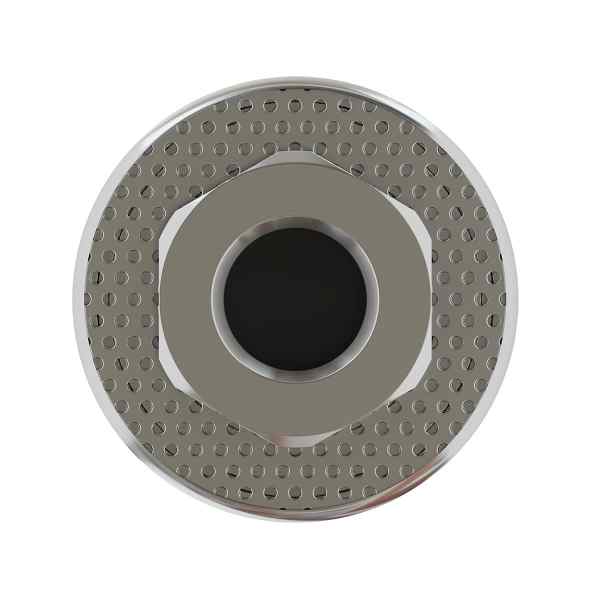

Chicago Pneumatic M3901-340-TL ATEX Part 2051481704
Chicago Pneumatic M3901-340-TL ATEX Part 2051481704
Chicago Pneumatic M3901-340-TL ATEX Part 2051481704 - Image 2
Chicago Pneumatic M3901-340-TL ATEX Part 2051481704 - Image 3

Chicago Pneumatic M3901-340-TL ATEX Part 2051481704

$2,779.53

M3901-340-Tl-Atex – Standard Vane Motor, Atex Certified And Lubrication Free

SKU: 2051481704 Categories: , Brand:

Description

Benefits

  • Air motors’ heavy-duty characteristics enhance a sustainable use
  • The Air Motors range proposes versatile solutions in any kind of industrial environment
  • Chicago Pneumatic Air motors range offers long lasting efficiency

    • Features

  • Low friction design of vane and blade,
  • Lubrication free design
  • A Design to sustain stall torque loading indefinitely
  • A Light and compact planetary gears system
  • A long and slim design
  • A range of accessories proposed to facilitate customized assembly.
  • ATEX certification for zone 2
  • A specific low air consumption design
  • a strong starting torque for mobility during operation

    •
    Model M3901-340-TL-ATEX
    Part number 2051481704
    Back head coaxial yes
    Net weight 1.5 kg 3.31 lb
    Net weight 3.31 lb 1 1/2 kg
    Air inlet thread size 1/4 “
    Free speed 340 rpm
    IP Rating IP66
    European Directives 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2014/34/EU
    European Standards DIN EN 4414:2010, DIN EN 1127-1:2011, DIN EN 80079-36:2016, DIN EN 80079-37:2016, DIN EN ISO 12100:2010
    ATEX certificate number 9836 4610 00
    Air inlet thread type BSP
    Air flow at max. capacity 8.1 l/s 17.1 cfm
    ATEX yes
    Front nut threaded yes
    Lubrication free yes
    Max. Output Power 1/2 hp
    Max. Output Power 0.37 kW 1/2 hp
    Output spindle 5/8″-16 UNF 5/8″-16 UNF
    Output spindle 5/8″-16 UNF  5/8″-16 UNF
    Stainless steel no
    Stall torque 33 ft.lbs 45 Nm
    Stall torque 45 Nm 33 ft.lbs
    Torque at max. power 16.4 ft.lbs 22.3 Nm
    Torque at max. power 22.3 Nm 16.4 ft.lbs
    Mini starting torque 30 ft.lbs 40 Nm
    Mini starting torque 40 Nm 30 ft.lbs
    Air flow at max. capacity 17.1 cfm
    Spindle type Threaded shaft
    Shaft loading code c
    Reversible no
