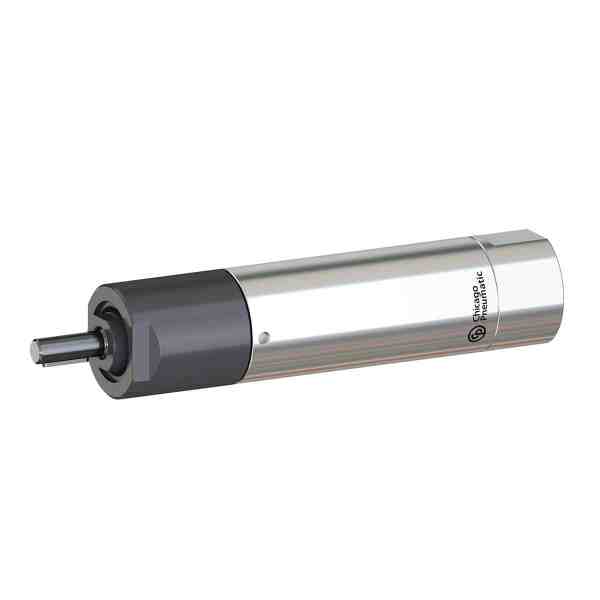

Chicago Pneumatic MR16-2000-KL ATEX Part 2051478994
Chicago Pneumatic MR16-2000-KL ATEX Part 2051478994
Chicago Pneumatic MR16-2000-KL ATEX Part 2051478994 - Image 2

Chicago Pneumatic MR16-2000-KL ATEX Part 2051478994

$1,314.46

Mr16-2000-Kl-Atex – Standard Reversible Vane Motor, Atex Certified And Lubrication Free

SKU: 2051478994 Categories: , Brand:

Description

Benefits

  • Air motors’ heavy-duty characteristics enhance a sustainable use
  • The Air Motors range proposes versatile solutions in any kind of industrial environment
  • Chicago Pneumatic Air motors range offers long lasting efficiency

    • Features

  • Low friction design of vane and blade,
  • Lubrication free design
  • A Design to sustain stall torque loading indefinitely
  • A Light and compact planetary gears system
  • A long and slim design
  • A range of accessories proposed to facilitate customized assembly.
  • ATEX certification for zone 2
  • A specific low air consumption design
  • a strong starting torque for mobility during operation

    •
    Model MR16-2000-KL-ATEX
    Part number 2051478994
    Back head coaxial no
    Net weight 0.37 kg 0.82 lb
    Net weight 0.82 lb 0.37 kg
    Air inlet thread size 1/8 “
    Free speed 2000 rpm
    IP Rating IP66
    European Directives 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2014/34/EU
    European Standards DIN EN 4414:2010, DIN EN 1127-1:2011, DIN EN 80079-36:2016, DIN EN 80079-37:2016, DIN EN ISO 12100:2010
    ATEX certificate number 9836 4610 00
    Air inlet thread type BSP
    Air flow at max. capacity 3.6 l/s 7.6 cfm
    ATEX yes
    Front nut threaded no
    Lubrication free yes
    Max. Output Power 0.15 hp
    Max. Output Power 0.11 kW 0.15 hp
    Output spindle 0.236″ 6 mm
    Output spindle 6 mm 0.236″
    Stainless steel no
    Stall torque 1 1/2 ft.lbs 2.1 Nm
    Stall torque 2.1 Nm 1 1/2 ft.lbs
    Torque at max. power 0.76 ft.lbs 1.03 Nm
    Torque at max. power 1.03 Nm 0.76 ft.lbs
    Mini starting torque 1.23 ft.lbs 1.67 Nm
    Mini starting torque 1.67 Nm 1.23 ft.lbs
    Air flow at max. capacity 7.6 cfm
    Spindle type Keyed shaft
    Shaft loading code a
    Reversible yes
