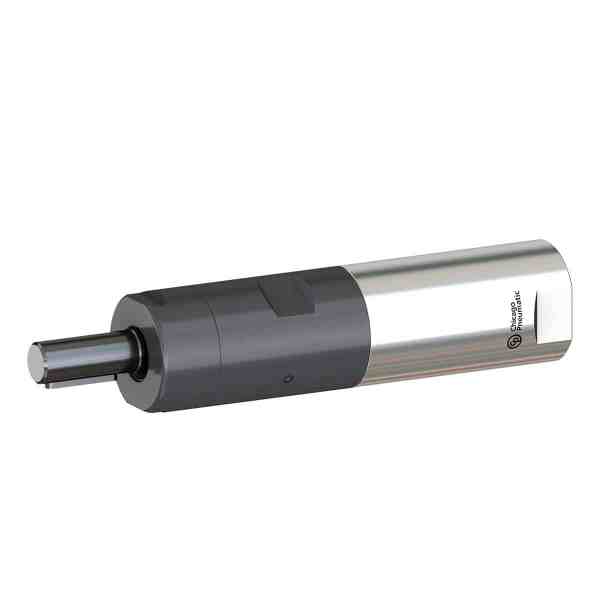

Chicago Pneumatic MR84-55-K ATEX Part 2051479344
Chicago Pneumatic MR84-55-K ATEX Part 2051479344
Chicago Pneumatic MR84-55-K ATEX Part 2051479344 - Image 2
Chicago Pneumatic MR84-55-K ATEX Part 2051479344 - Image 3

Chicago Pneumatic MR84-55-K ATEX Part 2051479344

$4,445.34

Mr84-55-K-Atex – Standard Reversible Vane Motor, Atex Certified

SKU: 2051479344 Categories: , Brand:

Description

Benefits

  • Air motors’ heavy-duty characteristics enhance a sustainable use
  • The Air Motors range proposes versatile solutions in any kind of industrial environment
  • Chicago Pneumatic Air motors range offers long lasting efficiency

    • Features

  • Low friction design of vane and blade,
  • A Design to sustain stall torque loading indefinitely
  • A Light and compact planetary gears system
  • A long and slim design
  • A range of accessories proposed to facilitate customized assembly.
  • ATEX certification for zone 2
  • A specific low air consumption design
  • a strong starting torque for mobility during operation

    •
    Model MR84-55-K-ATEX
    Part number 2051479344
    Back head coaxial no
    Net weight 4.9 kg 10.8 lb
    Net weight 10.8 lb 4.9 kg
    Air inlet thread size 1/4 “
    Free speed 55 rpm
    IP Rating IP66
    European Directives 2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7), 2014/34/EU
    European Standards DIN EN 4414:2010, DIN EN 1127-1:2011, DIN EN 80079-36:2016, DIN EN 80079-37:2016, DIN EN ISO 12100:2010
    ATEX certificate number 9836 4610 00
    Air inlet thread type BSP
    Air flow at max. capacity 14 l/s 30 cfm
    ATEX yes
    Front nut threaded no
    Lubrication free no
    Max. Output Power 0.79 hp
    Max. Output Power 0.59 kW 0.79 hp
    Output spindle 0.748″ 19 mm
    Output spindle 19 mm 0.748″
    Stainless steel no
    Stall torque 270 ft.lbs 366 Nm
    Stall torque 366 Nm 270 ft.lbs
    Torque at max. power 135 ft.lbs 183 Nm
    Torque at max. power 183 Nm 135 ft.lbs
    Mini starting torque 182 ft.lbs 247 Nm
    Mini starting torque 247 Nm 182 ft.lbs
    Air flow at max. capacity 30 cfm
    Spindle type Keyed shaft
    Shaft loading code h
    Reversible yes
