Chicago Pneumatic Red Hawk Road Gas-Driven Breaker

Original price was: $6,761.22.Current price is: $4,732.85.

SKU: N/A Categories: , , Brand:

Description

Chicago Pneumatic Red Hawk Road Gas-Driven Breaker: Absolute Mobility, Maximum Productivity

When your job site demands hard-hitting demolition power but lacks a convenient power source, towing a large air compressor or hydraulic power pack is an unnecessary hassle. The Chicago Pneumatic Red Hawk Road is a self-contained, gas-powered breaker engineered to deliver the performance of a traditional hammer with the absolute freedom of a cordless tool.

By packing a high-efficiency gas engine directly into the tool chassis, the Red Hawk Road provides the exact same power-to-weight ratio as many pneumatic or hydraulic breakers without tying you down to restrictive hoses or external power rigs.

Unmatched Performance: Core Features

The Red Hawk Road stands as an industry leader in self-powered demolition by prioritizing both raw output and operator ergonomics:

  • Double the Impact Energy: Delivers nearly twice the impact energy of other gas-driven breakers currently available on the market.
  • True Hose-Free Freedom: Operates entirely independently of compressors, generators, or hydraulic lines, making it the ultimate tool for remote locations, roadside spot repairs, and rapid-response tasks.
  • Advanced Vibration Optimization: Engineered with a user-friendly design that isolates high-impact forces, minimizing the punishing effects of vibration on the operator to boost daily productivity and safety.
  • Aggressive Hitting Frequency: Fires at a rapid 1,440 blows per minute (BPM) to quickly fracture tough road surfaces, asphalt, and concrete layouts.

Technical Specifications

The Red Hawk Road platform is built around a lightweight yet rugged 2-stroke engine, balancing physical maneuverability with heavy-duty output:

Specification Red Hawk Road (Variant 1) Red Hawk Road (Variant 2)
Engine Type 90 cc. 2-stroke 90 cc. 2-stroke
Physical Weight 48 lbs 50 lbs
Overall Length 29 in 31 in
Impact Energy 44 ft-lbs 44 ft-lbs
Blow Frequency 1,440 BPM 1,440 BPM

Primary Applications & Accessories

Versatile Driving Performance: Beyond standard concrete and asphalt hammering, the Red Hawk Road excels as a high-capacity down-driver for municipal and commercial infrastructure assets.

  • Road Maintenance: Breaking up asphalt patches, cutting concrete curbs, and tackling utility line breakouts.
  • Stake & Post Driving: Rapidly hammering down heavy-duty ground stakes, pins, and anchors.
  • Signpost Installation: Securely driving industrial U-channel posts, square posts, and J-channels using specialized Chicago Pneumatic driver shank adapters.

Available Jobsite Add-Ons:

  • Optional Breaker Trolley: An ergonomic, custom-fit wheel trolley that enables workers to transport the Red Hawk breaker across job sites with minimal physical effort (Part No. 9234 0006 54).
  • Carrying Harness: Distributes weight evenly across the shoulders for comfortable transport over rough terrain (Part No. 9238 2814 10).
  • Heavy-Duty Machine Box: Provides robust, secure protection for the breaker during truck transit and storage (Part No. 9234 0011 25).

Additional information

Weight 57.3 lbs
Dimensions 36 × 13.2 × 25.2 in
Brand

Model - Series

Chuck Size

, ,

Power

Blows per minute (bpm)

CP Red Hawk Road/Rail

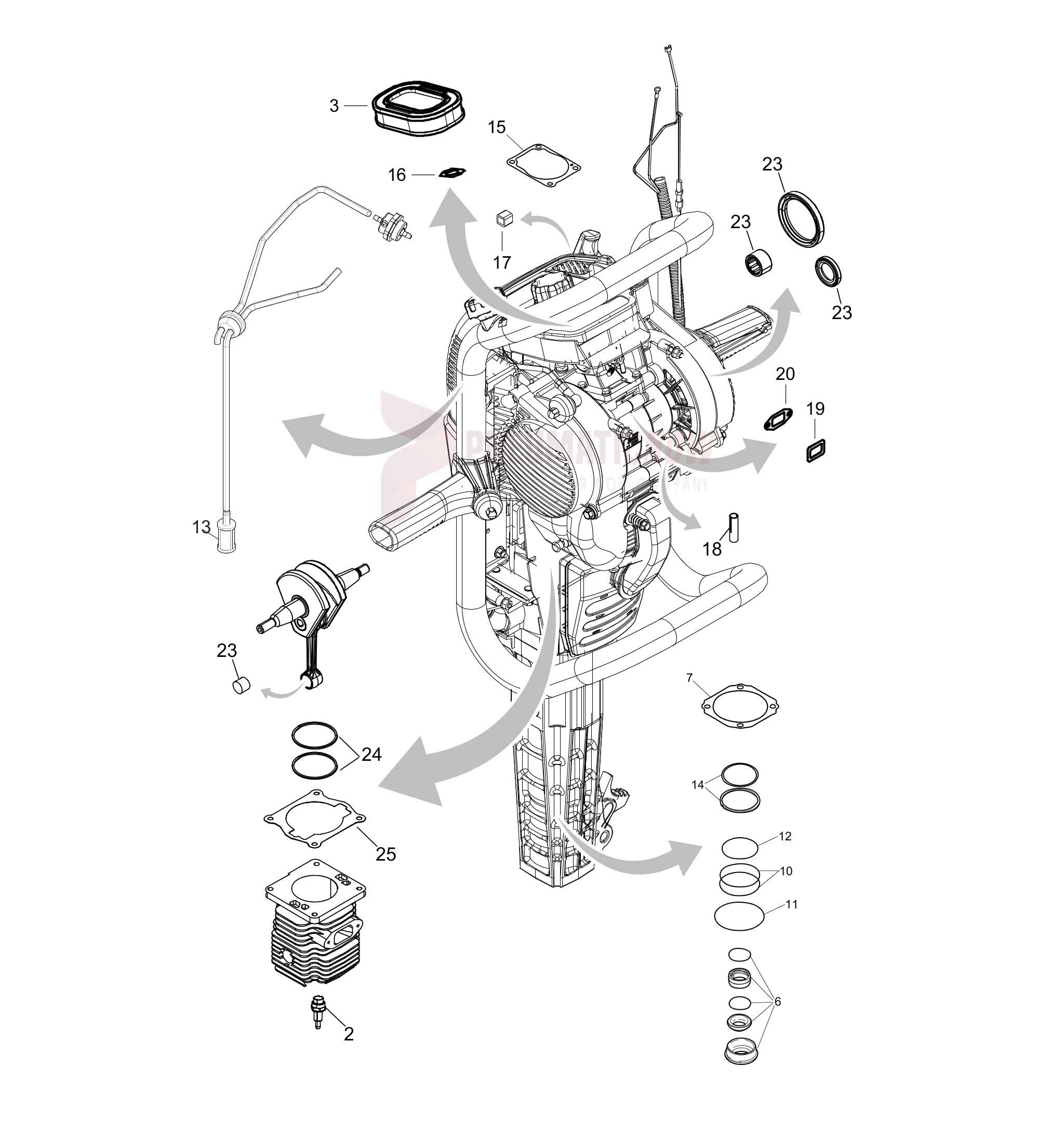

red hawk service kits
Id Part Number Qty Name
1 9234000687 1 SERVICE KIT 1M
2 9234000448 1 SPARK PLUG
3 9234000136 1 AIR FILTER
4 9234000688 1 SERVICE KIT 3M
5 9234000687 1 SERVICE KIT 1M
6 9234000554 1 SCRAPER RING
7 9234000128 1 GASKET
8 9234000689 1 Six months service kit
9 9234000688 1 SERVICE KIT 3M
10 9234000228 2 O-RING
11 9234000229 1 O-RING
12 9234000230 1 O-RING
13 9232230600 1 Fuel filter
14 9234000271 2 PISTON RING
15 9234021481 1 GASKET
16 9234000137 1 GASKET
17 9234000335 2 DAMPING BUSH
18 9234000575 3 Sleeve
19 9234000413 1 GASKET
20 9234000267 1 GASKET
21 9234000690 1 SERVICE KIT 12M
22 9234000689 1 Six months service kit
23 9234000318 1 BEARING KIT
24 9234000007 2 PISTON RING
25 1816070100 1 GASKET
26 9234001106 1 SERVICE KIT 2
27 9234000136 10 AIR FILTER

CP Red hawk Road Body parts diagram

IdPart NumberQtyName
1<atarget=’_blank’href=’https://pneumaticnow.com/product/atlas-copco-back-cover-cpl-part-9234021035′>92340210351BACK COVER, CPL
2 1Back cover
392340009231WARNING SIGN
4 4FLANGE NUT
589150025241NOISE LEVEL 109DB
692340208691OIL MIX LABEL
792340003541DECAL
8 2Instruction label
9 4FLANGE NUT
1092340003451DECAL DECOMP
1192340000561PLUG KEY
1292340185001Service cover,complete
1392340210381Filter cover,complete
14 1Filter cover
15 1Filter cover knob
16 1Label “Startinstruction”
1792340208641WARNING SIGN
18 1Label, Warning (32 x160 mm, 1 1/4 x 6 1/4 in.)
19 1Label, Warning (32 x152 mm, 1 1/4 x 6 in.)
20 1Label, Warning (28 x160mm, 1 1/8 x 6 1/4 in.)
21 1Label, Warning (28 x152 mm, 1 1/8 x 6 in.)
22 1Label, Warning (25 x108 mm, 1 x 4 1/4 in.)
2392340002651FILTER HOUS.
2492340005121PUMP
2692340002971Pipe
2792340002981PIPE
2892320208802NUT
2992340000631PLATE
30 1Filter housing
3192340000261CHOKE LEVER
3292340010301CHOKE ARM
3392340001371GASKET
3492340001361AIR FILTER
3592340001141START.COVER
3692340213861STARTER COVER ASSY(CP
37 1Starter cover
3892320503503LOCKING RING
3992320905203BUSHING
4092320905301ROPE GUIDE
4192340001151PULL WHEEL
4392340004911STARTER SPRING
4492340000401FIBERWASHER
4592340000411WASHER
4692340000541LOCK SPRING
4792340000591STARTER ROPE
4892340000451STARTER HANDLE
4992320115301BOLT
5092340002011FAN COVER
5192320115302BOLT
5492320905202BUSHING
5592340000811FAN ASSY
5792340000841HUB
5803843310001WASHER
5992340000851WASHER
6092320209001LOCK NUT
6192340015451MUFFLER
6392320122002SCREW
6492340004862SPRING
6592320124002SCREW
6692340004131GASKET
6792340004021MUFFL INSERT
6892340002671GASKET
6992340006741HINGE
7092340004101SPRING PIN
8292340210361FRONT COVER CPL
8392340208741DECOMP LABEL
8492340110001EPA LABEL
8592340186001CP LOGO
86 1Front cover
8792340187012ROAD LOGO

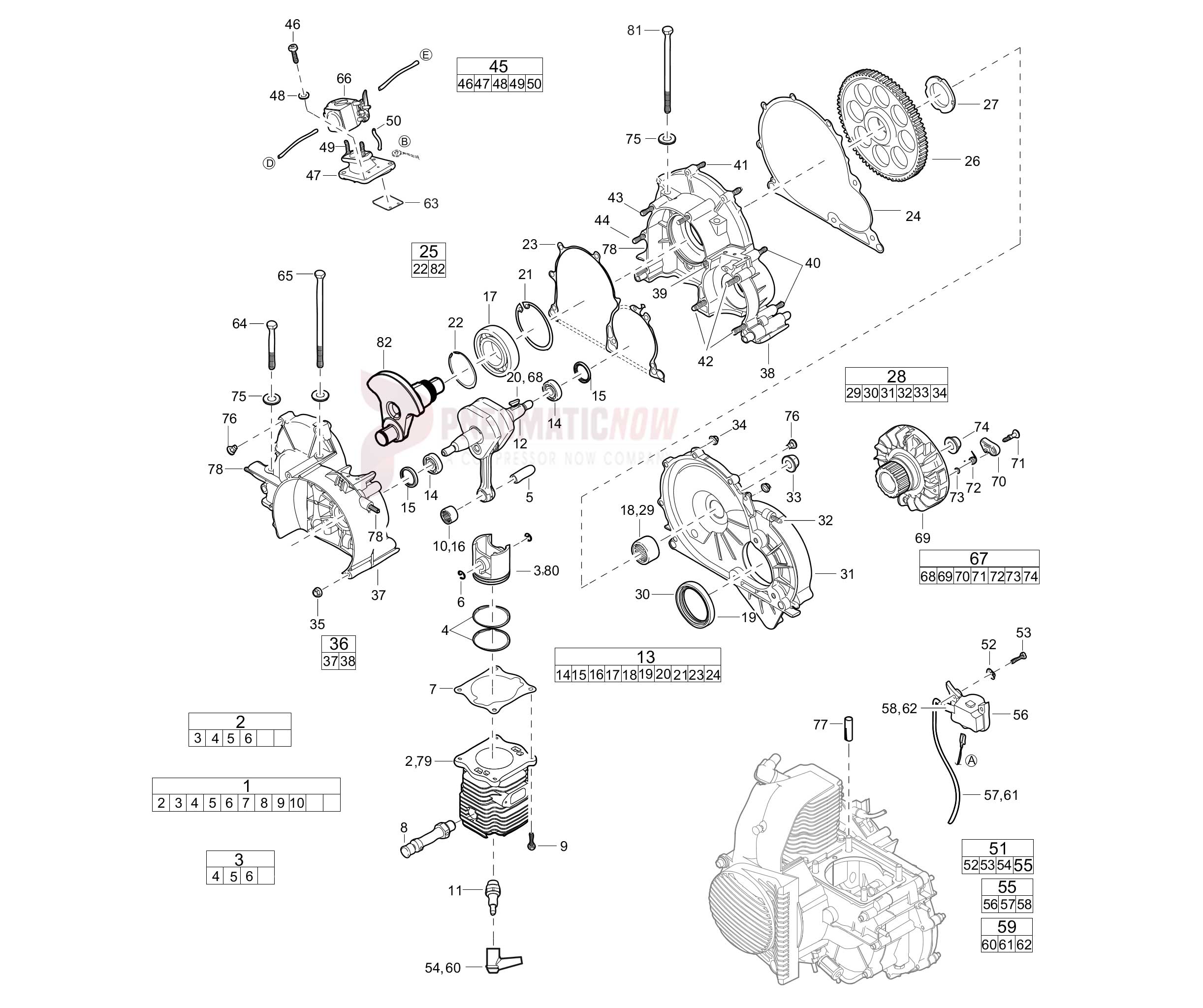

motor red hawk

IdPart NumberQtyName
192340001061CYLINDER
718160701001GASKET
292340000121MOTORCYLINDER
392340000111PISTON
692340000092LOCK RING
592340000081PISTON PIN
492340000072PISTON RING
8092340000051Piston
7992340000021Cylinder
992320118804FLANGE SCREW
892340003401DECOMPVALV
1092340003411NEEDLE CARRIER
1192340001191SPARK PLUG
1292340000381CRANKSHAFT ASSY
1392340003181BEARING KIT
1592340006062RADIAL LIP SEAL
1692340003411NEEDLE CARRIER
1892340003961NEEDLE BUSHING
1992340000741SEAL RING
2092322228401WEDGE
2192340000721LOCK RING
2392340004141GASKET
2492340004151GASKET
2592340185501TRANSMISSION SHAFT, COMPLETE
82 1Transmission shaft
2292340000751Lock ring
2692340002791SPUR PINION
2792340000761NUT
2892340003201TRANSM.COVER
2992340003961NEEDLE BUSHING
3092340000741SEAL RING
3292340004231STUD
3392340030601OIL PLUG
34 8FLANGE NUT
35 4FLANGE NUT
3692340211841CRANKCASE ASSY
37 1Crankcase
38 1Crankcase
3992340001581STUD
4092340000713STUD
4192340001573STUD
4292340000694STUD
4392340000674Stud, M6 x 30 mm, L = 45 mm
4492340000681STUD
4592340015481CRANKC.VALVE
4692320118804FLANGE SCREW
4803012318001WASHER PLAIN
4992340001802STUD
5092340003241PIPE 36MM
5192340002811EL UNIT
5292340002051PROTECTIVE WASH
5392320120003SCREW
55 1Electronic unit, complete
56 1Electronic unit
57 1Ignition cable
58 1Grommet
5992340006011CABLE CPL .
63Obsolete1REED LAMELLA
6401471335031SCREW
6501471345031HEX. HEAD SCREW
6692340209461Carburettor
6792340003041FLYWHEEL
6892322228401WEDGE
69 1Flywheel
7092340000322DRIVER
7192340001542SCREW
7292340001552TORSION SPRING
7392340002002WASHER
7492320209001LOCK NUT
7503000274744PLAIN WASHER(A) 8.4 X 16 X 1.5
7692320905202BUSHING
7792340005753Sleeve
7892340004233STUD
8101471347032Hexagon head screw

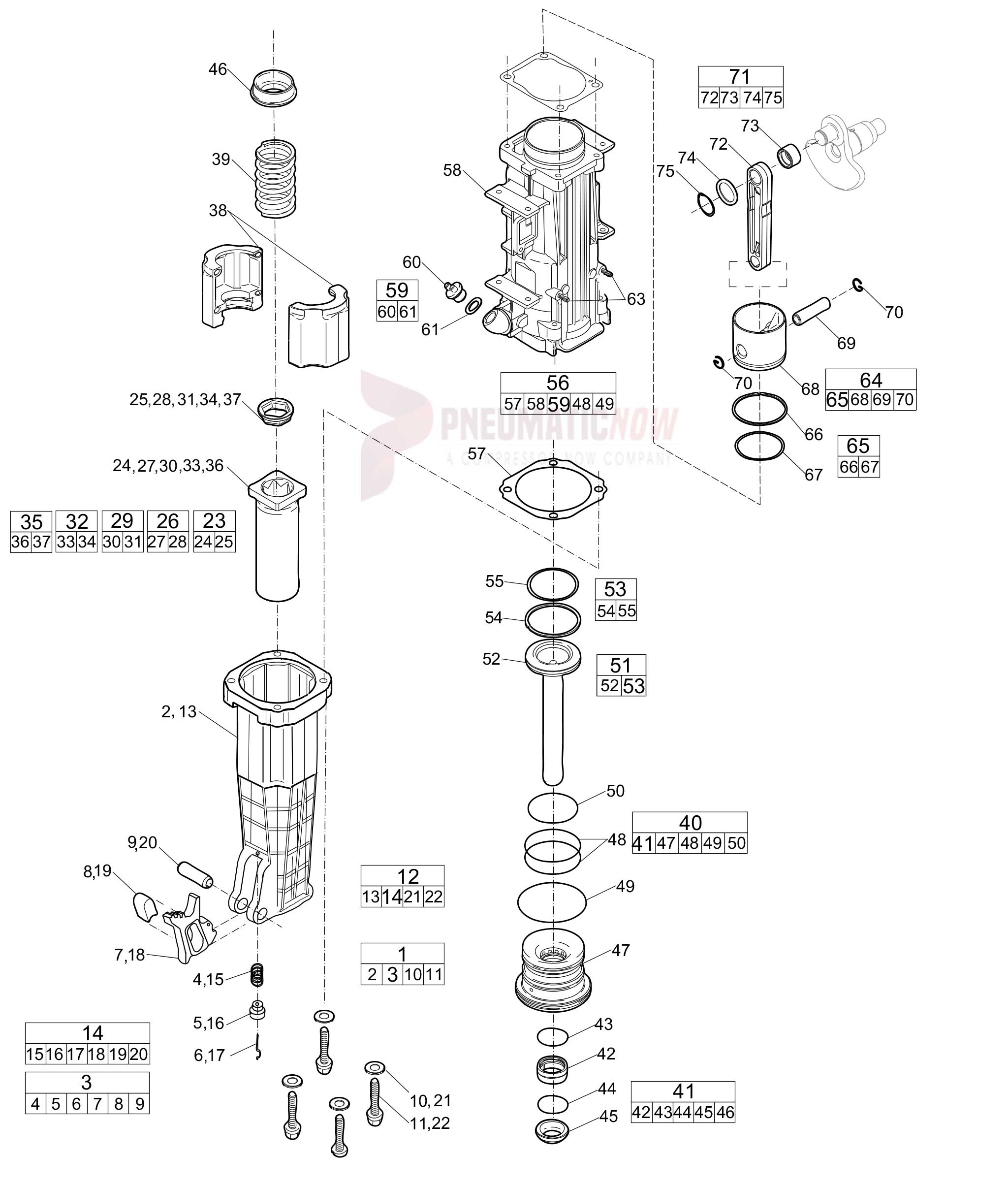

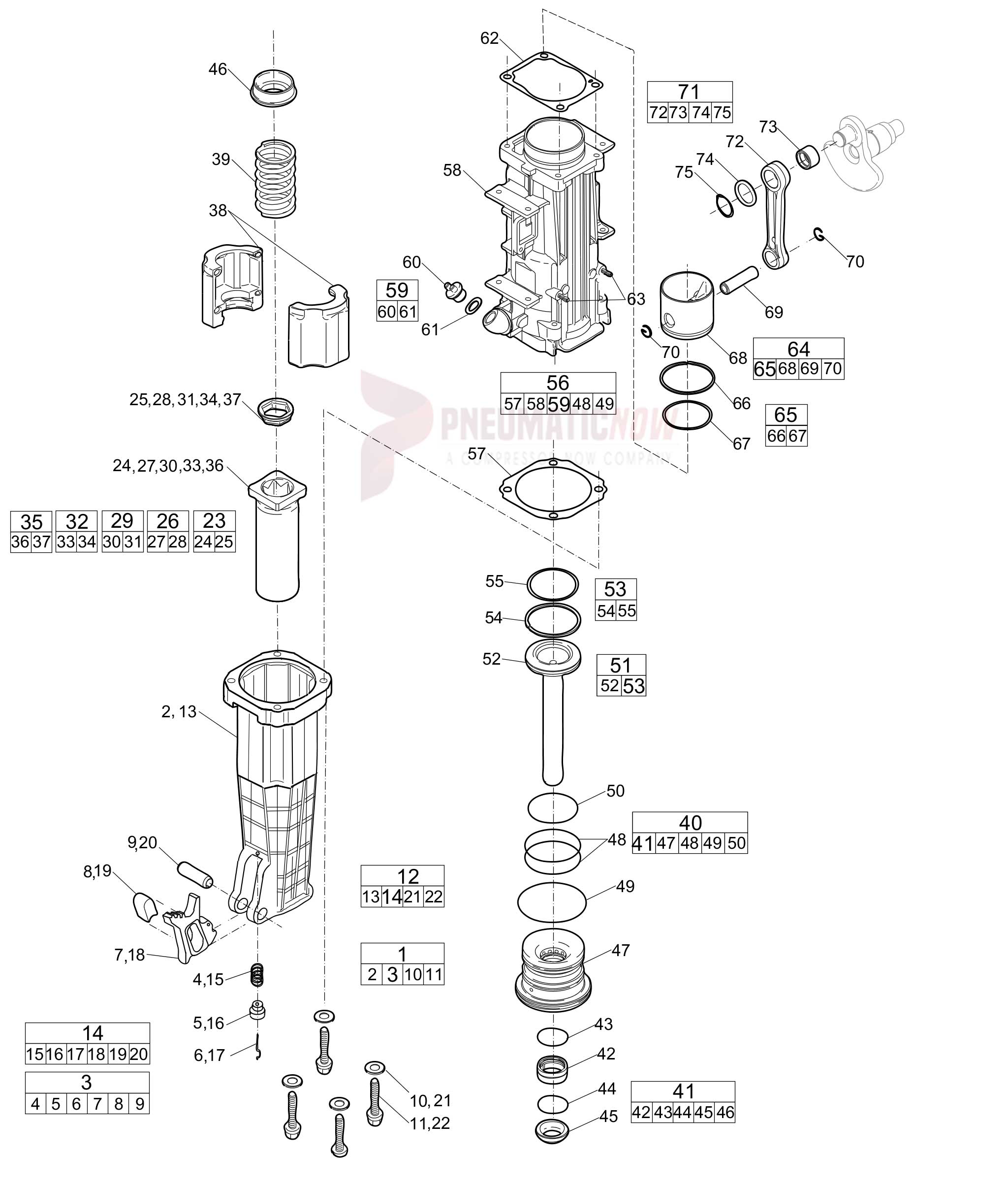

Percussion unit

IdPart NumberQtyName
192340209471BREAKER HOUSING, COMPLETE
292340129961BREAKER HOUSING
392340006371TOOL LATCH
492340006351COMPRESS.SPRING
592320905401GUIDE
692340006361LINK ARM
892340000951LIP
992340000941CYL PIN
1003000274744PLAIN WASHER(A) 8.4 X 16 X 1.5
1192340010044HEX. SOCK. SCREW
1292340209491BREAKER HOUSING, COMPLETE
1392340129961BREAKER HOUSING
1492340006371TOOL LATCH
1592340006351COMPRESS.SPRING
1692320905401GUIDE
1792340006361LINK ARM
1992340000951LIP
2092340000941CYL PIN
2103000274744PLAIN WASHER(A) 8.4 X 16 X 1.5
2292340010044HEX. SOCK. SCREW
2392340126401TOOL CHUCK, COMPLETE (28X152)
2592340005241SEAL 11/8+
2692340126301TOOL CHUCK, COMPLETE (28X160)
2892340005241SEAL 11/8+
2992340126201Tool chuck
3192340005171GASKET
3292340126101TOOL CHUCK, COMPLETE (32X160)
33 1Tool chuck, 32 x 160 mm, 11/4 x 61/4 in.
3492340005171GASKET
3592340126501Tool chuck
3792340030981SEALING
3892340005352FEED STOP
3992340001791SPRING
4092340005471TOOL GUIDE ASSY
4192340005541SCRAPER RING
43 1O-RING
44 1Lock ring
45 1Scraper ring
4692340005361SUPPORT RING
47 1Piston guide
4892340002282O-RING
4992340002291O-RING
5092340002301O-RING
5192340003001HAMM.PISTON
5392340002711PISTON RING
55 1O-RING
5692340004081CYLINDER CPL
5792340001281GASKET
5992320123511OILPLUG ASSY
6192320310901SEAL RING
6292340214811GASKET
6392340004232STUD
6492340003011DRIVE PISTON
6592340002711PISTON RING
67 1O-RING
68 1Drive piston
6992340002451DRIVING PISTON PIN
7092320505602LOCK RAIL
7192340185201CONNECTION ROD CPL
7392340003961NEEDLE BUSHING
7492340004121SHIM
7592340002841LOCK RING
6892322228401WEDGE
69 1Flywheel
7092340000322DRIVER
7192340001542SCREW
7292340001552TORSION SPRING
7392340002002WASHER
7492320209001LOCK NUT
7503000274744PLAIN WASHER(A) 8.4 X 16 X 1.5
7692320905202BUSHING
7792340005753Sleeve
7892340004233STUD
8101471347032Hexagon head screw

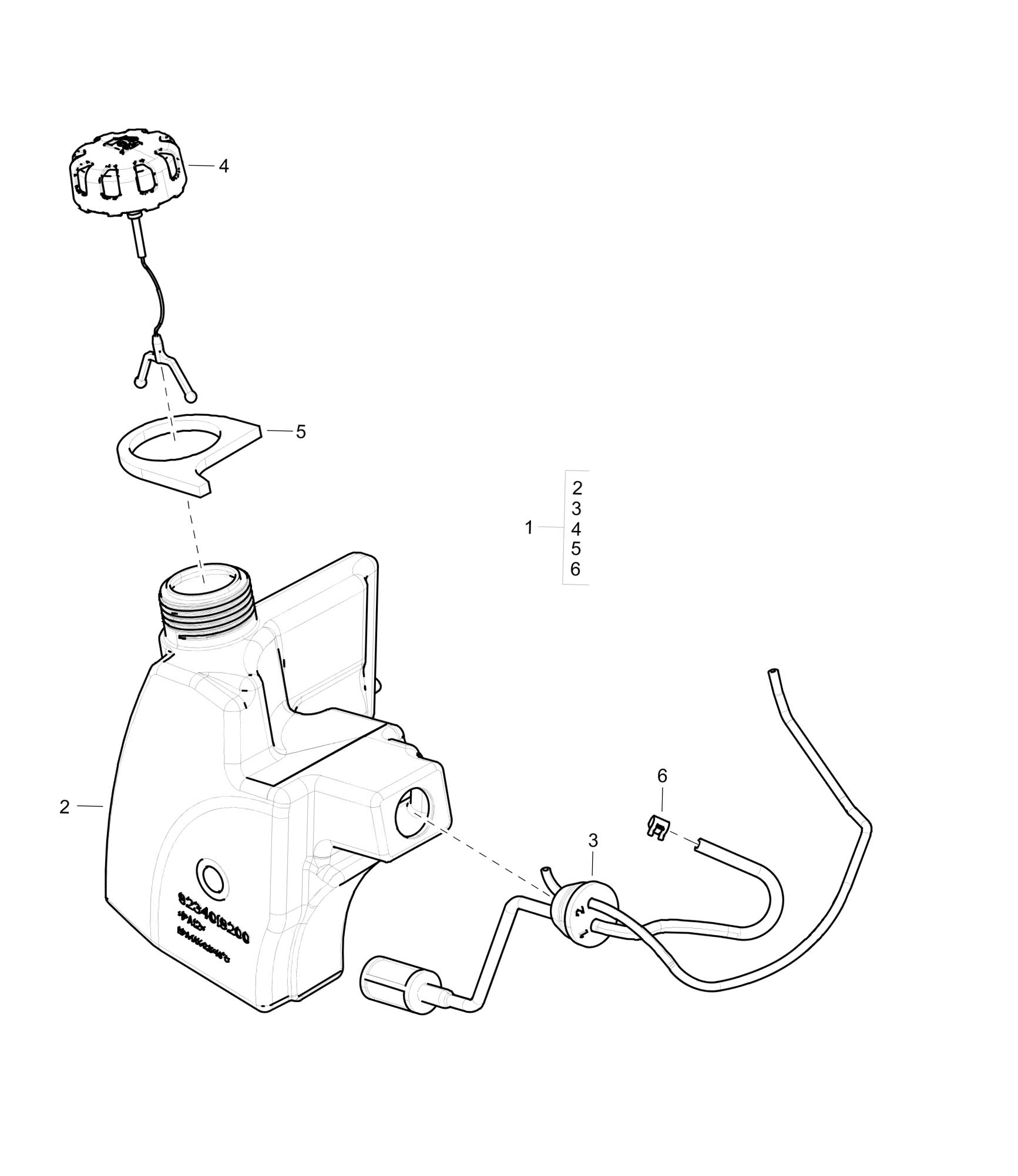

Fuel Tank - Red Hawk Road

IdPart NumberQtyName
2 1Fueltank assembly
392340208381TANK GROMMET ASSY
416389036801Tank cap
592340193001TANK SEALING
692340208361HOSE CLIP

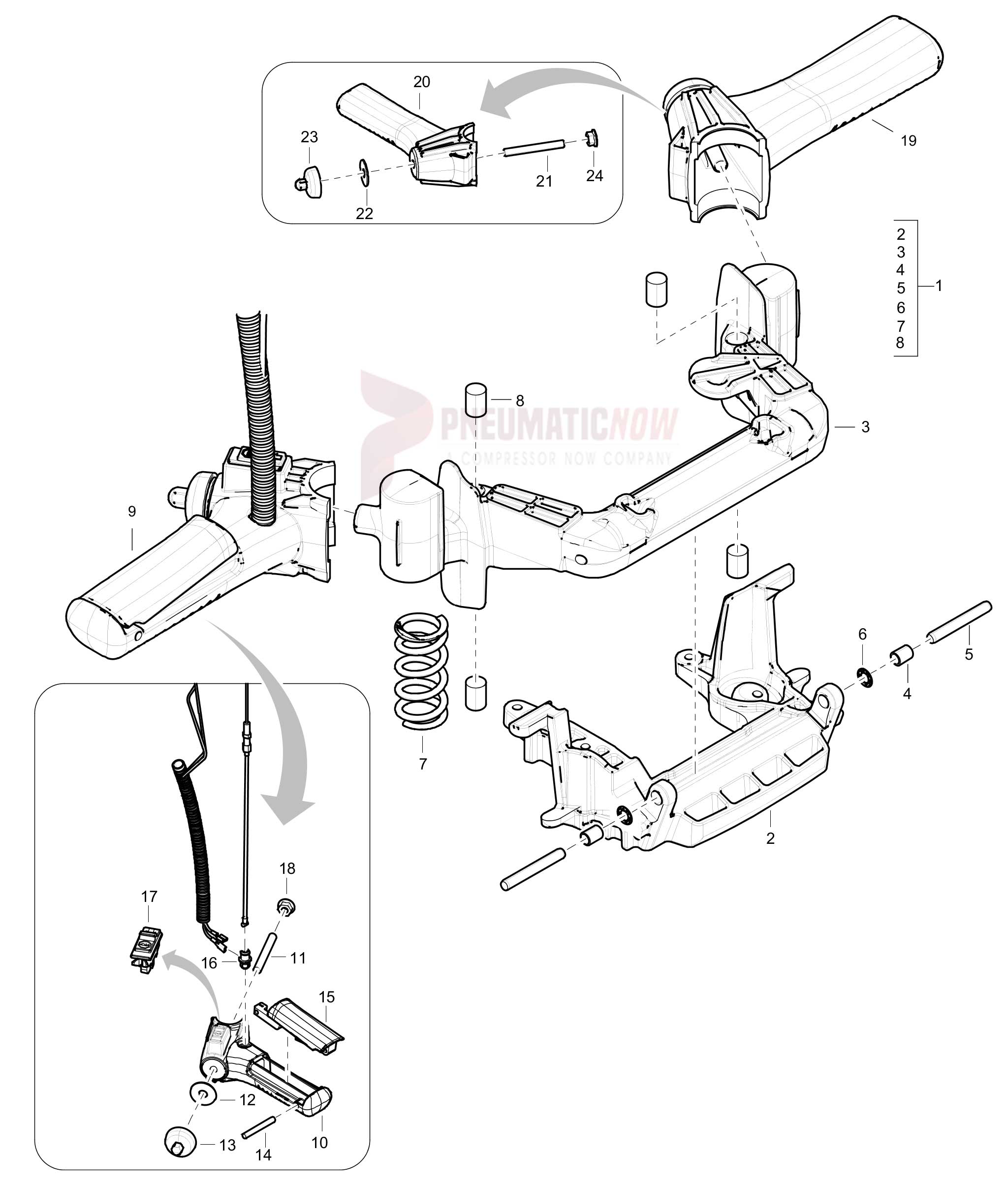

handle assembly
Id Part Number Qty Name
1 9234021034 1 Handle Assy
2 1 Handle frame bracket
3 1 Handle frame
4 9234020861 2 PLAIN BEARING
5 0101231134 2 Parallel pin
6 2 Lock washer
7 1 SPRING
8 9234002921 4 END RUBBERS
9 9234020340 1 Handle, complete
10 1 Handle
11 9234020306 1 STUD
12 1 Washer
13 9234019641 1 HANDEL KNOB
14 9234000565 1 PARALLEL PIN
15 9234000525 1 CONTROL
16 9234000490 1 NIPPLE
17 9234019650 1 IGNITION STOP SWITCH
18 0261109981 1 Nut
19 9234020330 1 HANDLE, COMPLETE
20 9234000488 1 HANDLE
21 9234020306 1 STUD
22 1 Washer
23 9234019641 1 HANDEL KNOB
24 0261109981 1 Nut

CP Red Hawk Rail

red hawk service kits
Id Part Number Qty Name
1 9234000687 1 SERVICE KIT 1M
2 9234000448 1 SPARK PLUG
3 9234000136 1 AIR FILTER
4 9234000688 1 SERVICE KIT 3M
5 9234000687 1 SERVICE KIT 1M
6 9234000554 1 SCRAPER RING
7 9234000128 1 GASKET
8 9234000689 1 Six months service kit
9 9234000688 1 SERVICE KIT 3M
10 9234000228 2 O-RING
11 9234000229 1 O-RING
12 9234000230 1 O-RING
13 9232230600 1 Fuel filter
14 9234000271 2 PISTON RING
15 9234021481 1 GASKET
16 9234000137 1 GASKET
17 9234000335 2 DAMPING BUSH
18 9234000575 3 Sleeve
19 9234000413 1 GASKET
20 9234000267 1 GASKET
21 9234000690 1 SERVICE KIT 12M
22 9234000689 1 Six months service kit
23 9234000318 1 BEARING KIT
24 9234000007 2 PISTON RING
25 1816070100 1 GASKET
26 9234001106 1 SERVICE KIT 2
27 9234000136 10 AIR FILTER

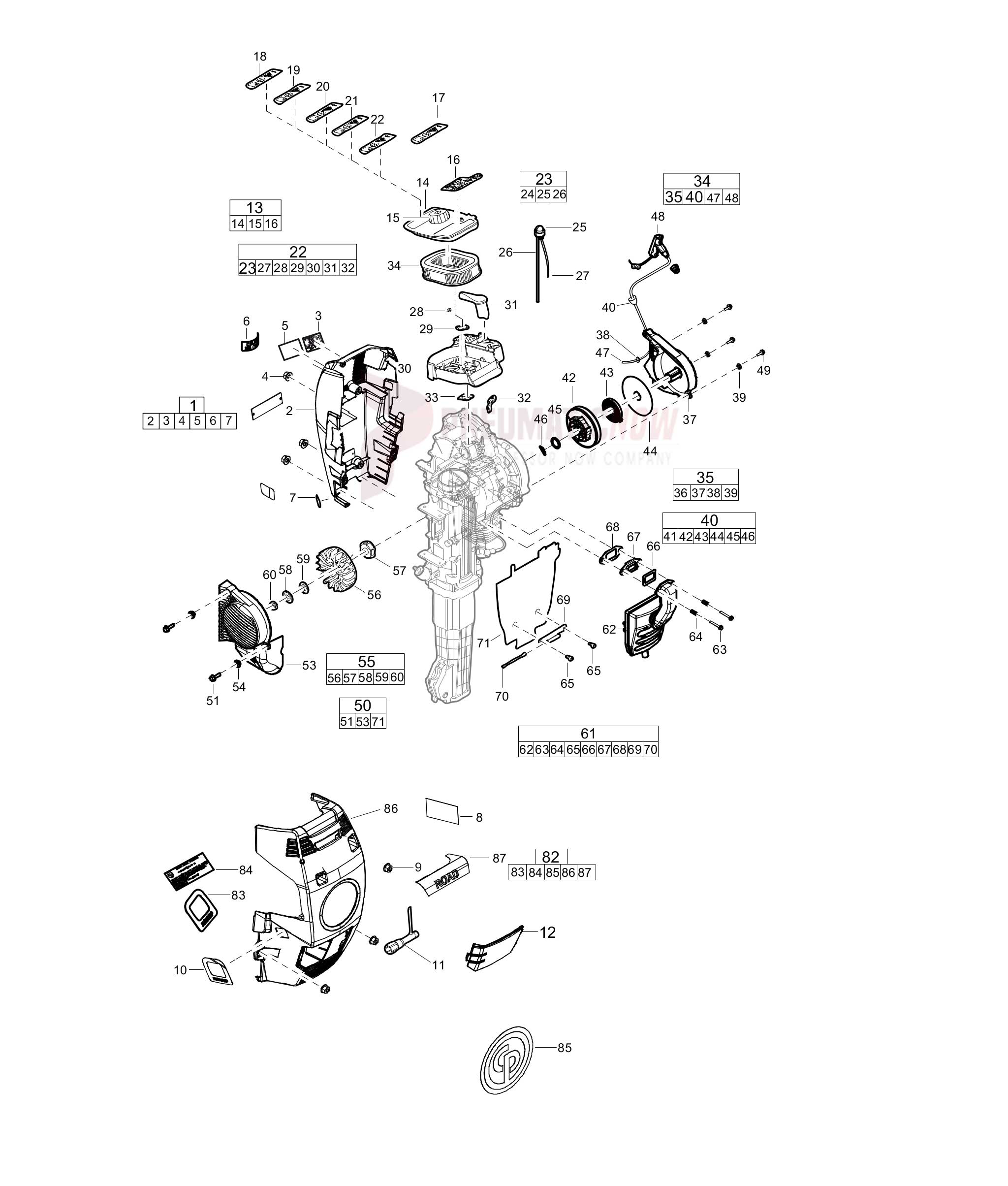

cp redhawk rail

IdPart NumberQtyName
1<atarget=’_blank’href=’https://pneumaticnow.com/product/atlas-copco-back-cover-cpl-part-9234021035′>92340210351BACK COVER, CPL
2 1Back cover
392340009231WARNING SIGN
4 4FLANGE NUT
589150025241NOISE LEVEL 109DB
692340208691OIL MIX LABEL
792340003541DECAL
8 2Instruction label
9 4FLANGE NUT
1092340003451DECAL DECOMP
1192340000561PLUG KEY
1292340185001Service cover,complete
1392340210381Filter cover,complete
14 1Filter cover
15 1Filter cover knob
16 1Label “Startinstruction”
1792340208641WARNING SIGN
18 1Label, Warning (32 x160 mm, 1 1/4 x 6 1/4 in.)
19 1Label, Warning (32 x152 mm, 1 1/4 x 6 in.)
20 1Label, Warning (28 x160mm, 1 1/8 x 6 1/4 in.)
21 1Label, Warning (28 x152 mm, 1 1/8 x 6 in.)
22 1Label, Warning (25 x108 mm, 1 x 4 1/4 in.)
2392340002651FILTER HOUS.
2492340005121PUMP
2692340002971Pipe
2792340002981PIPE
2892320208802NUT
2992340000631PLATE
30 1Filter housing
3192340000261CHOKE LEVER
3292340010301CHOKE ARM
3392340001371GASKET
3492340001361AIR FILTER
3592340001141START.COVER
3692340213861STARTER COVER ASSY(CP
37 1Starter cover
3892320503503LOCKING RING
3992320905203BUSHING
4092320905301ROPE GUIDE
4192340001151PULL WHEEL
4392340004911STARTER SPRING
4492340000401FIBERWASHER
4592340000411WASHER
4692340000541LOCK SPRING
4792340000591STARTER ROPE
4892340000451STARTER HANDLE
4992320115301BOLT
5092340002011FAN COVER
5192320115302BOLT
5492320905202BUSHING
5592340000811FAN ASSY
5792340000841HUB
5803843310001WASHER
5992340000851WASHER
6092320209001LOCK NUT
6192340015451MUFFLER
6392320122002SCREW
6492340004862SPRING
6592320124002SCREW
6692340004131GASKET
6792340004021MUFFL INSERT
6892340002671GASKET
6992340006741HINGE
7092340004101SPRING PIN
8292340210361FRONT COVER CPL
8392340208741DECOMP LABEL
8492340110001EPA LABEL
8592340186001CP LOGO
86 1Front cover
8792340187012ROAD LOGO

motor red hawk

IdPart NumberQtyName
192340001061CYLINDER
718160701001GASKET
292340000121MOTORCYLINDER
392340000111PISTON
692340000092LOCK RING
592340000081PISTON PIN
492340000072PISTON RING
8092340000051Piston
7992340000021Cylinder
992320118804FLANGE SCREW
892340003401DECOMPVALV
1092340003411NEEDLE CARRIER
1192340001191SPARK PLUG
1292340000381CRANKSHAFT ASSY
1392340003181BEARING KIT
1592340006062RADIAL LIP SEAL
1692340003411NEEDLE CARRIER
1892340003961NEEDLE BUSHING
1992340000741SEAL RING
2092322228401WEDGE
2192340000721LOCK RING
2392340004141GASKET
2492340004151GASKET
2592340185501TRANSMISSION SHAFT, COMPLETE
82 1Transmission shaft
2292340000751Lock ring
2692340002791SPUR PINION
2792340000761NUT
2892340003201TRANSM.COVER
2992340003961NEEDLE BUSHING
3092340000741SEAL RING
3292340004231STUD
3392340030601OIL PLUG
34 8FLANGE NUT
35 4FLANGE NUT
3692340211841CRANKCASE ASSY
37 1Crankcase
38 1Crankcase
3992340001581STUD
4092340000713STUD
4192340001573STUD
4292340000694STUD
4392340000674Stud, M6 x 30 mm, L = 45 mm
4492340000681STUD
4592340015481CRANKC.VALVE
4692320118804FLANGE SCREW
4803012318001WASHER PLAIN
4992340001802STUD
5092340003241PIPE 36MM
5192340002811EL UNIT
5292340002051PROTECTIVE WASH
5392320120003SCREW
55 1Electronic unit, complete
56 1Electronic unit
57 1Ignition cable
58 1Grommet
5992340006011CABLE CPL .
63Obsolete1REED LAMELLA
6401471335031SCREW
6501471345031HEX. HEAD SCREW
6692340209461Carburettor
6792340003041FLYWHEEL
6892322228401WEDGE
69 1Flywheel
7092340000322DRIVER
7192340001542SCREW
7292340001552TORSION SPRING
7392340002002WASHER
7492320209001LOCK NUT
7503000274744PLAIN WASHER(A) 8.4 X 16 X 1.5
7692320905202BUSHING
7792340005753Sleeve
7892340004233STUD
8101471347032Hexagon head screw

Percussion Unit - Red Hawk Rail parts diagram

IdPart NumberQtyName
192340209471BREAKER HOUSING, COMPLETE
292340129961BREAKER HOUSING
392340006371TOOL LATCH
492340006351COMPRESS.SPRING
592320905401GUIDE
692340006361LINK ARM
892340000951LIP
992340000941CYL PIN
1003000274744PLAIN WASHER(A) 8.4 X 16 X 1.5
1192340010044HEX. SOCK. SCREW
1292340209491BREAKER HOUSING, COMPLETE
1392340129961BREAKER HOUSING
1492340006371TOOL LATCH
1592340006351COMPRESS.SPRING
1692320905401GUIDE
1792340006361LINK ARM
1992340000951LIP
2092340000941CYL PIN
2103000274744PLAIN WASHER(A) 8.4 X 16 X 1.5
2292340010044HEX. SOCK. SCREW
2392340126401TOOL CHUCK, COMPLETE (28X152)
2592340005241SEAL 11/8+
2692340126301TOOL CHUCK, COMPLETE (28X160)
2892340005241SEAL 11/8+
2992340126201Tool chuck
3192340005171GASKET
3292340126101TOOL CHUCK, COMPLETE (32X160)
33 1Tool chuck, 32 x 160 mm, 11/4 x 61/4 in.
3492340005171GASKET
3592340126501Tool chuck
3792340030981SEALING
3892340005352FEED STOP
3992340001791SPRING
4092340005471TOOL GUIDE ASSY
4192340005541SCRAPER RING
4692340005361SUPPORT RING
47 1Piston guide
4892340002282O-RING
4992340002291O-RING
5092340002301O-RING
5192340003001HAMM.PISTON
5392340002711PISTON RING
5692340004081CYLINDER CPL
5792340001281GASKET
5992320123511OILPLUG ASSY
6192320310901SEAL RING
6292340214811GASKET
6392340004234STUD
6492340003011DRIVE PISTON
6592340002711PISTON RING
6992340002451DRIVING PISTON PIN
7092320505602LOCK RAIL
7192340185201CONNECTION ROD CPL
7392340003961NEEDLE BUSHING
7492340004121SHIM
7503351122001CIRCLIP

Fuel Tank - Red Hawk Road

IdPart NumberQtyName
2 1Fueltank assembly
392340208381TANK GROMMET ASSY
416389036801Tank cap
592340193001TANK SEALING
692340208361HOSE CLIP

handle assembly

IdPart NumberQtyName
192340210341Handle Assy
2 1Handle frame bracket
3 1Handle frame
492340208612PLAIN BEARING
501012311342Parallel pin
6 2Lock washer
7 1SPRING
892340029214END RUBBERS
992340203401Handle, complete
10 1Handle
1192340203061STUD
12 1Washer
1392340196411HANDEL KNOB
1492340005651PARALLEL PIN
1592340005251CONTROL
1692340004901NIPPLE
1792340196501IGNITION STOP SWITCH
1802611099811Nut
1992340203301HANDLE, COMPLETE
2092340004881HANDLE
2192340203061STUD
22 1Washer
2392340196411HANDEL KNOB
2402611099811Nut

Related Products
