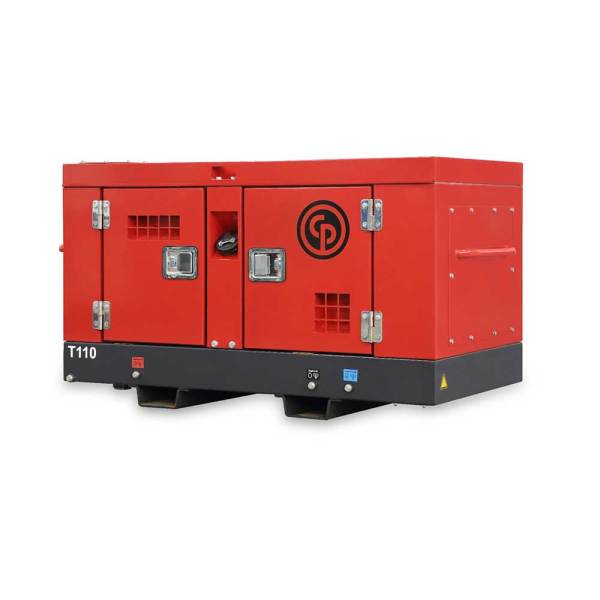

Chicago Pneumatic T 110 KD8 Compressor
Original price was: $27,127.00.$17,633.00Current price is: $17,633.00.
- Description
- Additional information
Description
Chicago Pneumatic T 110 KD8
Standard Configuration:
- 110% Spill Free Containment, with remote drains.
- Kubota D902 Tier 4 Final 25hp mechanical diesel engine (muffler only) with starter protection.
- Thermostatic By Pass Valve, Anti-airlock system in fuel lines to guarantee starting.
- Electrical shutoff switch. Utility Metal canopy built for heavy-duty applications with 3 layer anti-corrosion paint.
- Designed to reduce maintenance time with easy access filters and fluids. Pressure vessel comes with spin on filter. Base frame with in built forklift slots.
- Cold Start (CS)
- Additional Fuel Filter (AFF)
| Diesel | T110-7 | |
|---|---|---|
| Normal effective working | bar(psi) | 7(100) |
| Free air delivery | l/s | 47 |
| cfm | 100 | |
| m³/min | 2.8 | |
| Max. ambient temperature at sea level | °F | 122 |
| Min. starting temperature | °F | 14 |
| Min. starting temperature (Cold Start Aid) | °F | -4 |
| Engine | ||
| Model | Kubota D902 | |
| Number of cylinder | 3 | |
| Power output @ normal shaft speed | hp | 25 |
| Full load RPM | rpm | 3600 |
| Unload RPM | rpm | 2000 |
| Engine oil | gal | 0.8 |
| Compressor oil | gal | 1.3 |
| Fuel tank | gal | 5.3 |
| Optional extended fuel tank | gal | 2.6 |
| Length | inch | 62 |
| Width | inch | 29 |
| Height | inch | 33 |
| Weight | lbs | 1102 |
Standard features
- Spillage free frame with centralized drain
- Forklift slot as standard
- Two layer coating and stainless accessories for anti-corrosion protection
- Heavy duty air and fuel filter
- Ruggedized and simple control panel
- External fuel filling
- Corrosion free plastic fuel tank for full shift autonomy
Options
- After cooler and water separator
- Secondary fuel tank
- Spark arrestor and air inlet shutdown
- Safety cartridge
- Generator
- Cold weather starting aid (-4°F)
Additional information
| Weight | 1104 lbs |
|---|---|
| Dimensions | 62 × 29 × 33 in |
| Brand | |
| Connection | 3/4 in (2) |
| Length | 62 |
| PSI | |
| Model - Series | |
| Power | |
| Horsepower |
