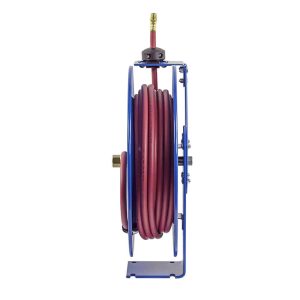

Coxreels Safety Series Spring Rewind Hose Reel for air/water: 1/2″ I.D., 100′ high visibility safety hose, 250 PSI Model EZ-SH-4100-HV
$989.00
Safety Series Spring Rewind Hose Reel for air/water: 1/2″ I.D., 100′ high visibility safety hose, 250 PSI
- Description
- Additional information
Description
FEATURES
COXREELS® EZ-SH Series “Super Hub” spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels’ original Super Hub dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.

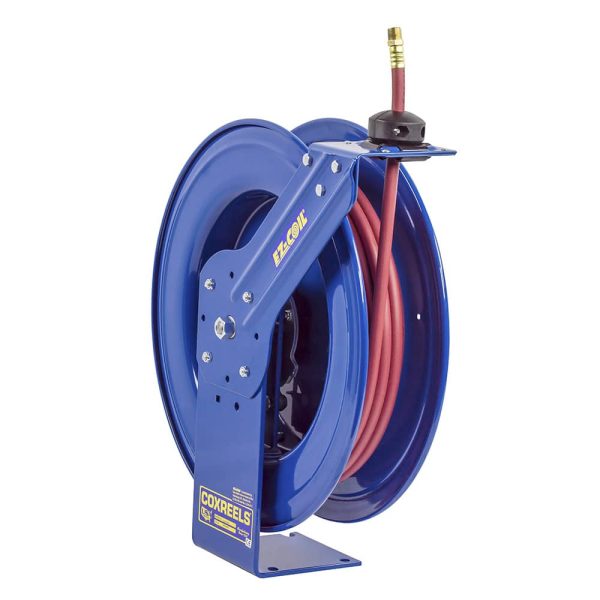

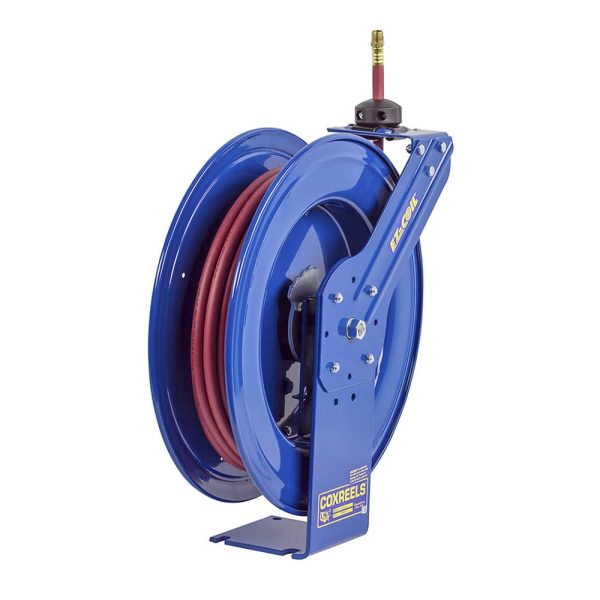

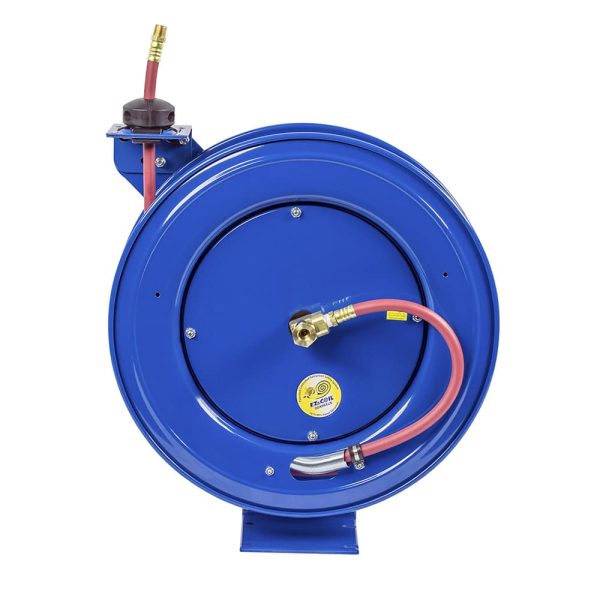

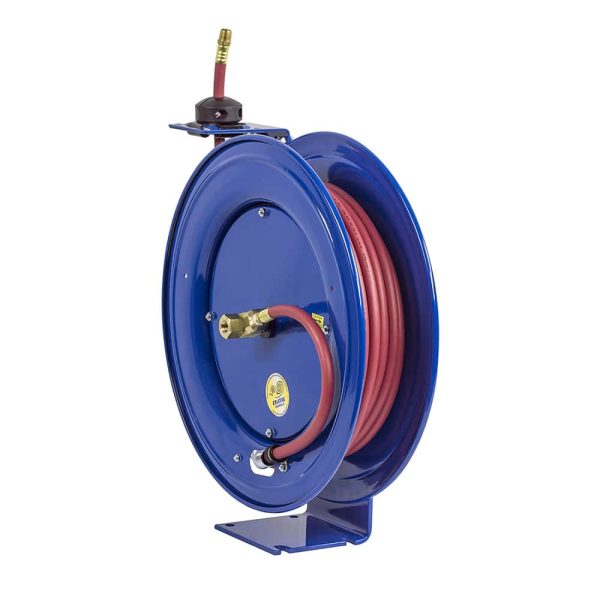

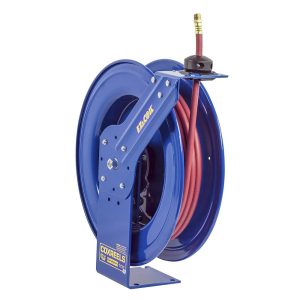

Model Shown: EZ-SH-350. Please refer to Overall Dimensions for the different reel sizes available.
SIGNATURE FEATURES
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
- SWIVEL – Machined from solid brass 90º full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- EZ-COIL® EQUIPPED – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Equipped with Coxreels exclusive super hub™ dual axle support
- MULTI-POSITION GUIDE ARM – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
| EZ-SH-3100 | 3/8″ | 5/8″ | 100′ | Yes | 300 | 71 | 8.25″(W) 21.25″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SH-350 | 3/8″ | 5/8″ | 50′ | Yes | 300 | 50 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SH-375 | 3/8″ | 5/8″ | 75′ | Yes | 300 | 50 | 8.25″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SH-4100 | 1/2″ | 3/4″ | 100′ | Yes | 300 | 81 | 8.75″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SH-450 | 1/2″ | 3/4″ | 50′ | Yes | 300 | 54 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SH-475 | 1/2″ | 3/4″ | 75′ | Yes | 300 | 68 | 8.75″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SH-525 | 3/4″ | 1 1/16″ | 25′ | Yes | 300 | 52 | 9.38″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SH-550 | 3/4″ | 1 1/16″ | 50′ | Yes | 300 | 69 | 9.88″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SHL-3100 | 3/8″ | 5/8″ | 100′ | No | 300 | 60 | 8.25″(W) 21.25″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SHL-350 | 3/8″ | 5/8″ | 50′ | No | 300 | 44 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SHL-375 | 3/8″ | 5/8″ | 75′ | No | 300 | 59 | 8.25″(W) 21.25″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SHL-4100 | 1/2″ | 3/4″ | 100′ | No | 300 | 66 | 8.75″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SHL-450 | 1/2″ | 3/4″ | 50′ | No | 300 | 46 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SHL-475 | 1/2″ | 3/4″ | 75′ | No | 300 | 57 | 8.75″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SHL-525 | 3/4″ | 1 1/16″ | 25′ | No | 300 | 45 | 9.38″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-SHL-550 | 3/4″ | 1 1/16″ | 50′ | No | 300 | 56 | 9.88″(W) 25.5″(H) 24″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-MP-350 | 3/8″ | 11/16″ | 50′ | No | 3000 | 65 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-MP-450 | 1/2″ | 13/16″ | 50′ | Yes | 2500 | 67 | 8.75″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-MPL-350 | 3/8″ | 11/16/” | 50′ | No | 3000 | 53 | 8.25″(W) 21.25″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-MPL-450 | 1/2″ | 13/16″ | 50′ | No | 2500 | 53 | 8.75″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-HP-150 | 1/4″ | 9/16″ | 50′ | Yes | 5000 | 64 | 8.75″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-HP-350 | 3/8″ | 11/16″ | 50′ | Yes | 4000 | 65 | 9.25″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-HPL-150 | 1/4″ | 9/16″ | 50′ | No | 5000 | 53 | 8.75″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
| EZ-HPL-350 | 3/8″ | 11/16″ | 50′ | No | 4000 | 53 | 9.25″(W) 25.5″(H) 19.5″(L) | 4″(M) 5″(N) | 6″(X) 6″(Y) |
