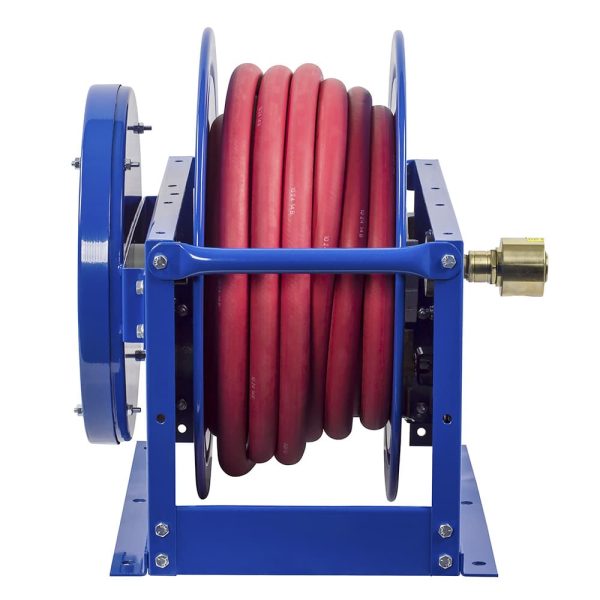

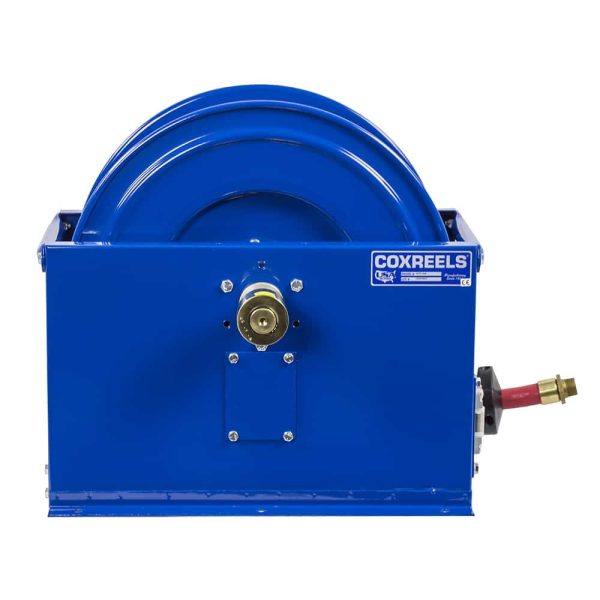

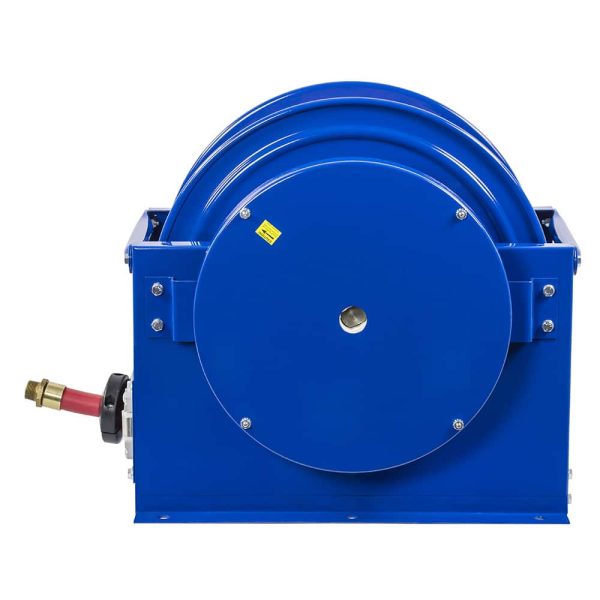

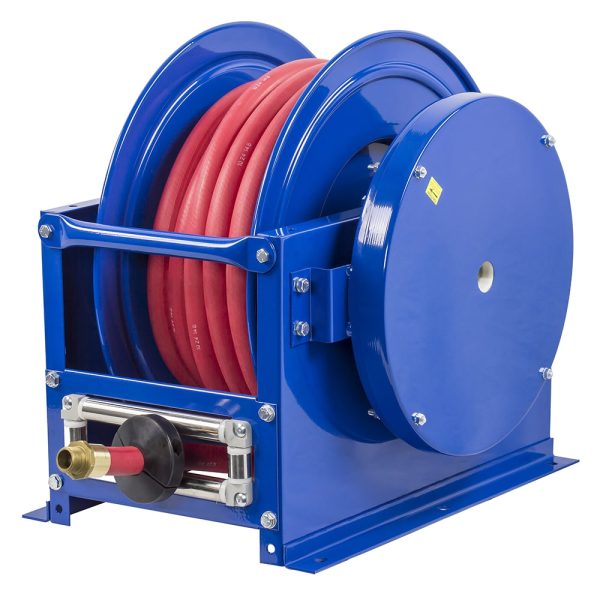

Coxreels Single Hose Spring Rewind for fuel: 3/4" I.D., 100' fuel hose, 300 PSI Model SLPF-5100 - Image 1
Coxreels Single Hose Spring Rewind for fuel: 3/4" I.D., 100' fuel hose, 300 PSI Model SLPF-5100 - Image 2
Coxreels Single Hose Spring Rewind for fuel: 3/4" I.D., 100' fuel hose, 300 PSI Model SLPF-5100 - Image 3
Coxreels Single Hose Spring Rewind for fuel: 3/4" I.D., 100' fuel hose, 300 PSI Model SLPF-5100 - Image 4
Coxreels Single Hose Spring Rewind for fuel: 3/4" I.D., 100' fuel hose, 300 PSI Model SLPF-5100 - Image 5
Coxreels Single Hose Spring Rewind for fuel: 3/4" I.D., 100' fuel hose, 300 PSI Model SLPF-5100 - Image 6
Coxreels Single Hose Spring Rewind for fuel: 3/4" I.D., 100' fuel hose, 300 PSI Model SLPF-5100 - Image 7

Coxreels Single Hose Spring Rewind for fuel: 3/4″ I.D., 100′ fuel hose, 300 PSI Model SLPF-5100

$1,877.00

Single Hose Spring Rewind for fuel: 3/4″ I.D., 100′ fuel hose, 300 PSI

SKU: SLPF-5100 Categories: , Brand:

Description

FEATURES

COXREELS® Fuel Dispensing Reels are designed to handle various non-aromatic fuel applications including diesel, kerosene, fuel oil and heating oil. Coxreels® professional fuel dispensing reels are an essential component found in utility, ground support, and bulk liquid handling transport services mounted on fuel storage & dispensing systems, fuel/lube trucks, aircraft refuelers, and tank trucks. The convenient uncoiling systems with the added hose control allow the operator to efficiently handle fuel transfers.

Model Shown: SLPF-650. Please refer to Overall Dimensions for the different reel sizes available.

SIGNATURE FEATURES

  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer’s limited warranty
  • Made in the U.S.A. – Sold & Supported Worldwide
  • SWIVEL – Machined from solid brass 90º full-flow NPT swivel for fuel dispensing applications.
  • CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • BOX-STYLE DESIGN – Sturdy box-style, reinforced steel frame design provides maximum strenght and stability.
  • STEEL ROLLERS – Heavy duty 1″ stainless steel pinch-proof rollers.
  • OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.

MODEL I.D O.D LENGTH HOSE MAX PSI SHIP WEIGHT (LBS) OVERALL DIMENSIONS (W) (H) (L) MOUNTING PATTERN (M) (N) BASE (X) (Y)
SLPF-5100 3/4″ 1 3/16″ 100′ Yes 300 107 19.63″(W) 20.5″(H) 22.88″(L) 14″(M) 22″(N) 15.38″(X) 25″(Y)
SLPF-550 3/4″ 1 3/16″ 50′ Yes 300 107 19.63″(W) 20.5″(H) 22.88″(L) 14″(M) 18.5″(N) 15.38″(X) 21.5″(Y)
SLPF-575 3/4″ 1 3/16″ 75′ Yes 300 107 19.63″(W) 20.5″(H) 22.88″(L) 14″(M) 22″(N) 15.38″(X) 25″(Y)
SLPF-625 1″ 1 1/2″ 25′ Yes 300 142 19.63″(W) 24.5″(H) 26.38″(L) 14″(M) 18.5″(N) 15.38″(X) 21.5″(Y)
SLPF-650 1″ 1 1/2″ 50′ Yes 300 142 19.63″(W) 24.5″(H) 26.38″(L) 14″(M) 22″(N) 15.38″(X) 25″(Y)
SLPF-675 1″ 1 1/2″ 75′ Yes 300 142 19.63″(W) 28.5″(H) 26.38″(L) 14″(M) 22″(N) 15.38″(X) 25″(Y)

Additional information

Weight 107 lbs
Dimensions 22.88 × 19.63 × 20.5 in
Brand

Length

100 ft
ID - Inside Diameter

3/4 in
Fluid
