Coxreels Stainless Steel Spring Rewind Enclosed Hose Reel: 1/2″ I.D., 50′ hose capacity, less hose, 2500 PSI Model ENML-N-450-SS

$1,769.00

Stainless Steel Spring Rewind Enclosed Hose Reel: 1/2″ I.D., 50′ hose capacity, less hose, 2500 PSI

SKU: ENML-N-450-SS Categories: , Brand:

Description

FEATURES

COXREELS® SS Series “Stainless Steel” spring driven hose reels have similar features to their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas, and anywhere that rust, corrosion and contamination thrive.

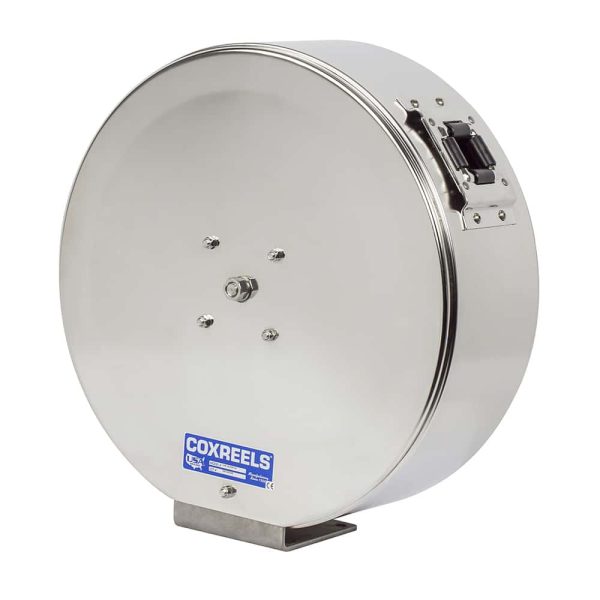

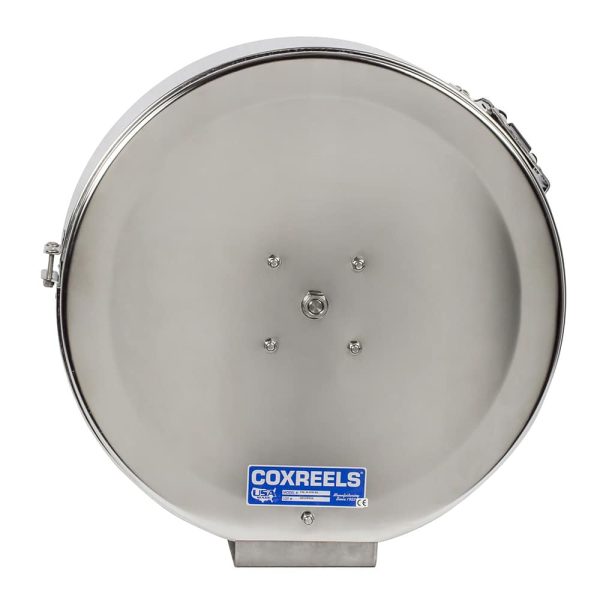

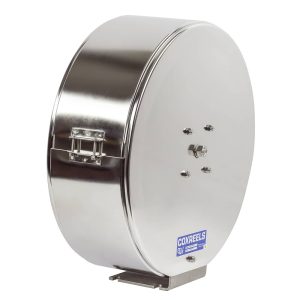

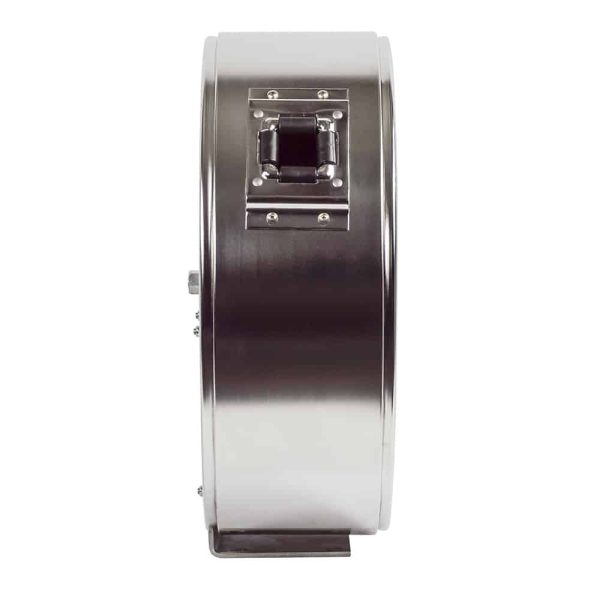

Model Shown: ENL-N-350-SS. Please refer to Overall Dimensions for the different reel sizes available.

SIGNATURE FEATURES

  • Professional grade heavy duty steel construction
  • Rolled edges & ribbed discs provide strength & safety
  • Leading 2-year manufacturer’s limited warranty
  • Made in the U.S.A. – Sold & Supported Worldwide
  • SWIVEL – Non-corrosive external fluid path with machined from high quality stainless steel 90˚ full-flow NPT swivel inlet.
  • CARTRIDGE MOTOR – Electro-polished stainless steel lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
  • CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
  • 1/4″ STEEL BASE – Sturdy single pedestal design with solid one piece stainless steel base and support post, no weld, for maximum stability.
  • ENCLOSED DESIGN- Sturdy enclosed reel for aesthetic purposes and greater hose protection. Heavy gauge steel 3-piece casing with adjustable hose roller guide.
  • OTHER FEATURES INCLUDE – Multi-position lock ratchet mechanism, and lubricated precision bearings.

MODEL I.D O.D LENGTH HOSE MAX PSI SHIP WEIGHT (LBS) OVERALL DIMENSIONS (W) (H) (L) MOUNTING PATTERN (M) (N) BASE (X) (Y)
ENL-N-335-SS 3/8″ 5/8″ 35′ No 300 46 6.88″(W) 18.88″(H) 19″(L) 4″(M) 5″(N) 6″(X) 6″(Y)
ENL-N-350-SS 3/8″ 5/8″ 50′ No 300 58 8.5″(W) 21.75″(H) 21.88″(L) 4″(M) 5″(N) 6″(X) 6″(Y)
ENL-N-425-SS 1/2″ 3/4″ 25′ No 300 63 8.5″(W) 21.75″(H) 21.88″(L) 4″(M) 5″(N) 6″(X) 6″(Y)
ENL-N-450-SS 1/2″ 3/4″ 50′ No 300 61 8.5″(W) 21.75″(H) 21.88″(L) 4″(M) 5″(N) 6″(X) 6″(Y)
ENML-N-335-SS 3/8″ 11/16″ 35′ No 3000 64 6.88″(W) 18.88″(H) 19″(L) 4″(M) 5″(N) 6″(X) 6″(Y)
ENML-N-350-SS 3/8″ 11/16″ 50′ No 3000 80 8.5″(W) 21.75″(H) 21.88″(L) 4″(M) 5″(N) 6″(X) 6″(Y)
ENML-N-425-SS 1/2″ 13/16″ 25′ No 2500 61 6.88″(W) 18.88″(H) 19″(L) 4″(M) 5″(N) 6″(X) 6″(Y)
ENML-N-450-SS 1/2″ 13/16″ 50′ No 2,500 82 8.5″(W) 21.75″(H) 21.88″(L) 4″(M) 5″(N) 6″(X) 6″(Y)

Additional information

Weight 82 lbs
Dimensions 21.88 × 8.5 × 21.75 in
Brand

Length

50 ft
ID - Inside Diameter

1/2 in
