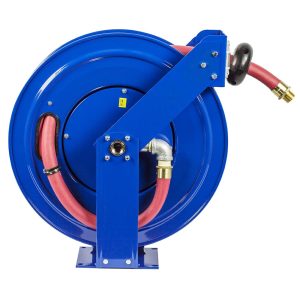

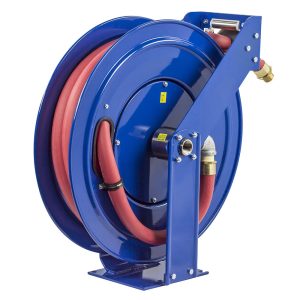

Coxreels Supreme Duty Spring Rewind Hose Reel for fuel: 3/4″ I.D., 35′ less hose, 300 PSI Model TSHFL-N-535
$701.00
Supreme Duty Spring Rewind Hose Reel for fuel: 3/4″ I.D., 35′ less hose, 300 PSI
- Description
- Additional information
Description
FEATURES
COXREELS® Fuel Dispensing Reels are designed to handle various non-aromatic fuel applications including diesel, kerosene, fuel oil and heating oil. Coxreels® professional fuel dispensing supreme-duty dual pedestal (T Series) reels are an essential component found in utility, ground support, and bulk liquid handling transport services mounted on fuel storage & dispensing systems, fuel/lube trucks, aircraft refuelers, and tank trucks. The convenient uncoiling systems with the added hose control allow the operator to efficiently handle fuel transfers.

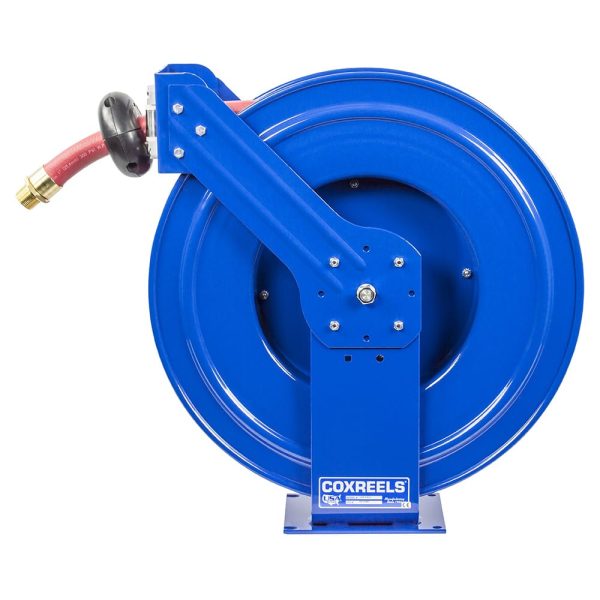

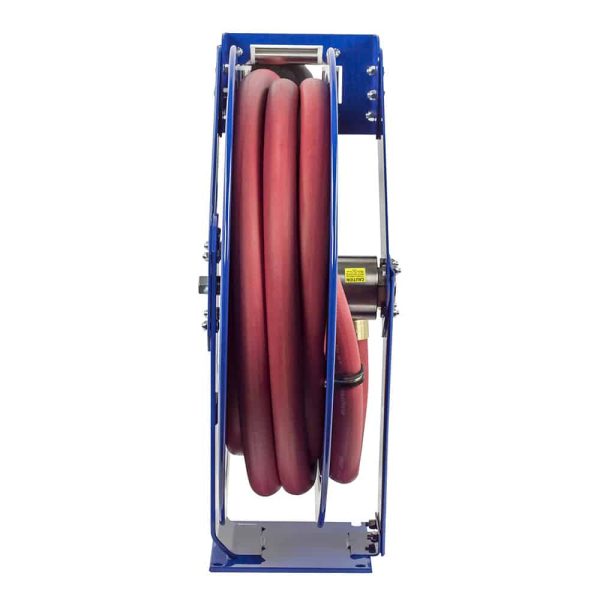

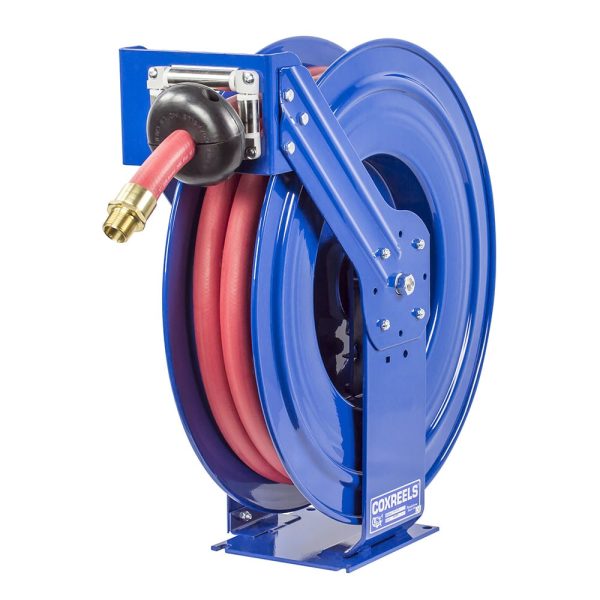

Model Shown: TSHF-N-550. Please refer to Overall Dimensions for the different reel sizes available.
SIGNATURE FEATURES
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer’s limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
- SWIVEL – Machined from solid brass 90˚ full-flow NPT swivel for fuel dispensing applications.
- CARTRIDGE MOTOR – Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS – Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4″ STEEL BASE – Sturdy dual pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™ triple axle support system.
- MULTI-POSITION GUIDE ARM – Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE – long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
| TSHF-N-535 | 3/4″ | 1 3/16″ | 35′ | Yes | 300 | 77 | 9.38″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| TSHF-N-550 | 3/4″ | 1 3/16″ | 50′ | Yes | 300 | 91 | 9.38″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| TSHF-N-575 | 3/4″ | 1 3/16″ | 75′ | Yes | 300 | 105 | 12″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| TSHF-N-635 | 1″ | 1 1/2″ | 35′ | Yes | 300 | 95 | 10″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| TSHF-N-650 | 1″ | 1 1/2″ | 50′ | Yes | 300 | 101 | 12″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| TSHFL-N-535 | 3/4″ | 1 3/16″ | 35′ | No | 300 | 67 | 9.38″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| TSHFL-N-550 | 3/4″ | 1 3/16″ | 50′ | No | 300 | 70 | 9.38″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| TSHL-N-575-BXN | 3/4″ | 1 3/16″ | 75′ | No | 300 | 73 | 12″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| TSHL-N-635-BXN | 1″ | 1 1/2″ | 35′ | No | 300 | 71 | 10″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
| TSHL-N-650-BXN | 1″ | 1 1/2″ | 50′ | No | 300 | 77 | 12″(W) 25.5″(H) 24″(L) | 7″(M) 8″(N) | 8″(X) 9″(Y) |
