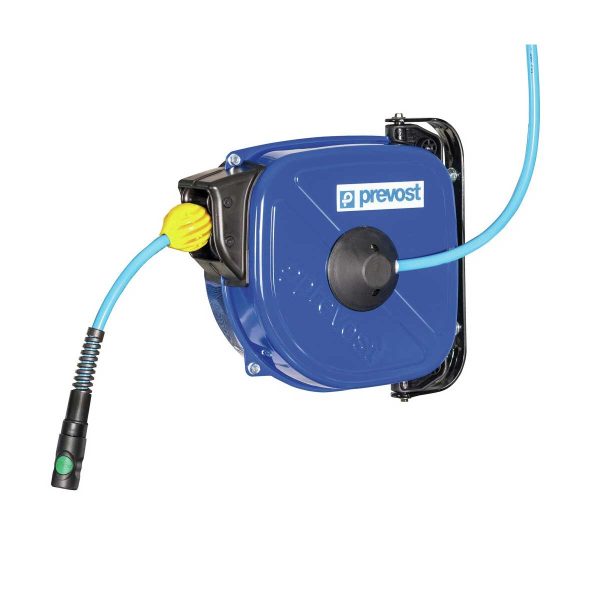

Prevost DRFb Series, Hose Reel W/ Safety Retraction, Pu/Pvc Hose Model DRFB 0815ES
Prevost DRFb Series, Hose Reel W/ Safety Retraction, Pu/Pvc Hose Model DRFB 0815ES

Prevost DRFb Series, Hose Reel W/ Safety Retraction, Pu/Pvc Hose Model DRFB 0815ES

Original price was: $386.00.Current price is: $347.40.

SKU: DRFB 0815ES Categories: , Brand:

Description

DRFB Series – Hose reel w/ safety retraction – PU/PVC hose

Hose reels for compressed air with controlled hose return system

Characteristics

  • Hot-dip galvanized molded steel housing with UV-resistant polyester-based electrostatic powder paint.
  • PU/PVC hose
  • 180° swivel mounting bracket, wall or overhead mounting
  •  Reels with controlled hose return are marked with a yellow travel limit stop
  • Air inlet: connection via 40” supply hose provided, fitted on 360 deg rotating coupling protected by a plastic cover
  • Temperature: +5 deg F to +100 deg F

Outlet Coupling

Air outlet fitted with a prevo S1 quick safety coupling, offering hose whip protection and enabling single-press depressurization and disconnection of pneumatic tools.

  • prevo S1 ISI quick safety coupling Coupling profile: ISO 6150 series B
  • prevo S1 USI quick safety coupling Coupling profile: Truflate interchange profile
  • prevo S1 ESI quick safety coupling Coupling profile: European High Flow profile
  • prevo S1 ASI quick safety coupling Coupling profile: ARO 210 profile
  • prevo S1 CSI quick safety coupling Coupling profile: ISO 6150 C profile

drfb series prevost hose reel

Reference ID (in) Length (ft) Coupler Fixed inlet (in) Flow rate (CFM) Weight (lb) A inch B inch
DRFB 0812IS 5/16″ 40′ ISI 06 5/16″ 18 13.22 13.386 11.89
DRFB 0815IS 5/16″ 50′ ISI 06 5/16″ 12 15.43 14.567 13.268
DRFB 1010IS 3/8″ 33′ ISI 06 3/8″ 29 12.57 13.386 11.89
DRFB 1012IS 3/8″ 40′ ISI 06 3/8″ 28 14.99 14.567 13.268
DRFB 0812US 5/16″ 40′ USI 06 5/16″ 18 13.22 13.386 11.89
DRFB 0815US 5/16″ 50′ USI 06 5/16″ 12 15.43 14.567 13.268
DRFB 1010US 3/8″ 33′ USI 06 3/8″ 29 12.57 13.386 11.89
DRFB 1012US 3/8″ 40′ USI 06 3/8″ 28 14.99 14.567 13.268
DRFB 0812ES 5/16″ 40′ ESI 07 5/16″ 18 13.22 13.386 11.89
DRFB 0815ES 5/16″ 50′ ESI 07 5/16″ 12 15.43 14.567 13.268
DRFB 1010ES 3/8″ 33′ ESI 07 3/8″ 32 12.57 13.386 11.89
DRFB 1012ES 3/8″ 40′ ESI 07 3/8″ 28 14.99 14.567 13.268
DRFB 0812AS 5/16″ 40′ ASI 06 5/16″ 18 13.22 13.386 11.89
DRFB 0815AS 5/16″ 50′ ASI 06 5/16″ 12 15.43 14.567 13.268
DRFB 1010AS 3/8″ 33′ ASI 06 3/8″ 28 12.57 13.386 11.89
DRFB 1012AS 3/8″ 40′ ASI 06 3/8″ 28 14.99 14.567 13.268
DRFB 0812CS 5/16″ 40′ CSI 06 5/16″ 18 13.22 13.386 11.89
DRFB 0815CS 5/16″ 50′ CSI 06 5/16″ 12 15.43 14.567 13.268
DRFB 1010CS 3/8″ 33′ CSI 06 3/8″ 29 12.57 13.386 11.89
DRFB 1012CS 3/8″ 40′ CSI 06 3/8″ 28 15 14.567 13.268

Prevost Hose reels for compressed air

Additional information

Weight 15.7 lbs
Dimensions 14.567 × 13.268 in
Brand

Length

50 ft
Fluid

ID - Inside Diameter

5/16 in
Model - Series

PSI
