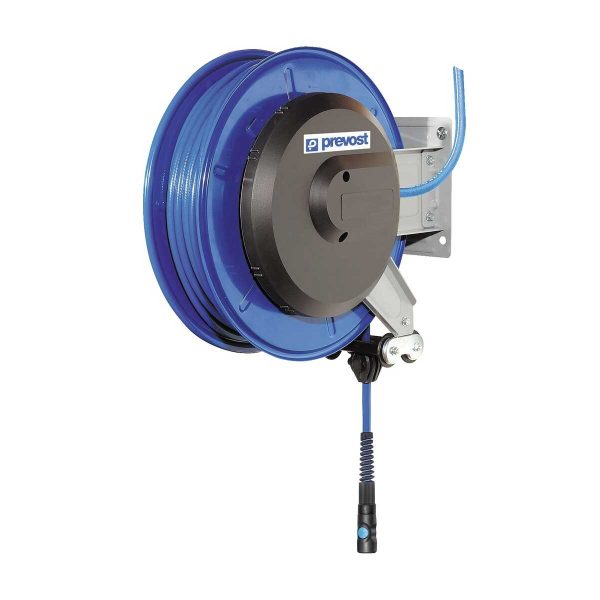

Prevost DVO Series, Medium, Polyurethane Braided Hose Model DVO 1025IS
Prevost DVO Series, Medium, Polyurethane Braided Hose Model DVO 1025IS

Prevost DVO Series, Medium, Polyurethane Braided Hose Model DVO 1025IS

Original price was: $750.00.Current price is: $675.00.

SKU: DVO 1025IS Categories: , Brand:

Description

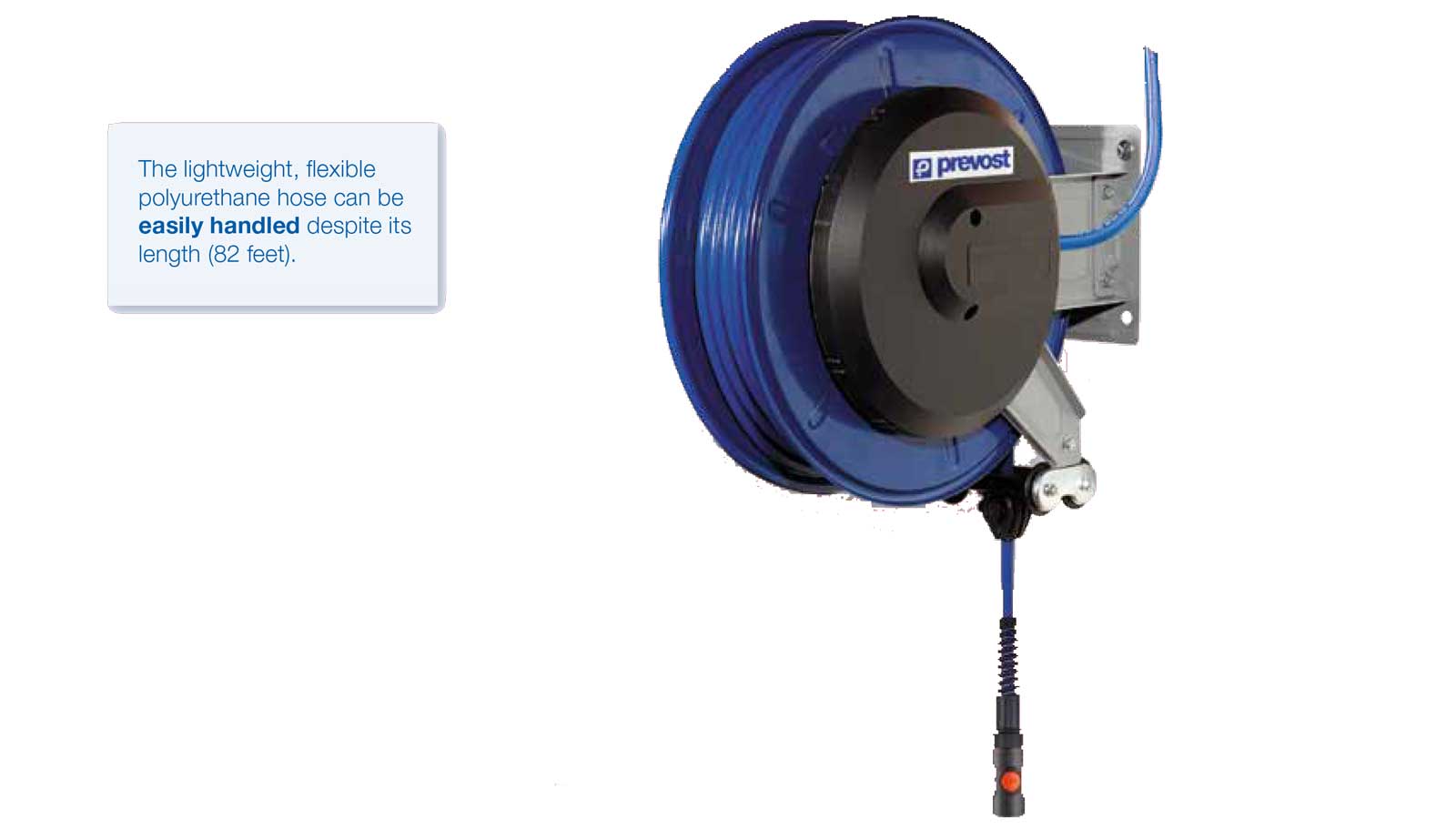

DVO series – Medium – Polyurethane braided hose

Supply to pneumatic tools in large work areas

Characteristics

  • Hot-dip galvanized molded steel housing with UV- resistant polyester-based electrostatic powder paint
  • Braided polyurethane hose
  • Three-position adjustable air outlet arm
  • Fixed bracket
  • Optional 140 deg swivel bracket, ref. DMO PIV2
  • Air inlet: connection via 40” supply hose provided, fitted on 360 deg rotating coupling protected by a plastic cover
  • Temperature: +5 deg F to +100 deg F

Outlet Coupling

Air outlet fitted with a prevo S1 quick safety coupling, offering hose whip protection and enabling single-press depressurization and disconnection of pneumatic tools.

  • prevo S1 ISI quick safety coupling Coupling profile: ISO 6150 series B
  • prevo S1 USI quick safety coupling Coupling profile: Truflate interchange profile
  • prevo S1 ESI quick safety coupling Coupling profile: European High Flow profile

prevost dvo series hose reel

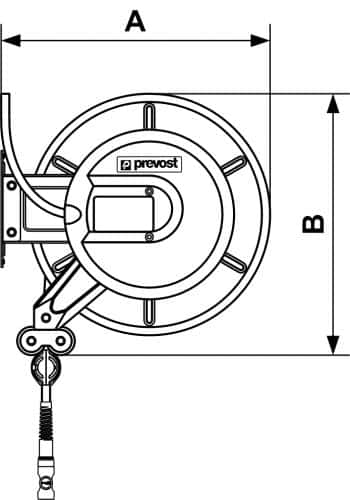

Reference ID (in) Length (ft) Coupler Flow rate (cfm) Swivel inlet Weight (lb) A inch B inch
DVO 1025IS 3/8″ 82′ ISI 06 18 3/8″ 37.5 18.11 17.598
DVO 1025US 3/8″ 82′ USI 06 18 3/8″ 37.5 18.11 17.598
DVO 1025ES 3/8″ 82′ ESI 07 18 3/8″ 37.5 18.11 17.598

Prevost Hose reels for compressed air

Additional information

Weight 50.7 lbs
Dimensions 18.11 × 17.598 in
Brand

Length

82 ft
Fluid

ID - Inside Diameter

3/8 in
Model - Series

PSI
