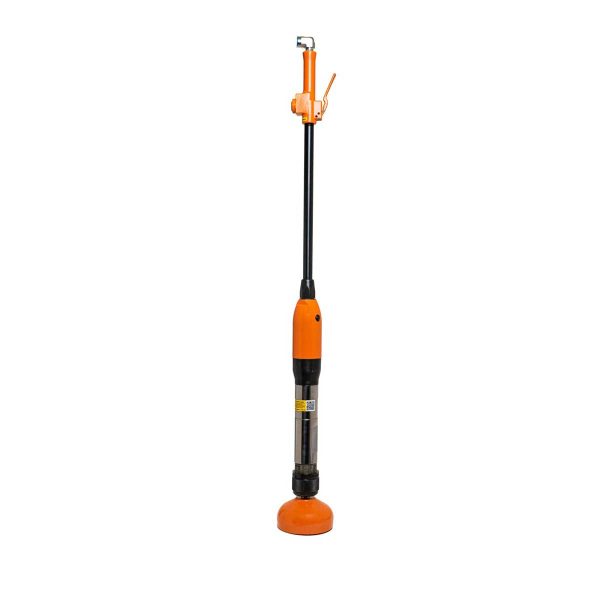

APT M131 Tamper 3 in Butt
APT M131 Tamper 3 in Butt

APT M131 Tamper 3 in Butt

Original price was: $1,802.61.Current price is: $1,208.00.

The APT Model 131 Back fill Tamper is used for soil compaction, temporary filling of holes, asphalt packing etc. Applications range from foundation and pavement repair to the installation of power or telephone poles. APT Tampers come with a choice of 3 styles of butts, a 6″ diameter (approx. 5 lbs), 3″ round butt (approx. 5 lbs) and a pole butt (approx. 5 lbs). The half-moon shaped pole butt is for compaction around a pole and the 3″ diameter butt for confined space compaction

SKU: 1280582242 Categories: , , Brand:

Description

APT M131 Backfill Tamper

The APT Model 131 Back fill Tamper is used for soil compaction, temporary filling of holes, asphalt packing etc. Applications range from foundation and pavement repair to the installation of power or telephone poles. APT Tampers come with a choice of 3 styles of butts, a 6″ diameter (approx. 5 lbs), 3″ round butt (approx. 5 lbs) and a pole butt (approx. 5 lbs). The half-moon shaped pole butt is for compaction around a pole and the 3″ diameter butt for confined space compaction

Download Manual

Model – Part # Units M131 – 5214 M131 – 5214-03 M131 – 5214-04
Butt Type in 6 3 POLE
Bore Diameter in 1 – 1/2
Stroke in 5 – 1/2
Blows per Minute bpm 1,680
CFM @ 90 psi CFM 38 – 42
Weight lbs 37
Length in 51 – 7/8
Air Inlet NPT in 1/2 FEMALE NPT

STANDARD FEATURES

  • Built-in automatic oiler
  • Flapper valve design allows dirt to pass withou stopping the tool
  • Your choice of butt style:
    • Internally reinforced malleable iron butt 6″ Diameter
    • 3″ Diameter (solid) butt
    •  Pole (half-moon)

Air Pressure

The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification charts shown for each tool in this catalog.

Hose Size

APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool.

Connecting Hoses

Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.

Additional information

Weight 37 lbs
Dimensions 51.875 in
