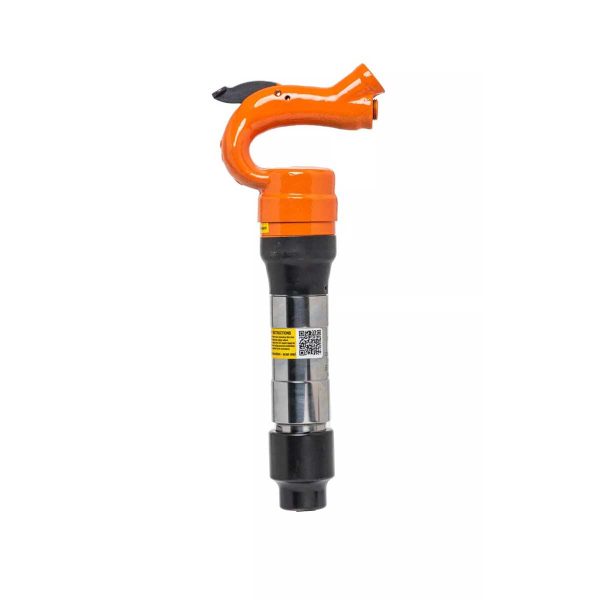

APT M652 Chipping Hammer 2H
APT M652 Chipping Hammer 2H

APT M652 Chipping Hammer 2H

Original price was: $1,095.55.Current price is: $735.00.

The APT Chipping Hammers are used for work such as scaling, chiseling, removing concrete build-up from the inside of concrete mixers, light concrete demolition, cement finishing and form stripping.

SKU: 1280585225 Categories: , , Brand:

Description

APT M652 / M653 / M654 Chipping Hammer

The APT Chipping Hammers are used for work such as scaling, chiseling, removing concrete build-up from the inside of concrete mixers, light concrete demolition, cement finishing and form stripping.

Download Manual

Part # Units 5298 5299 5300 5301 5302 5303
Nose Bushing .680 Round .580 Hex .680 Round .580 Hex .680 Round .580 Hex
Bore Diameter in 1 – 1/8 1 – 1/8 1 – 1/8
Stroke in 2 3 4
Blows per Minute bpm 2,100 1,650 1,375
CFM @ 90 psi CFM 32 – 34 33 – 35 34 – 36
Weight lbs 12 14 16
Length in 13 – 1/4 15 – 1/4 16
Air Inlet NPT 7/8 – 24 FEMALE NPT

STANDARD FEATURES

  • Flapper valve design allows dirt to pass withou stopping the tool
  • Traditional pistol grip handle made from drop forged steel
  • Deep case hardened alloy steel cylinder
  • Replaceable nose bushing
  • Adjustable exhaust deflector
  • Available in 2″, 3″, and 4″ strokes
  • Tools come standard with:
    • Standard oval collar retainer (Part # 7022)
    • Locking Spring (Part # 1942)
    • 6 ft Whip hose assembly (Part # 18832)
  • Optional quick change retainer systems available are:
    •  # 5550 Ball – type Retainer with Locking Spring
    • # 18290 Ball – type, Bolt-on Retainer

Air Pressure

The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification charts shown for each tool in this catalog.

Hose Size

APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool.

Connecting Hoses

Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.

Additional information

Weight 12 lbs
Dimensions 13.25 in
Brand

Model - Series
