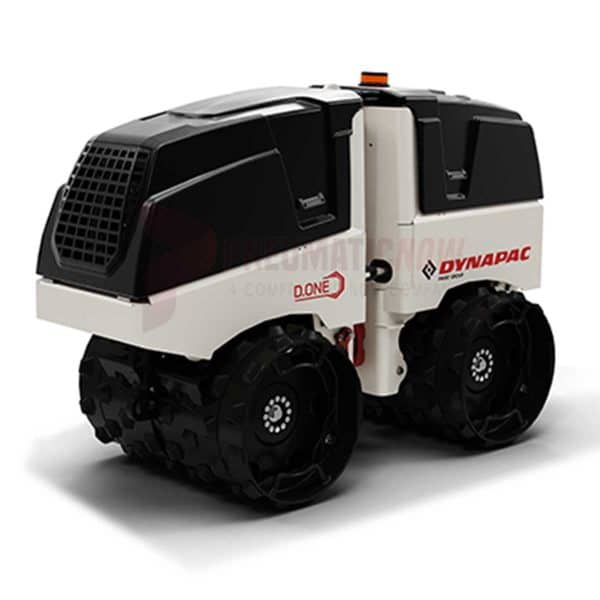

Dynapac D.ONE Utility Roller

Description

Dynapac D.ONE Utility Roller: Remote-Controlled Trench Compaction

When compacting cohesive soils like clay and silt in deep, narrow trenches, contractor safety and machine adaptability are the highest priorities. The Dynapac D.ONE Articulated Trench Roller is engineered specifically for these harsh, high-risk environments.

Utilizing advanced radio remote-control technology and heavy-duty padfoot (sheep foot) drums, the D.ONE delivers massive compaction force directly to the trench floor while keeping the operator safely above the excavation zone.

Engineered for Safety and Absolute Control

Trench cave-ins are a leading cause of job site injuries. The D.ONE eliminates this risk by completely removing the operator from the hazard zone.

Radio Remote Control

The D.ONE operates via a highly responsive, heavy-duty radio remote control. Unlike infrared remotes that require a strict line of sight and can fail in direct sunlight or around corners, the radio remote ensures a stable, continuous connection. The remote also features solar panels to extend battery life during long shifts on sunny job sites.

Active Safety Systems

If the operator steps too close to the machine (within roughly 6 feet), the D.ONE’s near-field safety perimeter automatically halts the roller to prevent crushing accidents. Conversely, if the operator walks too far away and the signal drops, the machine instantly stops travel and vibration.

Unmatched Versatility and Performance

The D.ONE isn’t just safe; it is built to maximize productivity in the muddiest, most difficult soil conditions.

Two Machines in One: Drum Extensions

Trench widths constantly change, and bringing multiple rollers to a site is inefficient. The D.ONE features standard removable drum extensions. In under 10 minutes, your crew can bolt on or remove the extensions, changing the working width from a narrow 24 inches (610 mm) to a highly productive 33.5 inches (850 mm).

Padfoot Drums and Dual Amplitude

Cohesive soils require “kneading” force, not just weight. The specialized padfoot drums penetrate clay and silt deeply, breaking up soil clumps and squeezing out air voids. The roller also features two amplitude settings: high amplitude for thick lifts of soil, and low amplitude for working safely near sensitive underground utility pipes.

Automatic Vibration Control (AVC)

A common problem with trench rollers is “digging in” when the machine stops moving but keeps vibrating. The D.ONE’s intelligent AVC system automatically stops the vibration the moment the operator stops the roller’s travel, protecting both the soil grade and the machine’s drive motors.

At a Glance: Dynapac D.ONE Specifications

Powered by a reliable, liquid-cooled Kohler diesel engine, the D.ONE provides the heavy-duty torque required to climb out of steep, muddy trenches.
