Dynapac DRQ Series Reversible Plates

Description

Dynapac DRQ Series Reversible Plates: Steady, Powerful, and Precise

When your job site demands deep compaction across larger areas, but maneuverability remains critical, the Dynapac DRQ Series Reversible Plate Compactors are the ultimate solution. Engineered for both heavy traction and precise handling, these machines easily navigate trenches, tight corners, and wide-open sub-bases.

Unlike single-direction plates, the DRQ series allows operators to seamlessly shift from forward to reverse, providing “on-the-spot” compaction for maximum density without needing room to turn around. Combined with their rugged, hard-shell design, the DRQ line thrives in extreme conditions while keeping maintenance simple.

Engineered for Safety and Operator Control

A powerful machine is only as good as the operator’s ability to control it safely. Dynapac loaded the DRQ series with features that minimize fatigue and maximize site safety:

Advanced Vibration Isolation

Operators working long shifts are protected by Dynapac’s vibration-isolated control handles. By dramatically reducing Hand-Arm Vibration (HAV) values, your crew can maintain peak productivity all day without suffering from fatigue or exceeding occupational exposure limits.

Reverse Drive Protection

Working in trenches and confined spaces poses unique risks. The DRQ series features built-in reverse drive protection. If the handle is released or pressed too far back while moving in reverse, the machine automatically stops to prevent the operator from being pinned or run over, ensuring maximum safety in tight environments.

Ergonomic Precision Handling

The control lever is height-adjustable to accommodate any operator, and it locks securely into both working and transport positions. This gives the operator absolute control over the machine’s speed and direction, making traction and compaction effortless.

Built Tough: Durability That Lowers Downtime

Every DRQ model is built around a highly wear-resistant base plate that shrugs off abrasive granular soils, gravel, and heavy rock fill.

To protect the engine and internal components from the chaos of the job site, Dynapac enclosed the machines in an all-around protective hood. This rugged hard shell guards against impacts and falling debris, while the fully enclosed V-belt blocks out dust and dirt to maximize the belt’s service life. Furthermore, a standard automatic low-oil shutdown protects your Honda power plant from catastrophic failure if maintenance is overlooked.

Dynapac DRQ Series Model Breakdown

Whether you are compacting a residential driveway sub-base or tackling heavy municipal trench work, there is a DRQ model perfectly sized for the job.

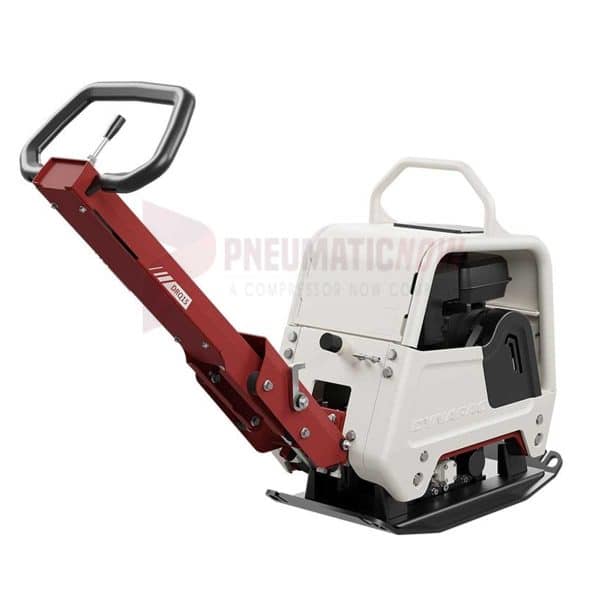

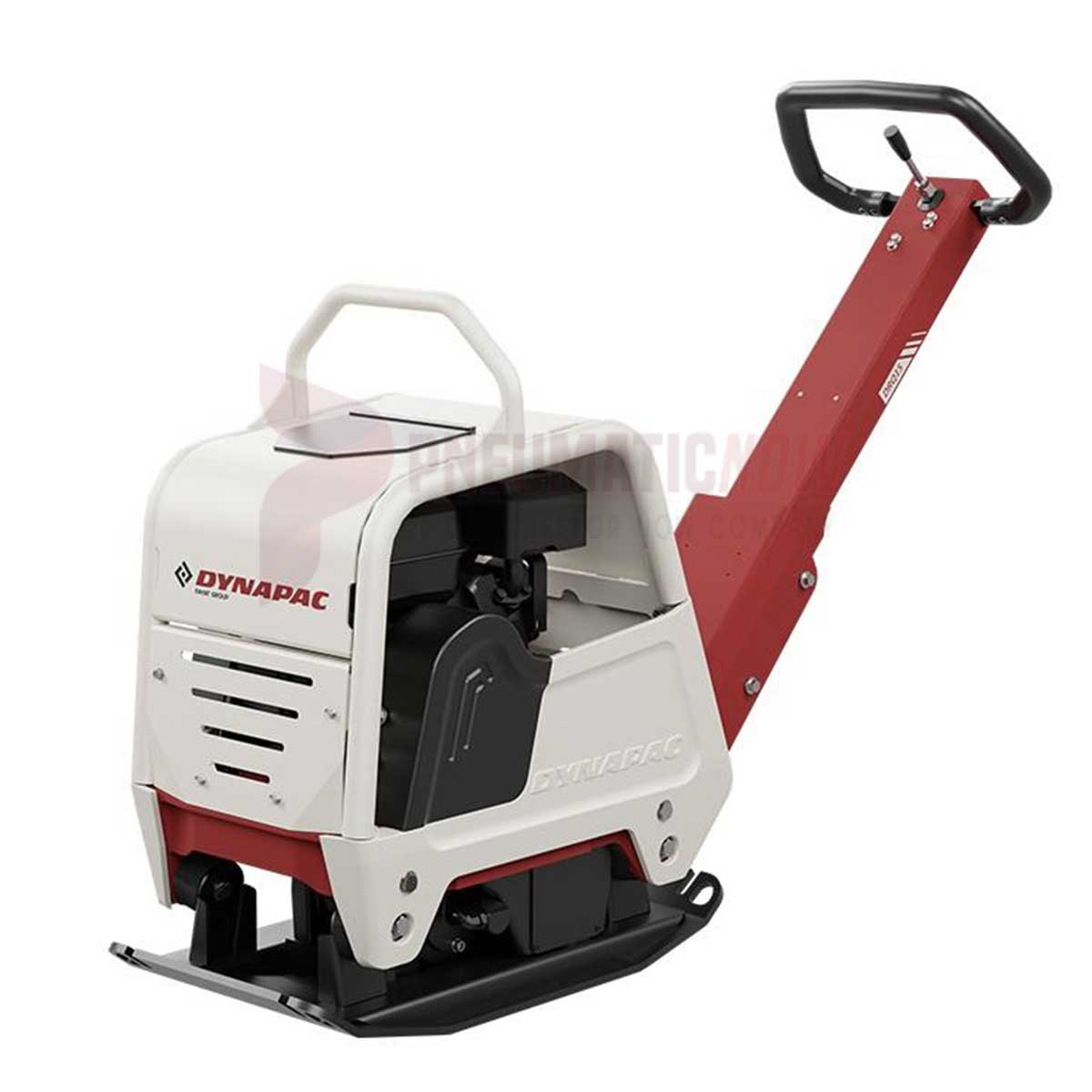

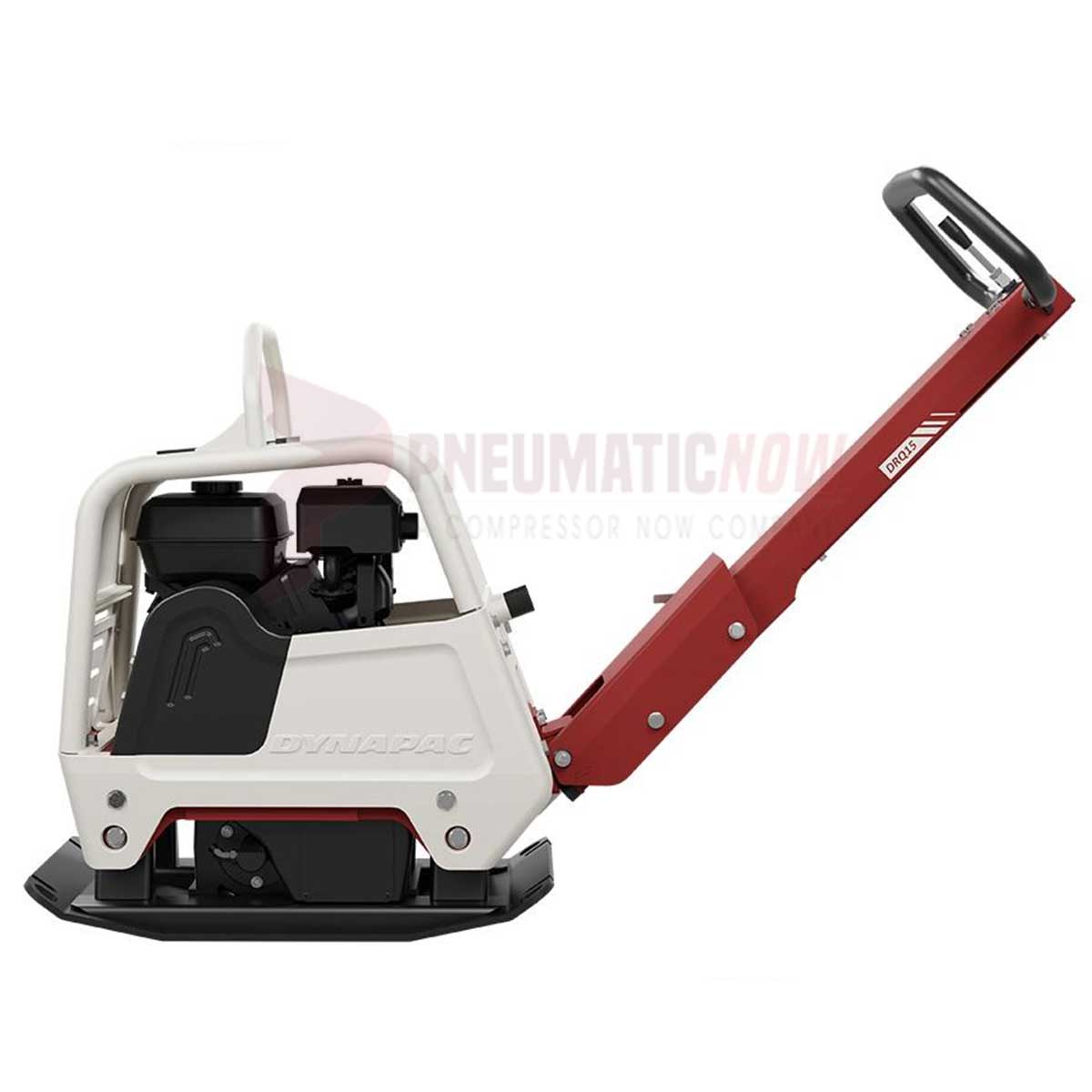

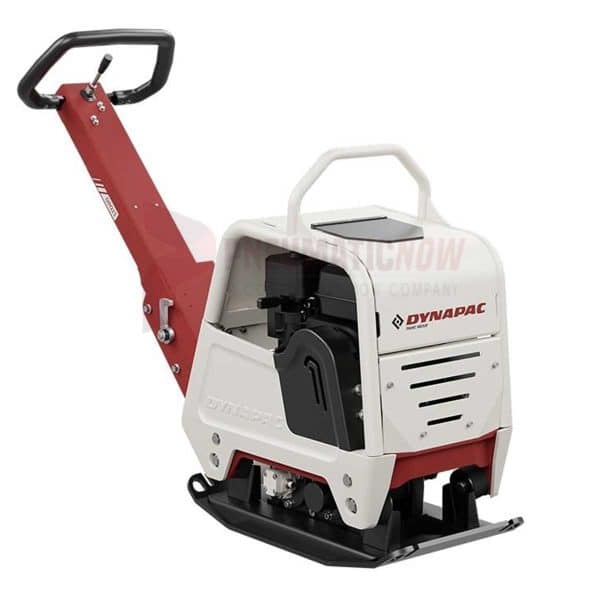

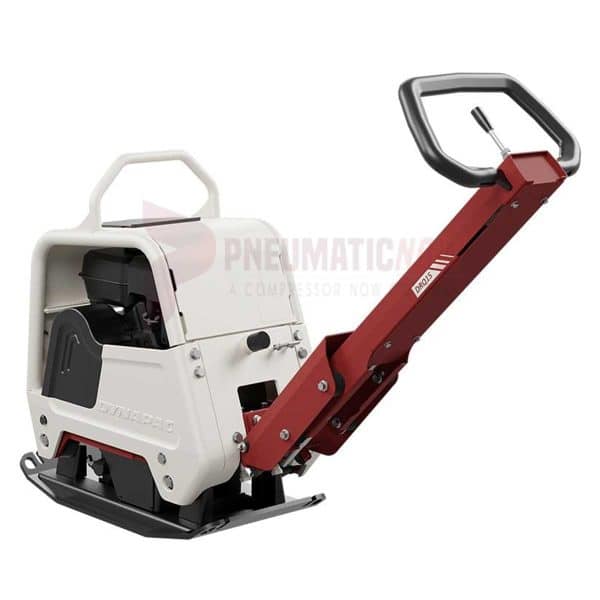

DRQ15: The Agile Performer

The lightest in the DRQ lineup, offering exceptional maneuverability for pipe trenches and landscaping without sacrificing the benefits of a reversible drive.

• Operating Weight: ~308 lbs (140 kg)
• Engine: Honda GX160 Air-Cooled Gasoline
• Centrifugal Force: 5,620 lbf (25 kN)
• Max Working Speed: 82 ft/min (25 m/min)

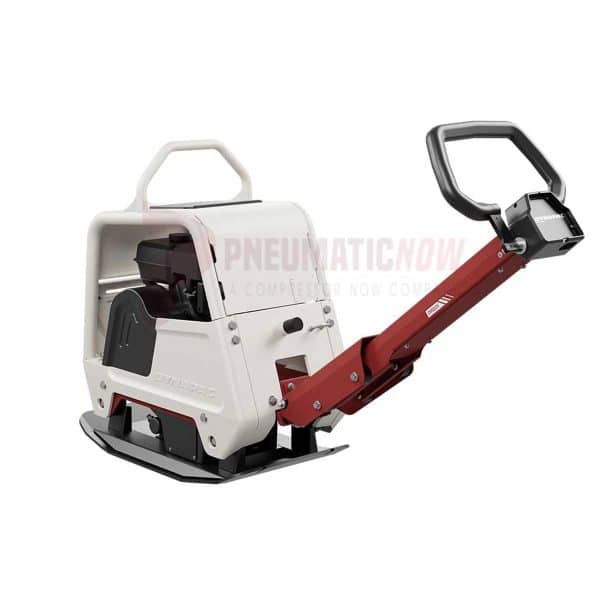

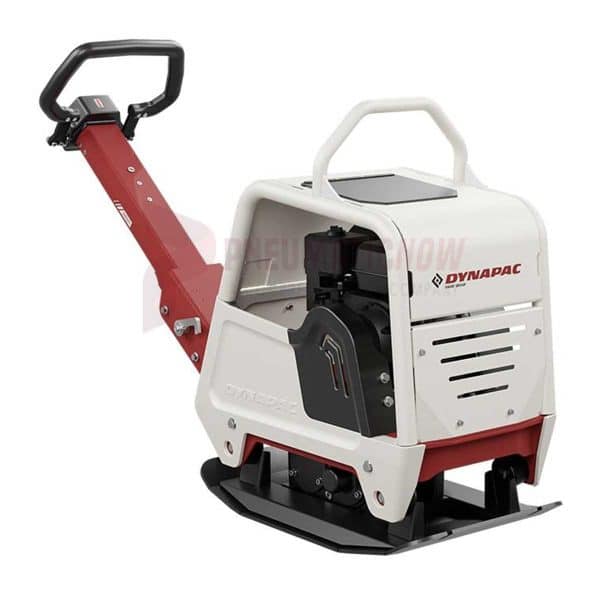

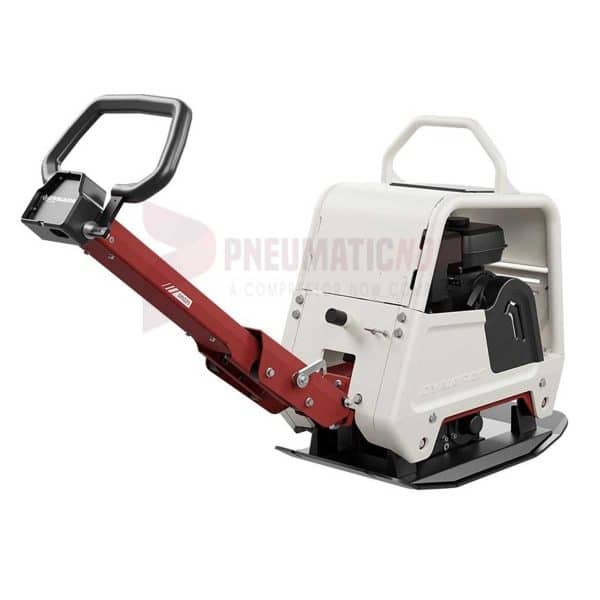

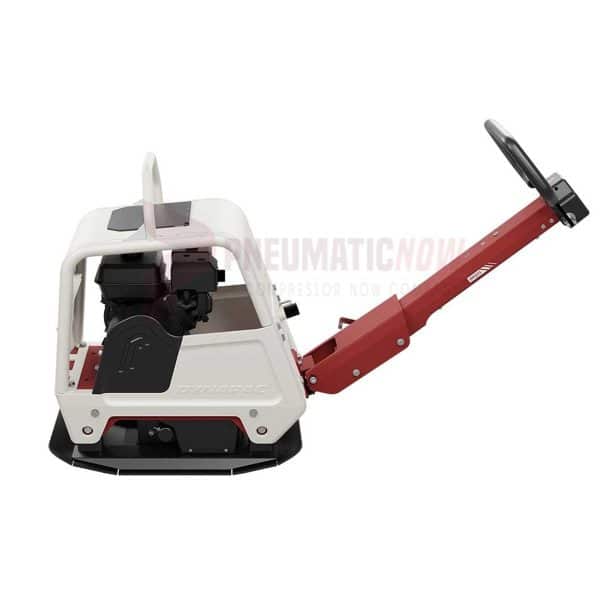

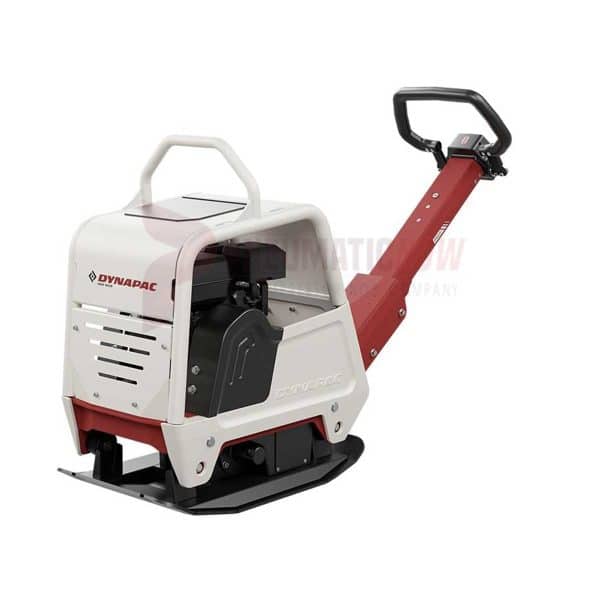

DRQ25: The Mid-Size Workhorse

Ideal for medium-to-large areas where higher compaction forces are required. This model hits the sweet spot between footprint and raw power.

• Operating Weight: 452 lbs (205 kg)
• Plate Width: 24 inches
• Engine: Honda GX160 Air-Cooled Gasoline
• Centrifugal Force: 7,868 lbf (35 kN)
• Max Working Speed: 89 ft/min (27 m/min)

DRQ30: The Heavy Hitter

When deep compaction depth is non-negotiable, the DRQ30 steps up. Upgraded with a more powerful engine, this unit delivers massive force for heavy construction pre-compactions and deep trenches.

• Operating Weight: 617 lbs (280 kg)
• Plate Width: 22 inches (550 mm)
• Engine: Honda GX270 Air-Cooled Gasoline
• Centrifugal Force: 8,992 lbf (40 kN)
• Max Working Speed: 82 ft/min (25 m/min)

DRQ35: The High-Output Gas Heavyweight

When contractors need the sheer compaction force of a massive plate but want to stick to the simplicity and easy cold-weather starting of a gasoline engine, the DRQ35 is the answer. It is a dominant force in heavy road construction and deep trench backfilling.

• Operating Weight: 743 lbs (337 kg)
• Plate Width: 23.6 inches (600 mm)
• Engine: Honda GX390 Air-Cooled Gasoline (8.6 hp)
• Centrifugal Force: 12,365 lbf (55 kN)
• Max Working Speed: 82 ft/min (25 m/min)

DRQ50D: The Diesel Trench Master

The absolute powerhouse of the DRQ lineup. The ‘D’ stands for Diesel, and this 1,000-pound machine is built for commercial rental fleets, heavy earthwork, and job sites with strict “diesel-only” fuel policies. It delivers steamroller-level compaction in a footprint that can still navigate tight trenches.

• Operating Weight: 1,000 lbs (454 kg)
• Plate Width: 27.5 inches (700 mm)
• Engine: Hatz 1B50 Air-Cooled Diesel
• Centrifugal Force: 14,837 lbf (66 kN)
• Max Working Speed: 82 ft/min (25 m/min)
•
